7. Print Data

The Print Data function allows printing out diagnostic data

recorded by the scan tool or customized test reports.

 To print out retrieved data, you need the following tools:

AutoLink



AL519 scan tool

A PC or laptop with USB ports

A USB cable

1) Install Maxi-LinkII applications through the included CD, or

downloading the applications from our website:

www.auteltech.com or our distributors‟ site.

2) Connect the scanner to computer with the USB cable supplied.

3) Run Maxi-LinkII Tool Kit in your computer.

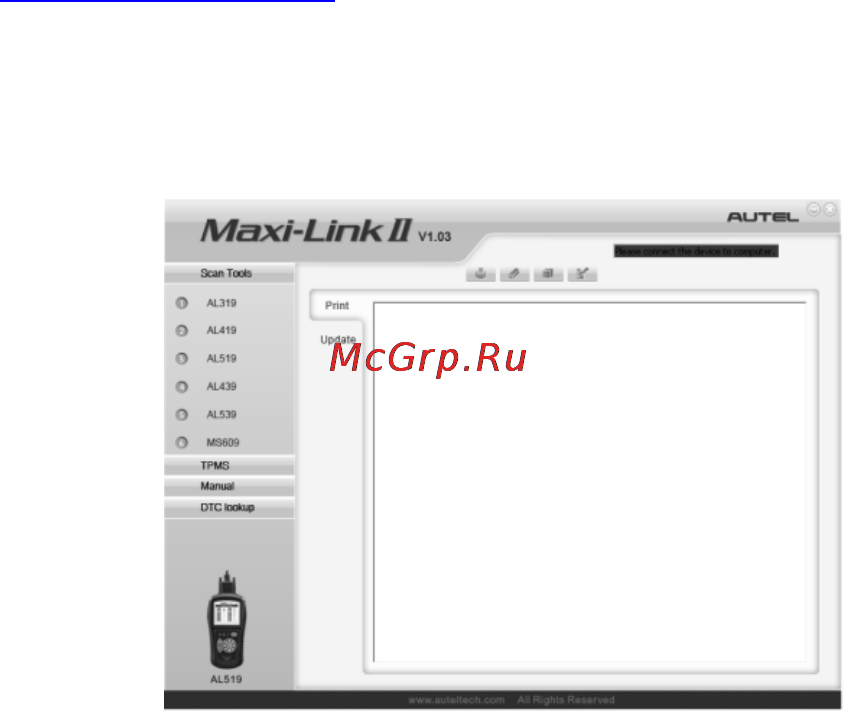

Figure 7.1

4) Use the UP/DOWN scroll button to select Print Data from

Main Menu in the scan tool, and press the OK button. (Figure

3.1)

5) Use the UP/DOWN scroll button to select the desired item to

print from Print Data menu.
