Autel Autolink AL519 [17/73] Configure monitors

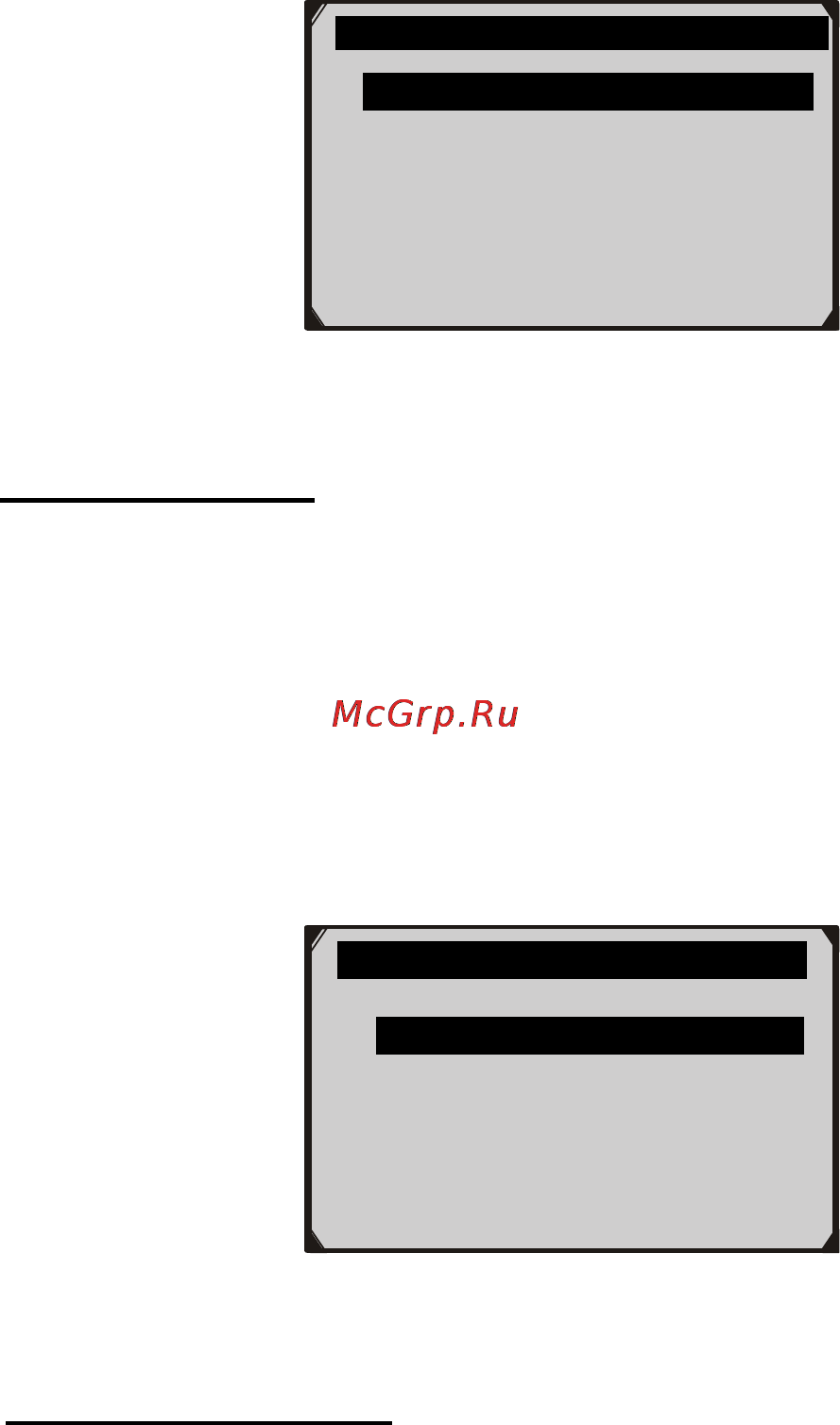

Figure 3.3

Language Setup

 English is the default language.

1) From System Setup screen, use the UP/DOWN scroll button to

select Language, and press the OK button.

2) Use the UP/DOWN scroll button to select the desired language

and press the OK button to save your selection and return to

previous screen. We provide three language options currently.

Figure 3.4

Configure Monitors

From System Setup screen, use the UP/DOWN scroll button to select

Configure Monitors, and press the OK button. (Figure 3.5 )

System Setup 1/7

Language

Configure Monitors ?

Unit of Measure

Key Beep Set

Status Beep Set

Tool Self-test

Language 1/3

 English

 Français ?

 Español
