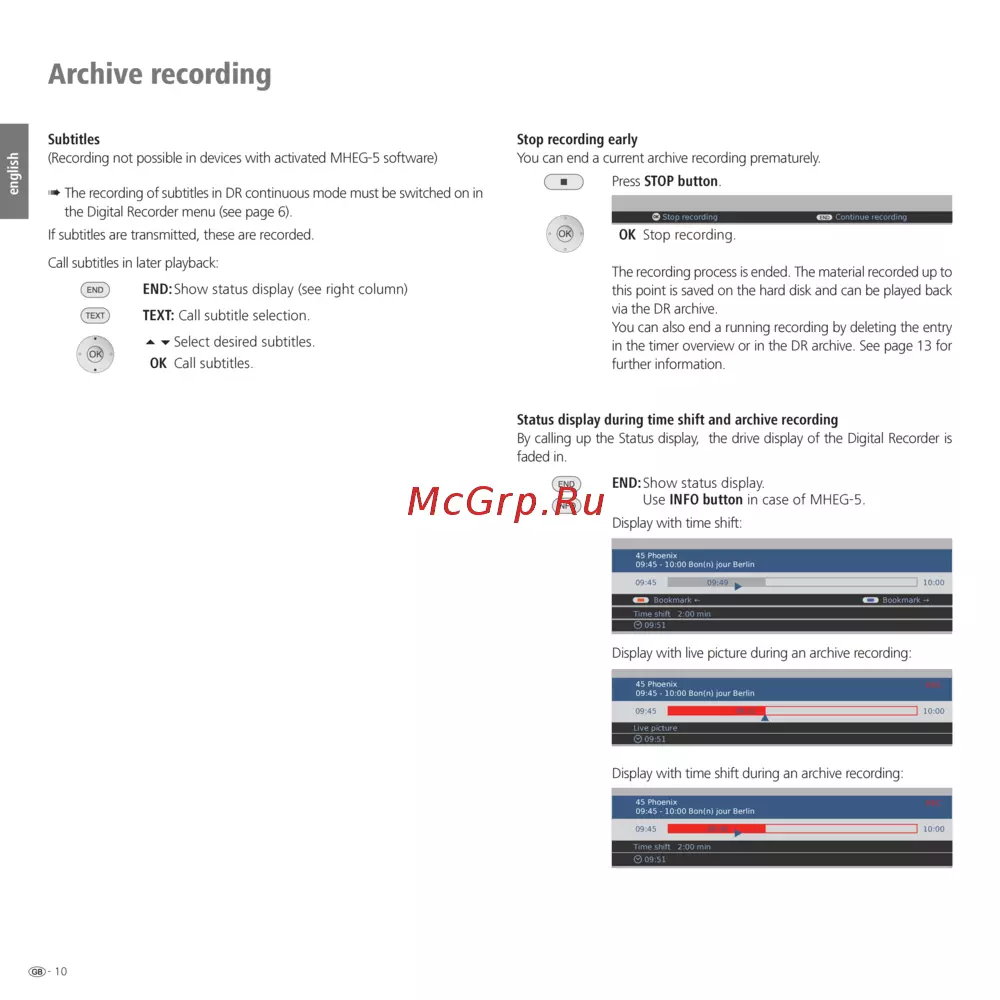

Loewe Digital Recorder + [10/22] Archive recording
![Loewe Digital Recorder + [10/22] Archive recording](/views2/1020526/page10/bga.png)
- 10
english
Archive recording
Subtitles
(Recording not possible in devices with activated MHEG-5 software)
➠ The recording of subtitles in DR continuous mode must be switched on in
the Digital Recorder menu (see page 6).
If subtitles are transmitted, these are recorded.
Call subtitles in later playback:
END: Show status display (see right column)
TEXT: Call subtitle selection.
56 Select desired subtitles.
OK Call subtitles.
Stop recording early
You can end a current archive recording prematurely.
Press STOP button.
OK Stop recording.
The recording process is ended. The material recorded up to
this point is saved on the hard disk and can be played back
via the DR archive.
You can also end a running recording by deleting the entry
in the timer overview or in the DR archive. See page 13 for
further information.
Status display during time shift and archive recording
By calling up the Status display, the drive display of the Digital Recorder is
faded in.
END: Show status display.
Use INFO button in case of MHEG-5.
Display with time shift:
Display with live picture during an archive recording:
Display with time shift during an archive recording:
09:45 10:00
Time shift 2:00 min
09:51
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
09:49
REC
09:45 10:00
Live picture
REC
09:51
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
09:51
09:45 10:00
Bookmark ← Bookmark →
Time shift 2:00 min
09:51
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
09:49
OK
END
Stop recording Continue recording
