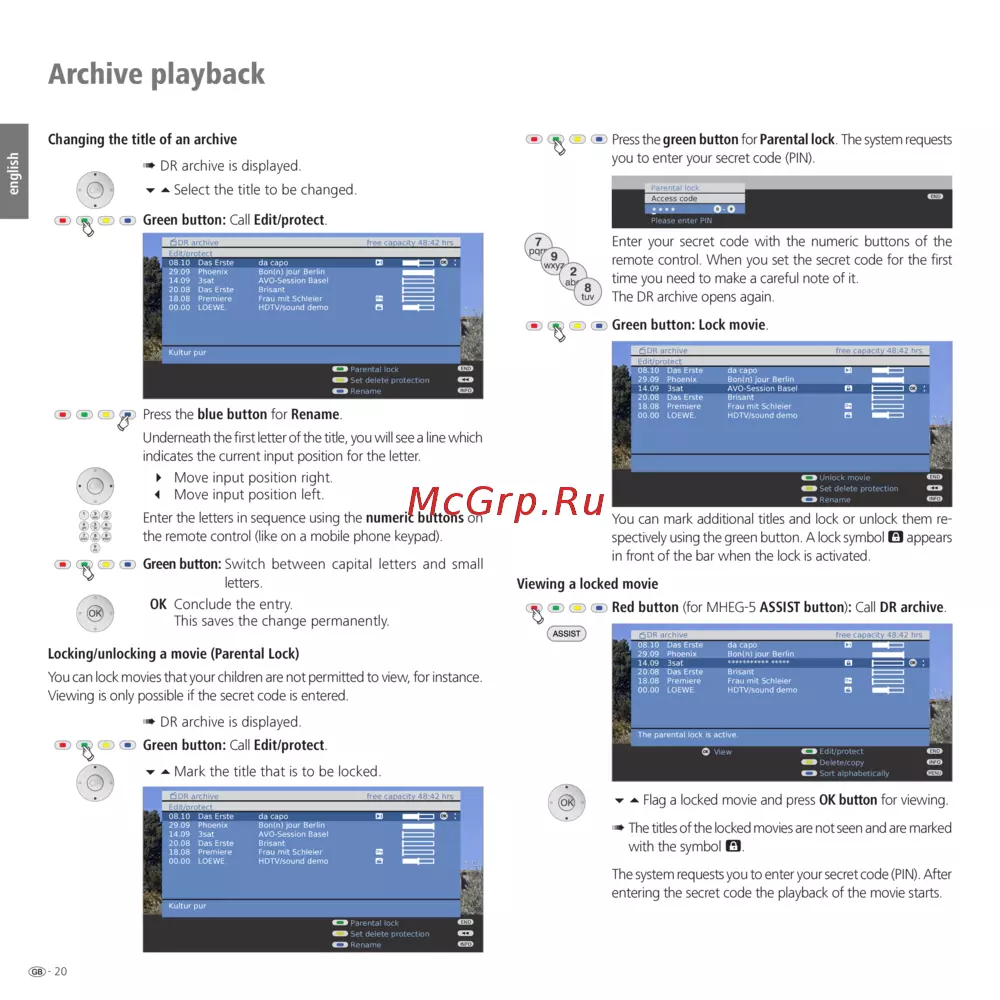

- 20
english
Press the green button for Parental lock. The system requests
you to enter your secret code (PIN).
Enter your secret code with the numeric buttons of the
remote control. When you set the secret code for the rst
time you need to make a careful note of it.
The DR archive opens again.
Green button: Lock movie.
You can mark additional titles and lock or unlock them re-
spectively using the green button. A lock symbol appears
in front of the bar when the lock is activated.
Viewing a locked movie
Red button (for MHEG-5 ASSIST button): Call DR archive.
65Flag a locked movie and press OK button for viewing.
➠ The titles of the locked movies are not seen and are marked
with the symbol .
The system requests you to enter your secret code (PIN). After
entering the secret code the playback of the movie starts.
END
INFO
DR archive free capacity 48:42 hrs
Edit/protect
08.10 Das Erste da capo
29.09 Phoenix Bon(n) jour Berlin
14.09 3sat AVO-Session Basel
20.08 Das Erste Brisant
18.08 Premiere Frau mit Schleier
00.00 LOEWE. HDTV/sound demo
Unlock movie
Set delete protection
Rename
OK
END
INFO
MENU
DR archive free capacity 48:42 hrs
08.10 Das Erste da capo
29.09 Phoenix Bon(n) jour Berlin
14.09 3sat *********** *****
20.08 Das Erste Brisant
18.08 Premiere Frau mit Schleier
00.00 LOEWE. HDTV/sound demo
The parental lock is active.
Edit/protect
Delete/copy
Sort alphabetically
View
OK
OK
END
Access code
Parental lock
Please enter PIN
∗∗∗∗ -
0
9
Changing the title of an archive
➠ DR archive is displayed.
65Select the title to be changed.
Green button: Call Edit/protect.
Press the blue button for Rename.
Underneath the rst letter of the title, you will see a line which
indicates the current input position for the letter.
4Move input position right.
3Move input position left.
Enter the letters in sequence using the numeric buttons on
the remote control (like on a mobile phone keypad).
Green button: Switch between capital letters and small
letters.
OK Conclude the entry.
This saves the change permanently.
Locking/unlocking a movie (Parental Lock)
You can lock movies that your children are not permitted to view, for instance.
Viewing is only possible if the secret code is entered.
➠ DR archive is displayed.
Green button: Call Edit/protect.
65Mark the title that is to be locked.
END
INFO
DR archive free capacity 48:42 hrs
Edit/protect
08.10 Das Erste da capo
29.09 Phoenix Bon(n) jour Berlin
14.09 3sat AVO-Session Basel
20.08 Das Erste Brisant
18.08 Premiere Frau mit Schleier
00.00 LOEWE. HDTV/sound demo
Kultur pur
Parental lock
Set delete protection
Rename
OK
END
INFO
DR archive free capacity 48:42 hrs
Edit/protect
08.10 Das Erste da capo
29.09 Phoenix Bon(n) jour Berlin
14.09 3sat AVO-Session Basel
20.08 Das Erste Brisant
18.08 Premiere Frau mit Schleier
00.00 LOEWE. HDTV/sound demo
Kultur pur
Parental lock
Set delete protection
Rename
OK
Archive playback
