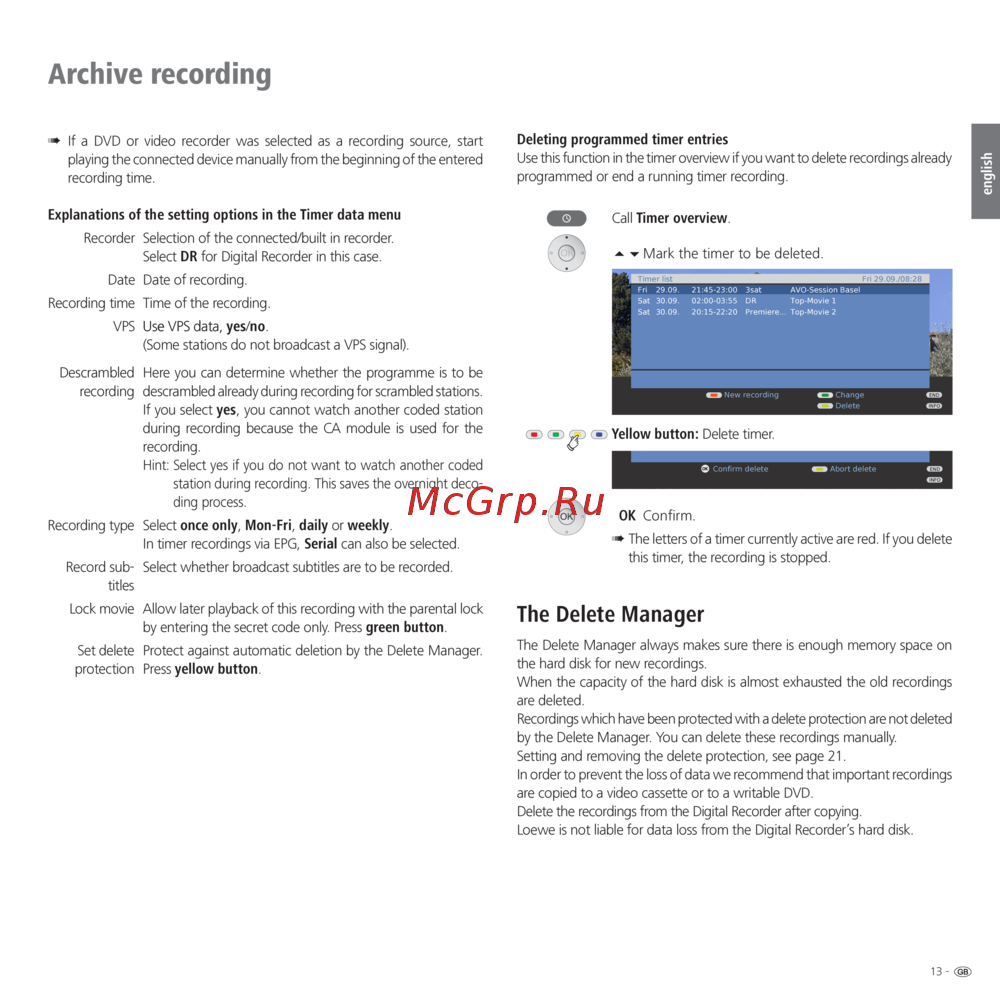

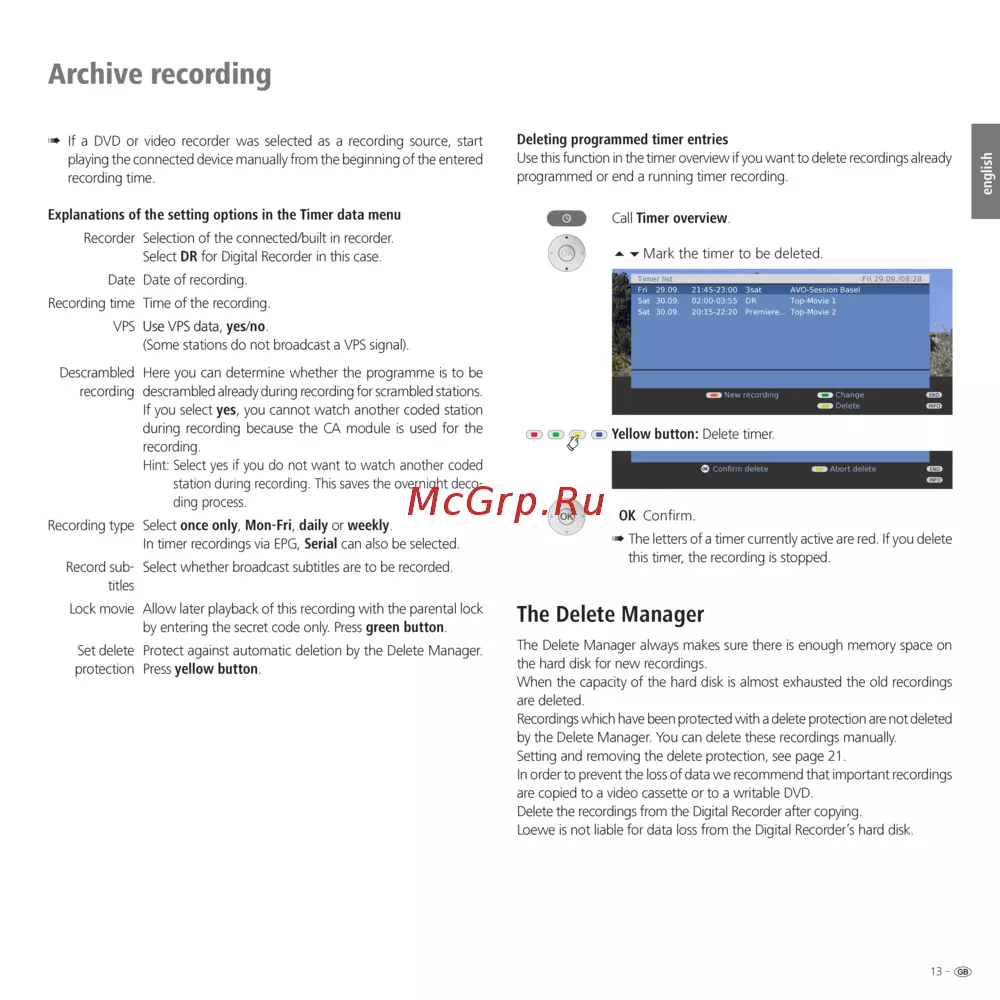

Loewe Digital Recorder + [13/22] Archive recording
![Loewe Digital Recorder + [13/22] Archive recording](/views2/1020526/page13/bgd.png)
13 -
english
Archive recording
➠ If a DVD or video recorder was selected as a recording source, start
playing the connected device manually from the beginning of the entered
recording time.
Explanations of the setting options in the Timer data menu
Recorder Selection of the connected/built in recorder.
Select DR for Digital Recorder in this case.
Date Date of recording.
Recording time Time of the recording.
VPS Use VPS data,Use VPS data, yes/no.
(Some stations do not broadcast a VPS signal).
Deleting programmed timer entries
Use this function in the timer overview if you want to delete recordings already
programmed or end a running timer recording.
Call Timer overview.
56Mark the timer to be deleted.
Yellow button: Delete timer.
OK Confirm.
➠ The letters of a timer currently active are red. If you delete
this timer, the recording is stopped.
The Delete Manager
The Delete Manager always makes sure there is enough memory space on
the hard disk for new recordings.
When the capacity of the hard disk is almost exhausted the old recordings
are deleted.
Recordings which have been protected with a delete protection are not deleted
by the Delete Manager. You can delete these recordings manually.
Setting and removing the delete protection, see page 21.
In order to prevent the loss of data we recommend that important recordings
are copied to a video cassette or to a writable DVD.
Delete the recordings from the Digital Recorder after copying.
Loewe is not liable for data loss from the Digital Recorder’s hard disk.
END
INFO
Timer list Fri 29.09./08:28
Fri 29.09. 21:45-23:00 3sat AVO-Session Basel
Sat 30.09. 02:00-03:55 DR Top-Movie 1
Sat 30.09. 20:15-22:20 Premiere... Top-Movie 2
Change
Delete
New recording
END
INFO
Timerübersicht Fr 29.09./18:24
Fr 29.09. 21:45-23:00 3sat AVO-Session Basel
Sa 30.09. 16:00-16:45 SAT.1 echt wahr!
So 01.10. 17:15-17:45 Das Erste Brisant
Abort delete
OK
Confirm delete
OK
Here you can determine whether the programme is to be
descrambled already during recording for scrambled stations.
If you select yes, you cannot watch another coded station
during recording because the CA module is used for the
recording.
Hint: Select yes if you do not want to watch another coded
station during recording. This saves the overnight deco-
ding process.
Select once only, Mon-Fri, daily or weekly.
In timer recordings via EPG, Serial can also be selected.
Select whether broadcast subtitles are to be recorded.
Allow later playback of this recording with the parental lock
by entering the secret code only. Press green button.
Protect against automatic deletion by the Delete Manager.
Press yellow button.
Descrambled
recording
Recording type
Record sub-
titles
Lock movie
Set delete
protection
