Loewe Digital Recorder + [16/22] Archive playback
![Loewe Digital Recorder + [16/22] Archive playback](/views2/1020526/page16/bg10.png)
- 16
english

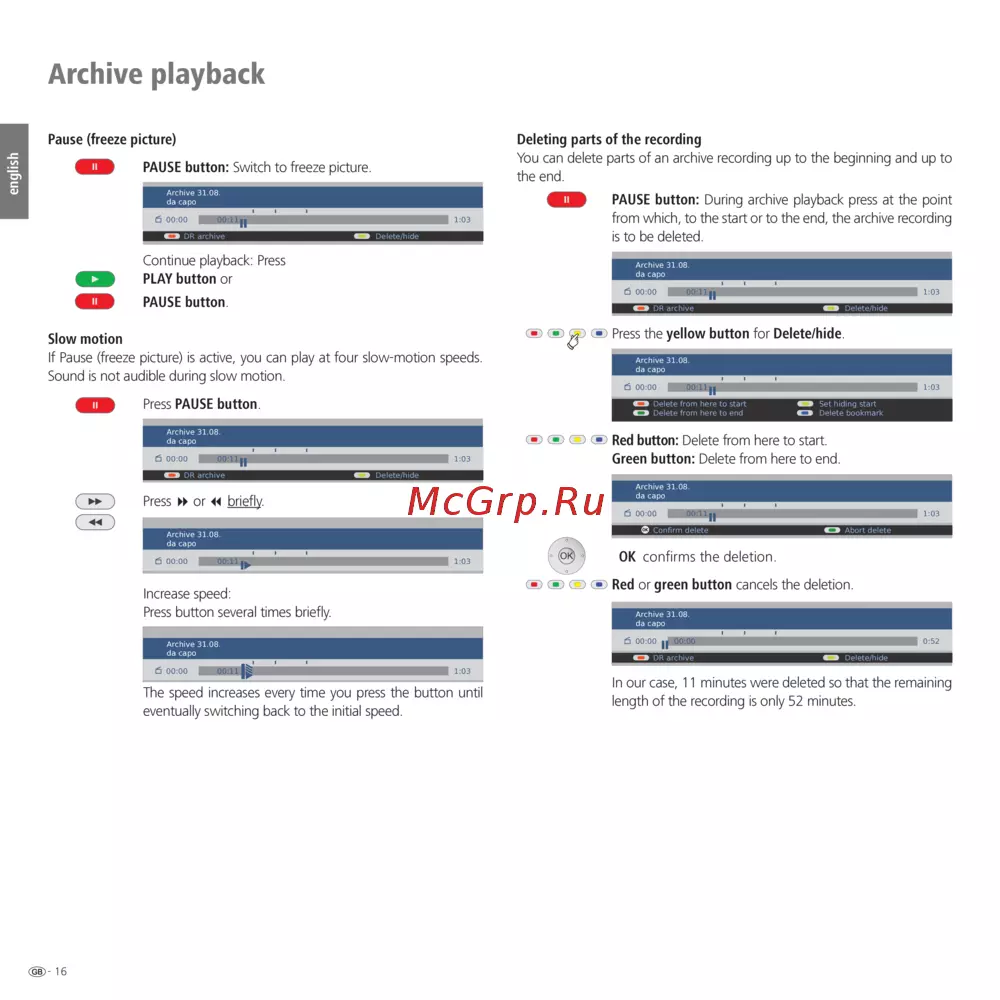

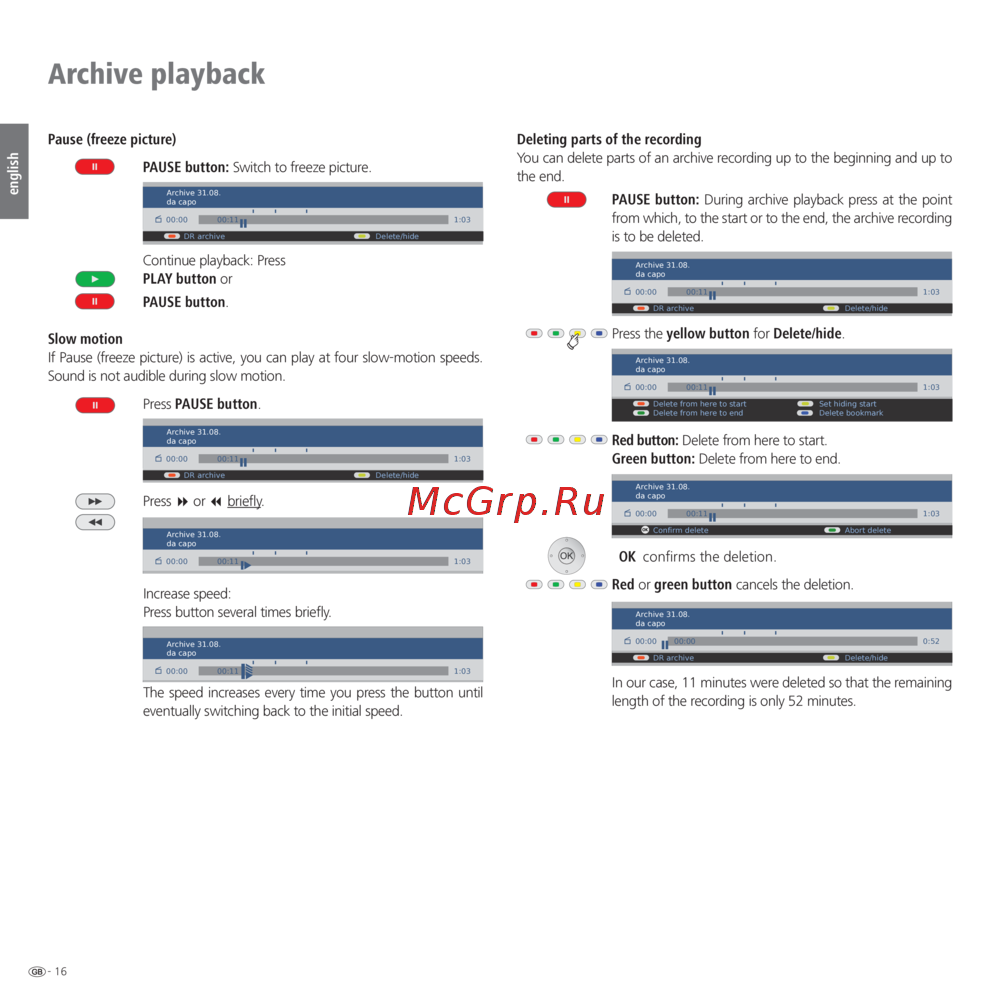

Archive playback
Deleting parts of the recording
You can delete parts of an archive recording up to the beginning and up to
the end.
PAUSE button: During archive playback press at the point
from which, to the start or to the end, the archive recording
is to be deleted.
Press the yellow button for Delete/hide.
Red button: Delete from here to start.
Green button: Delete from here to end.
OK confirms the deletion.
Red or green button cancels the deletion.
In our case, 11 minutes were deleted so that the remaining
length of the recording is only 52 minutes.
Pause (freeze picture)
PAUSE button: Switch to freeze picture.
Continue playback: Press
PLAY button or
PAUSE button.
Slow motion
If Pause (freeze picture) is active, you can play at four slow-motion speeds.
Sound is not audible during slow motion.
Press PAUSE button.
Press 8 or 7 briey.
Increase speed:
Press button several times briey.
The speed increases every time you press the button until
eventually switching back to the initial speed.
00:00 1:03
DR archive Delete/hide
Archive 31.08.
da capo
00:11
00:00 1:03
DR archive Delete/hide
Archive 31.08.
da capo
00:11
00:00 1:03
Archive 31.08.
da capo
00:11
00:00 1:03
Archive 31.08.
da capo
00:11
00:00 1:03
DR archive Delete/hide
Archive 31.08.
da capo
00:11
00:00 1:03
Delete from here to start
Delete from here to end
Set hiding start
Delete bookmark
Archive 31.08.
da capo
00:11
OK
00:00 1:03
Confirm delete Abort delete
Archive 31.08.
da capo
00:11
00:00 0:52
DR archive Delete/hide
Archive 31.08.
da capo
00:00
