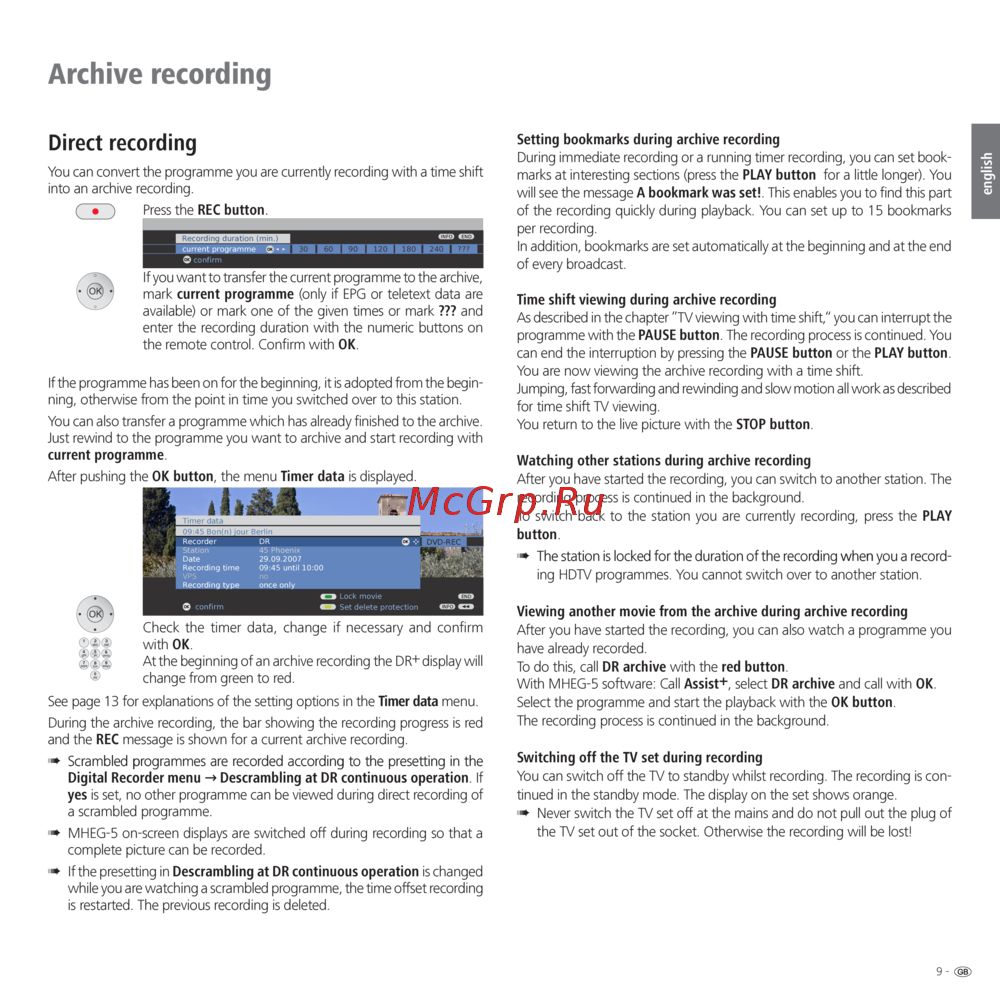

Loewe Digital Recorder + [9/22] Archive recording
![Loewe Digital Recorder + [9/22] Archive recording](/views2/1020526/page9/bg9.png)
9 -
english
Direct recording
You can convert the programme you are currently recording with a time shift
into an archive recording.
Press the REC button.
If you want to transfer the current programme to the archive,
mark current programme (only if EPG or teletext data are
available) or mark one of the given times or mark ??? and
enter the recording duration with the numeric buttons on
the remote control. Conrm with OK.
If the programme has been on for the beginning, it is adopted from the begin-
ning, otherwise from the point in time you switched over to this station.
You can also transfer a programme which has already nished to the archive.
Just rewind to the programme you want to archive and start recording with
current programme.
After pushing the OK button, the menu Timer data is displayed.
Check the timer data, change if necessary and conrm
with OK.
At the beginning of an archive recording the DR
+
display will
change from green to red.
See page 13 for explanations of the setting options in the Timer data menu.
During the archive recording, the bar showing the recording progress is red
and the REC message is shown for a current archive recording.
➠ Scrambled programmes are recorded according to the presetting in theScrambled programmes are recorded according to the presetting in the
Digital Recorder menu → Descrambling at DR continuous operation. If
yes is set, no other programme can be viewed during direct recording of
a scrambled programme.
➠ MHEG-5 on-screen displays are switched off during recording so that a
complete picture can be recorded.
➠ If the presetting in Descrambling at DR continuous operation is changed
while you are watching a scrambled programme, the time offset recording
is restarted. The previous recording is deleted.
Archive recording
OK
OK
END
INFO
30 60 90 120 180 240 ???current programme
Recording duration (min.)
confirm
END
INFO
OK
OK
Timer data
09:45 Bon(n) jour Berlin
Lock movie
Set delete protection
confirm
DVD-REC
Recorder DR
Station 45 Phoenix
Date 29.09.2007
Recording time 09:45 until 10:00
VPS no
Recording type once only
Setting bookmarks during archive recording
During immediate recording or a running timer recording, you can set book-
marks at interesting sections (press the PLAY buttonfor a little longer). You
will see the message A bookmark was set!. This enables you to nd this part
of the recording quickly during playback. You can set up to 15 bookmarks
per recording.
In addition, bookmarks are set automatically at the beginning and at the end
of every broadcast.
Time shift viewing during archive recording
As described in the chapter ”TV viewing with time shift,“ you can interrupt the
programme with the PAUSE button. The recording process is continued. You
can end the interruption by pressing the PAUSE button or the PLAY button.
You are now viewing the archive recording with a time shift.
Jumping, fast forwarding and rewinding and slow motion all work as described
for time shift TV viewing.
You return to the live picture with the STOP button.
Watching other stations during archive recording
After you have started the recording, you can switch to another station. The
recording process is continued in the background.
To switch back to the station you are currently recording, press the PLAY
button.
➠ The station is locked for the duration of the recording when you a record-The station is locked for the duration of the recording when you a record-
ing HDTV programmes. You cannot switch over to another station.
Viewing another movie from the archive during archive recording
After you have started the recording, you can also watch a programme you
have already recorded.
To do this, call DR archive with the red button.
With MHEG-5 software: Call Assist
+
, select DR archive and call with OK.
Select the programme and start the playback with the OK button.
The recording process is continued in the background.
Switching off the TV set during recording
You can switch off the TV to standby whilst recording. The recording is con-
tinued in the standby mode. The display on the set shows orange.
➠ Never switch the TV set off at the mains and do not pull out the plug of
the TV set out of the socket. Otherwise the recording will be lost!
