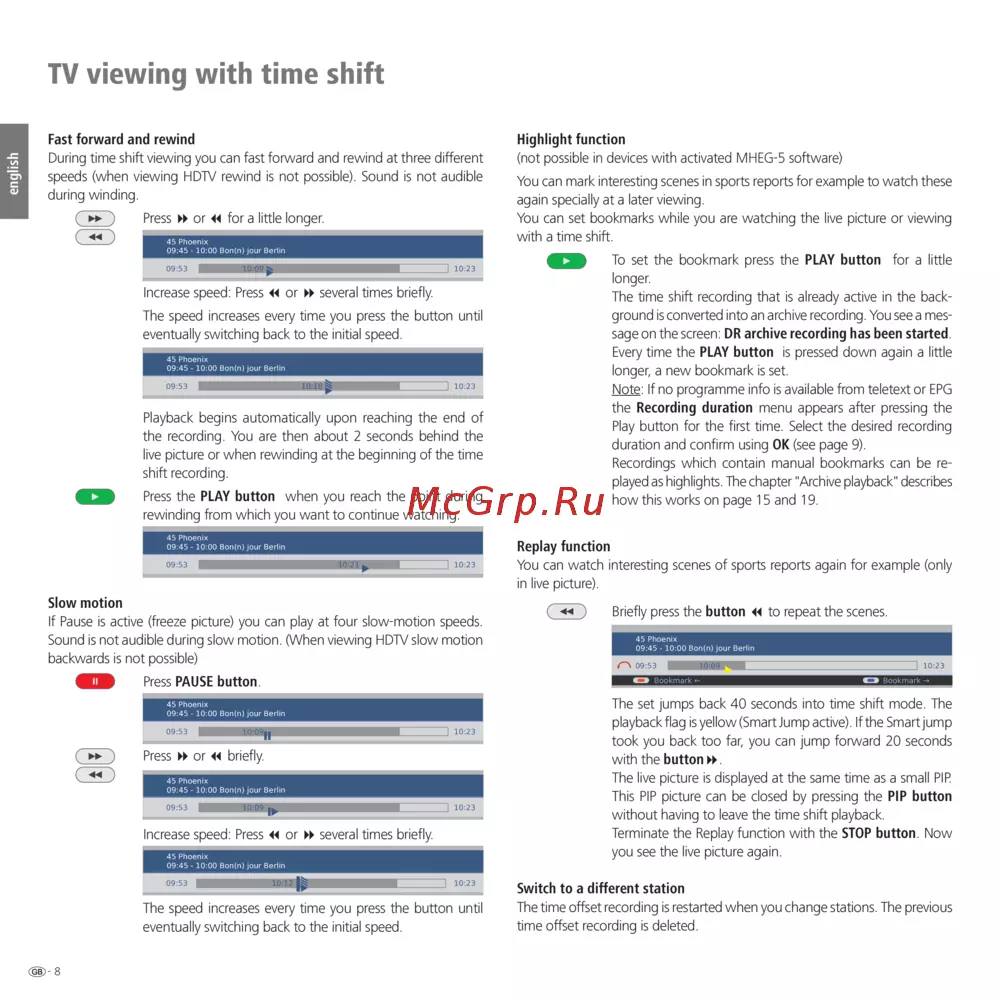

Loewe Digital Recorder + [8/22] Tv viewing with time shift
![Loewe Digital Recorder + [8/22] Tv viewing with time shift](/views2/1020526/page8/bg8.png)
- 8
english
Fast forward and rewind
During time shift viewing you can fast forward and rewind at three different
speeds (when viewing HDTV rewind is not possible). Sound is not audible
during winding.
Press 8 or 7 for a little longer.
Increase speed: Press 7 or 8 several times briey.
The speed increases every time you press the button until
eventually switching back to the initial speed.
Playback begins automatically upon reaching the end of
the recording. You are then about 2 seconds behind the
live picture or when rewinding at the beginning of the time
shift recording.
Press the PLAY button when you reach the point during
rewinding from which you want to continue watching.
Slow motion
If Pause is active (freeze picture) you can play at four slow-motion speeds.
Sound is not audible during slow motion. (When viewing HDTV slow motion
backwards is not possible)
Press PAUSE button.
Press 8 or 7 briey.
Increase speed: Press 7 or 8 several times briey.
The speed increases every time you press the button until
eventually switching back to the initial speed.
Highlight function
(not possible in devices with activated MHEG-5 software)
You can mark interesting scenes in sports reports for example to watch these
again specially at a later viewing.
You can set bookmarks while you are watching the live picture or viewing
with a time shift.
To set the bookmark press the PLAY button for a little
longer.
The time shift recording that is already active in the back-
ground is converted into an archive recording. You see a mes-
sage on the screen: DR archive recording has been started.
Every time the PLAY buttonis pressed down again a little
longer, a new bookmark is set.
Note: If no programme info is available from teletext or EPG
the Recording duration menu appears after pressing the
Play button for the rst time. Select the desired recording
duration and conrm using OK (see page 9).
Recordings which contain manual bookmarks can be re-
played as highlights. The chapter "Archive playback" describes
how this works on page 15 and 19.
Replay function
You can watch interesting scenes of sports reports again for example (only
in live picture).
Briey press the button 7 to repeat the scenes.
The set jumps back 40 seconds into time shift mode. The
playback ag is yellow (Smart Jump active). If the Smart jump
took you back too far, you can jump forward 20 seconds
with the button8.
The live picture is displayed at the same time as a small PIP.
This PIP picture can be closed by pressing the PIP button
without having to leave the time shift playback.
Terminate the Replay function with the STOP button. Now
you see the live picture again.
Switch to a different station
The time offset recording is restarted when you change stations. The previous
time offset recording is deleted.
TV viewing with time shift
09:53 10:23
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
10:09
09:53 10:23
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
10:18
09:53 10:23
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
10:21
09:53 10:23
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
10:09
09:53 10:23
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
10:09
10:1209:53 10:23
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
Bookmark ← Bookmark →
09:53 10:23
45 Phoenix
09:45 - 10:00 Bon(n) jour Berlin
10:09
