Netgear WNR612 [19/99] Basic home screen

NETGEAR genie Basic Settings

N150 2-Port Wireless Router WNR612v3

Basic Home Screen

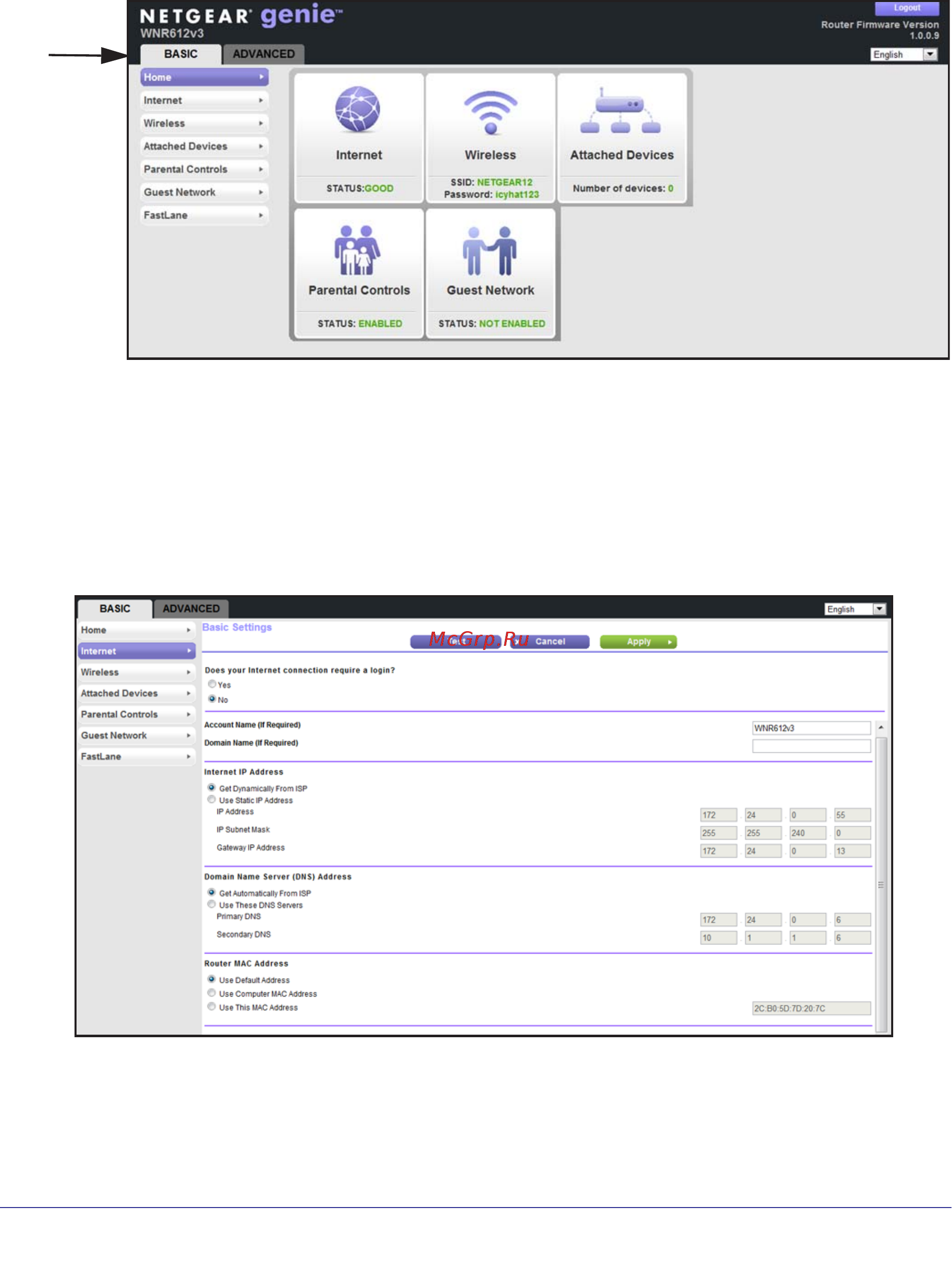

The genie Basic Home screen is shown in the following figure:

Internet Settings

The Internet Settings screen is where you view or change ISP information.

 To change the Internet settings:

1. From the Home screen, select Internet. The

following screen displays:
