NETGEAR genie Advanced Home
33
N150 2-Port Wireless Router WNR612v3
• To use the push button method, either click the WPS button on this screen or press
the WPS button on the side of the router. Within 2 minutes, go to the wireless client
and press its WPS button to join the network without entering a password.
• T

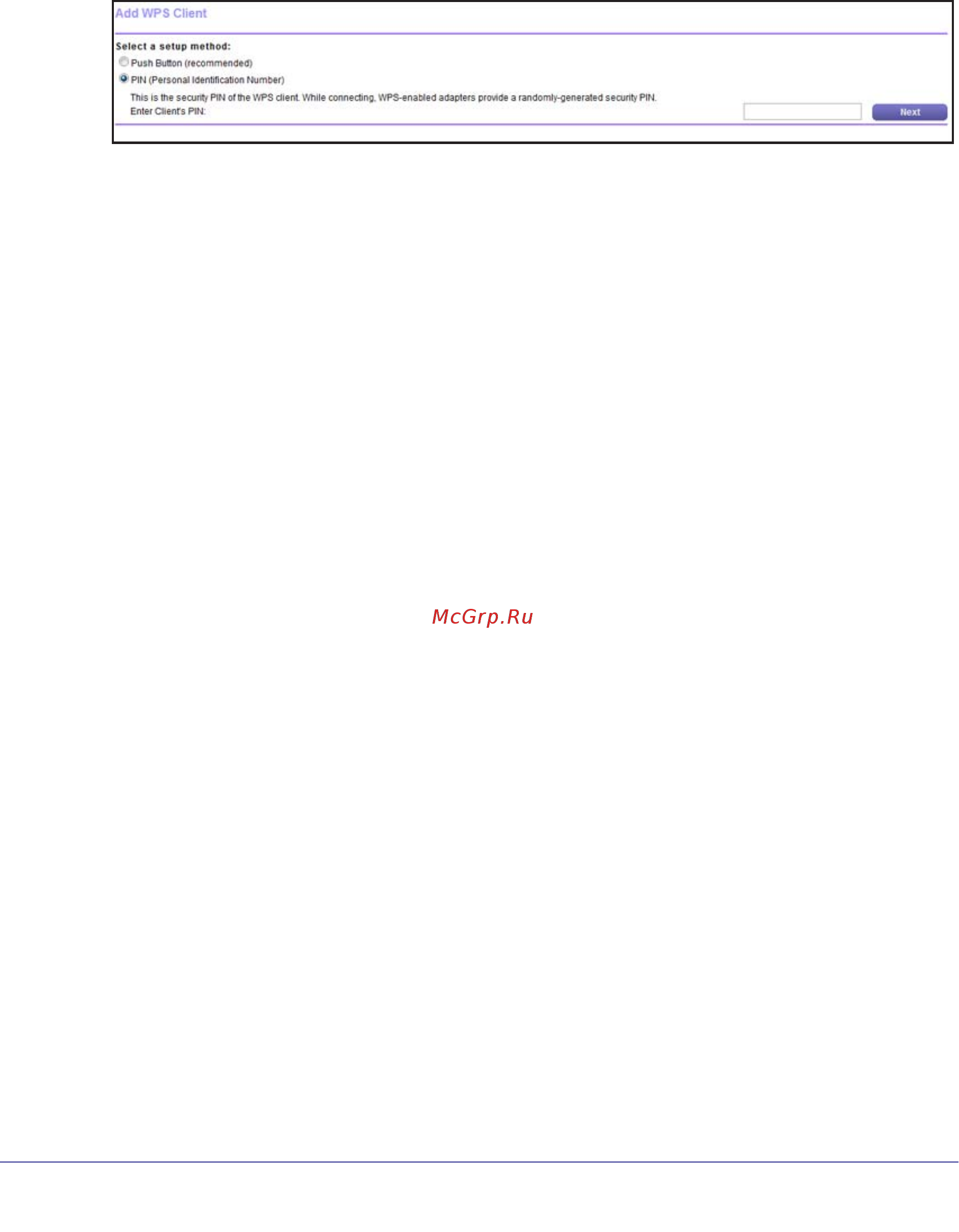

o use the PIN method, select the PIN Number radio button, enter the client security
PIN, and click Next.
Within 2 minutes, go to the client device and use its WPS software to join the network
without entering a password.
The router attempts to add the WPS-capable device.
4. Repeat Step 2 and Step 3 to add another WPS client to your network.
Setup Menu
To display the Setup menu:
Select Advanced > Setup to display the Setup menu.
The following selections are available:
• Internet Setup. Go to the same Internet Setup screen that you can access from the
dashboard on the Basic Home screen. See Internet Settings on page 19.
• W
ireless Setup. Go to the same Wireless Settings screen that you can access from
the dashboard on the Basic Home screen. See Basic Wireless Settings on page 24.
• Guest Network.
This is a shortcut to the same Guest Network screen that you can
access from the dashboard on the Basic Home screen. See FastLane on page 29.
• W
AN Setup. Internet (WAN) setup. See WAN Setup on page 33.
• LAN Setup. Local area network (LAN) setup. See LAN Setup on page 37.
• QoS Setup. Quality of Service (QoS) setup. See Quality of Service (QoS) Setup on
page 40.
WAN Setup
The WAN Setup screen lets you configure a DMZ (demilitarized zone) server, change the
Maximum Transmit Unit (MTU) size, and enable the router to respond to a ping on the WAN
(Internet) port.
