Netgear WNR612 [7/99] Unpack your router
![Netgear WNR612 [7/99] Unpack your router](/views2/1205513/page7/bg7.png)
Hardware Setup
7
N150 2-Port Wireless Router WNR612v3
Unpack Your Router
Open the box and remove the router, cables, and installation guide.

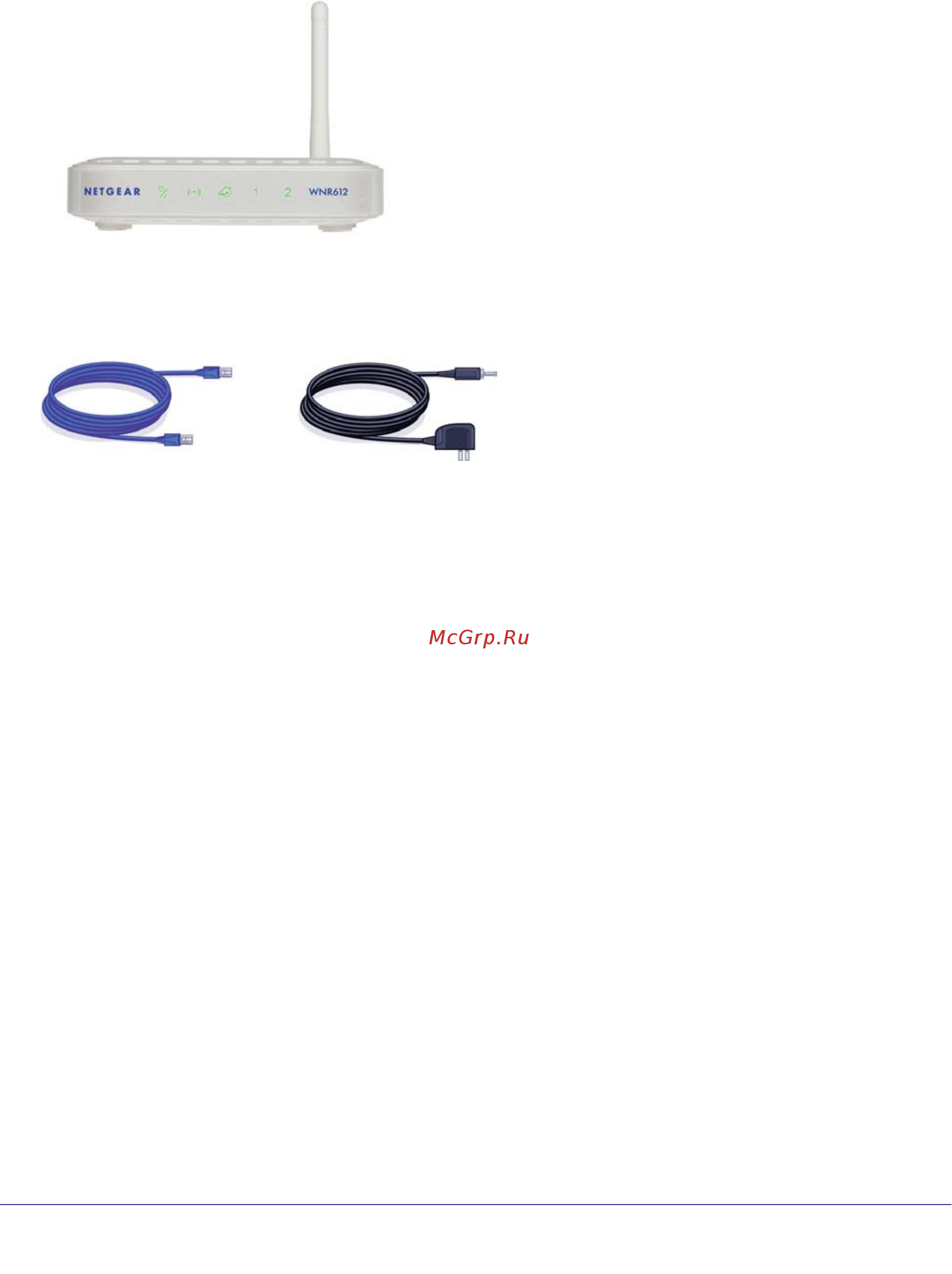

Ethernet cable
WNR612v3 Router
Power adapter
Figure 1. Check the package contents
Your box contains the following items:
• N150 2-Port Wireless Router WNR612v3
• AC power adapter (plug varies by region)
• Category 5 (Cat 5) Ethernet cable
• Installation guide with cabling and router setup instructions
If any parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton and original packing materials, in case you need to return the product for repair
.
Position Your Router
The router lets you access your network from virtually anywhere within the operating range of
your wireless network. However, the operating distance or range of your wireless connection
can vary significantly depending on the physical placement of your router. For example, the
thickness and number of walls the wireless signal passes through can limit the range. For
best results, place your router:
• Near the center of the area where your computers and other devices operate and
preferably within line of sight to your wireless devices.
• So it is accessible to an
AC power outlet and near Ethernet cables for wired computers.
