Netgear WNR612 [31/99] Netgear genie advanced screen

NETGEAR genie Advanced Home

N150 2-Port Wireless Router WNR612v3

NETGEAR genie Advanced Screen

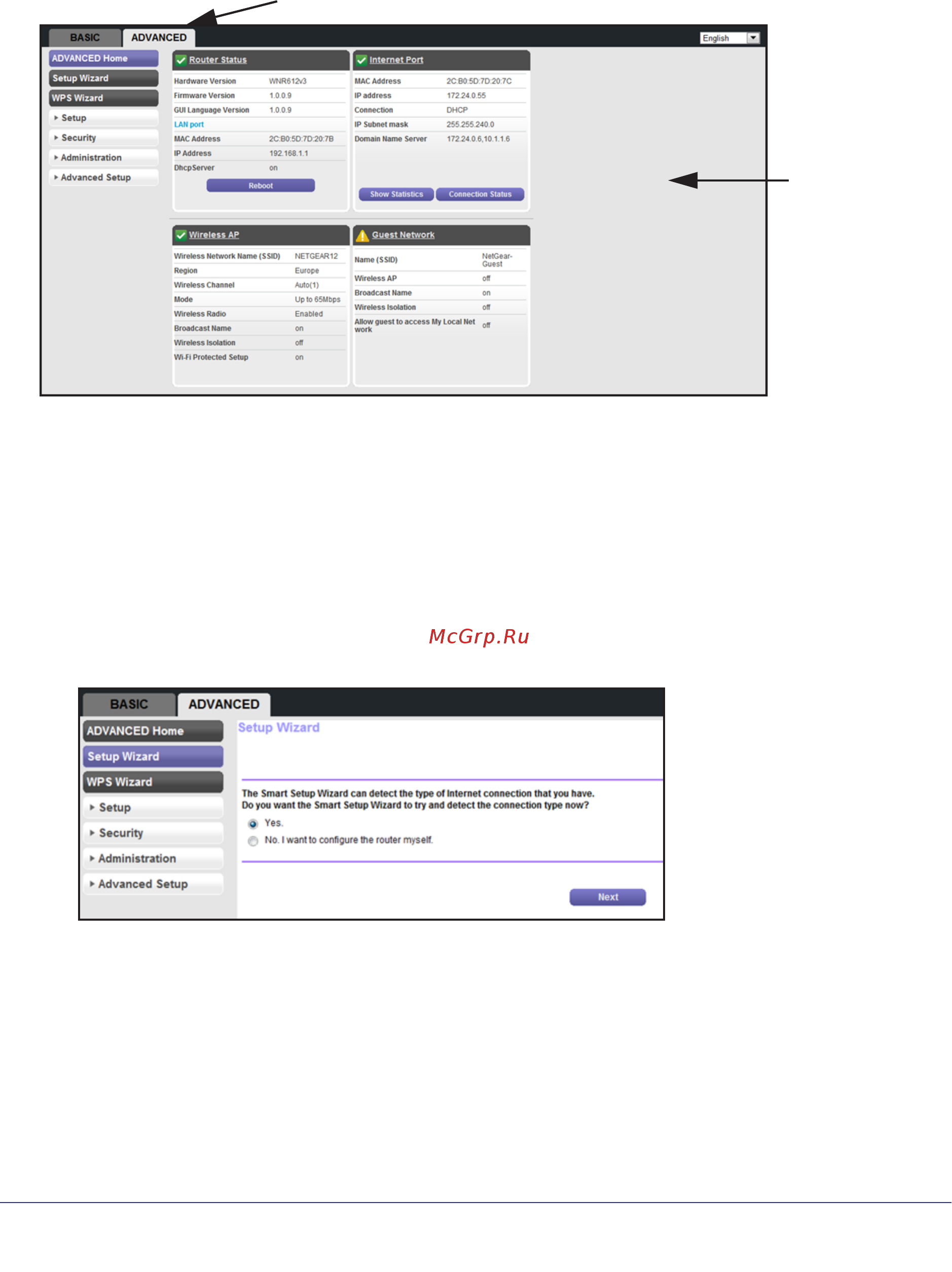

The genie Advanced Home screen is shown in the following figure:

This screen

is also

displayed

through the

Administrati

on menu.

Setup Wizard

You can use the Setup Wizard to detect your Internet settings and automatically set up your

router. The Setup Wizard is not the same as the genie screens that display the first time you

connect to your router to set it up.

 To use the Setup Wizard:

1. Select Advanced > Setup W

izard to display the following screen:

2. Select either Yes or No, I want to configure the router myself. If you select No, you are

taken to the Internet Setup screen (see Internet Settings on page 19).
