96
5. Using On-Screen Menu

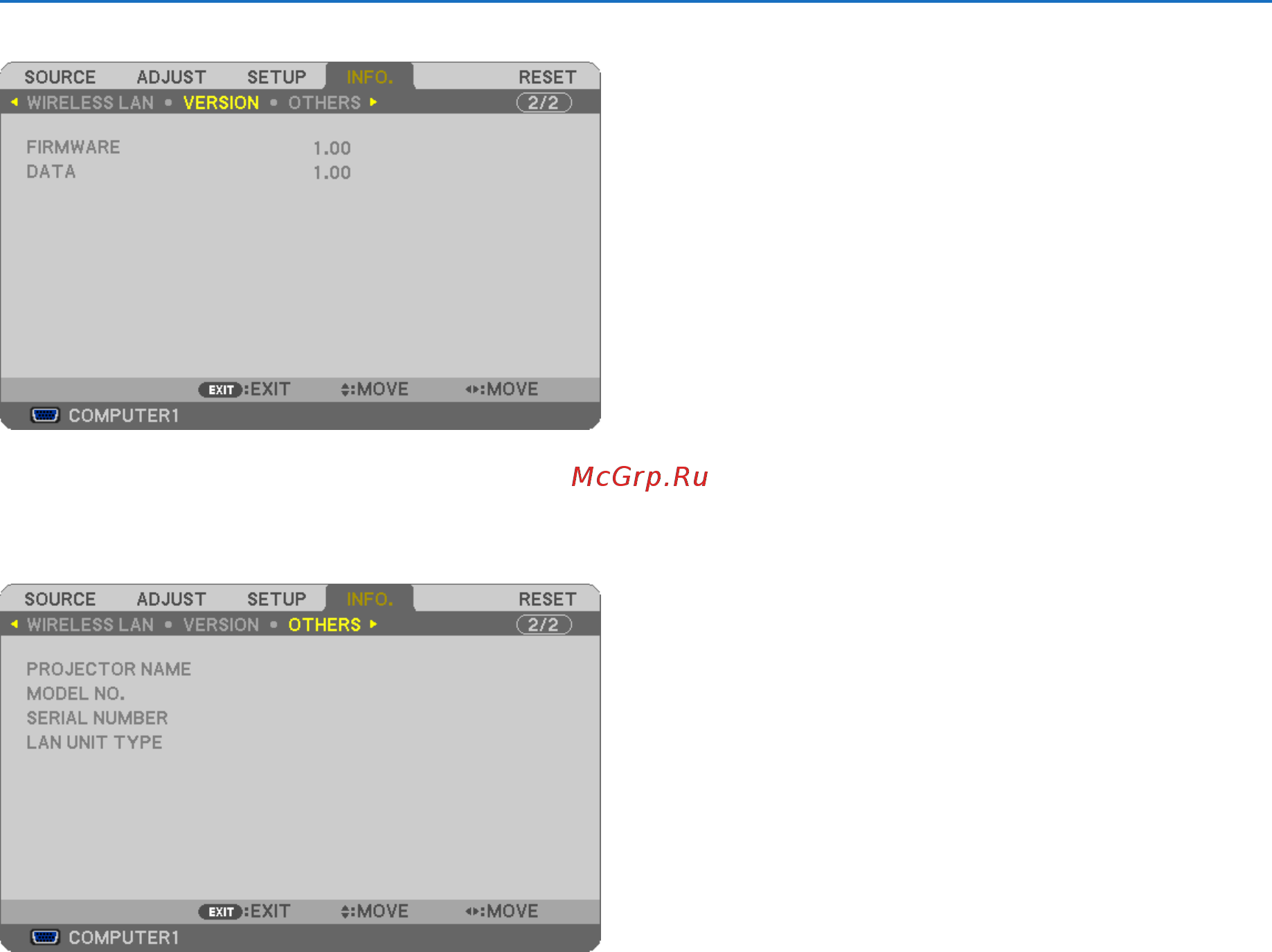

[VERSION]
[FIRMWARE]Version
[DATA]Version
[OTHERS]
[PROJECTORNAME]
[MODELNO.]
[SERIALNUMBER]
[LANUNITTYPE]
[CONTROLID](when[CONTROLID]isset)
