21
2. Projecting an Image (Basic Operation)

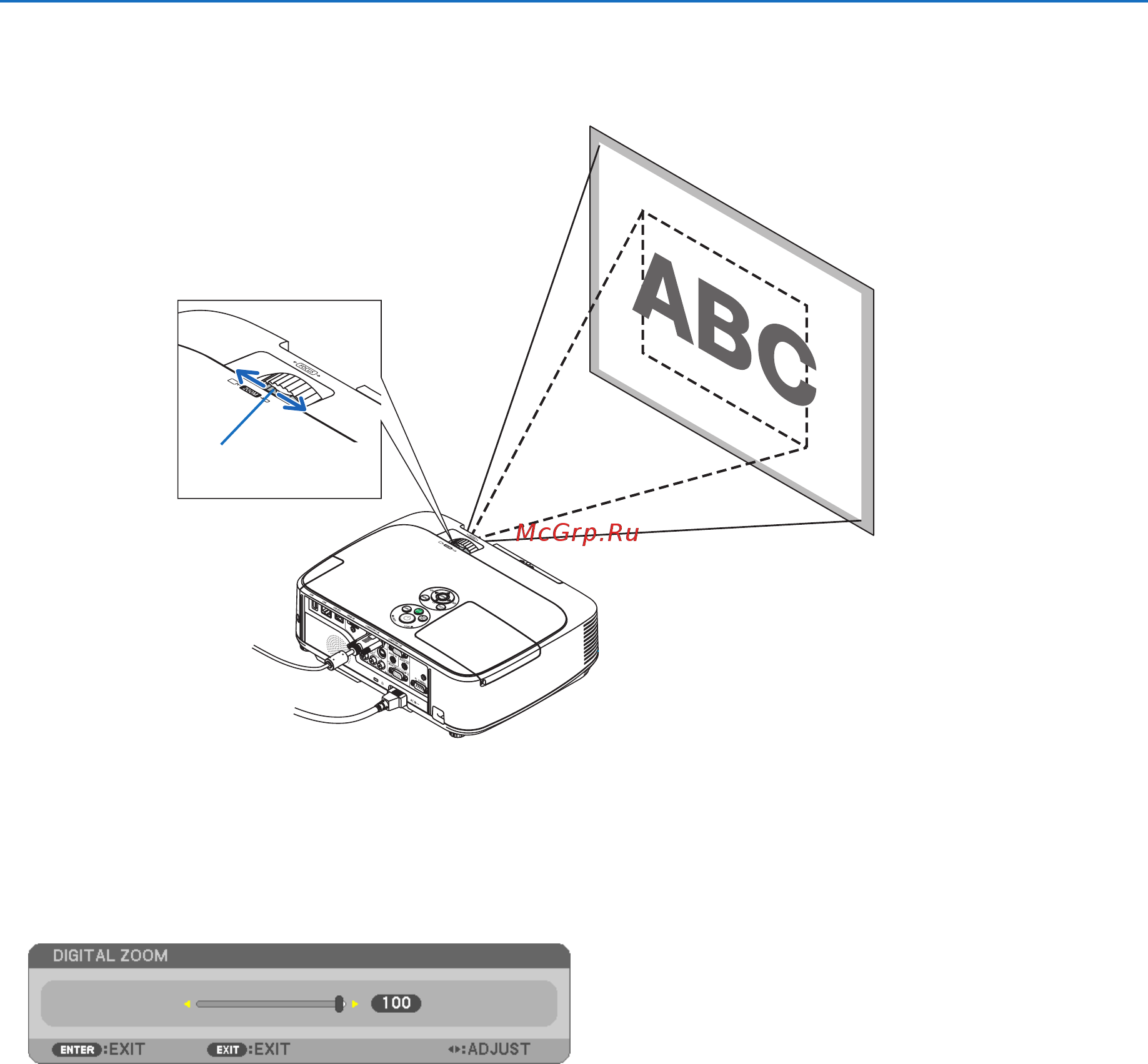

Zoom
[M350X/M300X/M260X/M230X/M300W/M260W/M420X/M420XV]
UsetheZOOMlevertoadjusttheimagesizeonthescreen.
[M350XS/M300XS/M260XS/M300WS/M260WS]
Theimagesizecanbeadjustedelectronicallyfromthemenu.Todoso,followthestepsbelow.
AdjustingwiththeZOOMbuttonontheremotecontrol
1. PresstheZOOMbutton.
The DIGITAL ZOOM bar will be displayed.
2. Pressthe◀ or ▶buttontoadjusttheimagesize.
3. PresstheEXITbutton.
The DIGITAL ZOOM bar will be closed.
Zoom Lever
