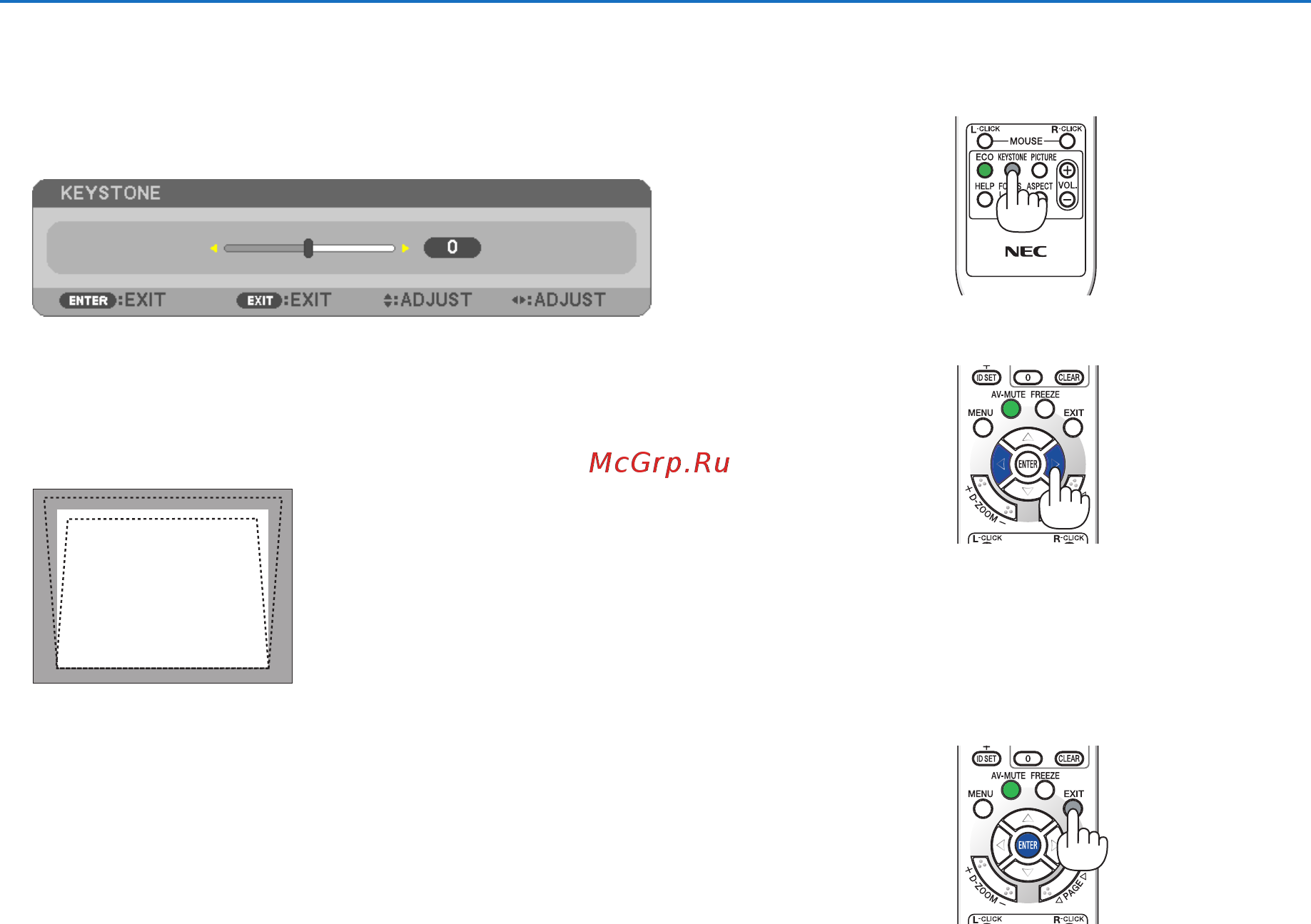

Nec M420X [35/155] Adjusting with the remote control
![Nec M420X [35/155] Adjusting with the remote control](/views2/1205526/page35/bg23.png)
25
2. Projecting an Image (Basic Operation)
Adjusting with the remote control
1. PresstheKEYSTONEbutton.
The Keystone bar will be displayed.
2. Usethe or buttontocorrectthekeystonedistortion.
Adjust so that the right and left sides are parallel.
3. PresstheEXITbutton.
The Keystone bar will be closed.
