Chapter 1. Introduction

Components

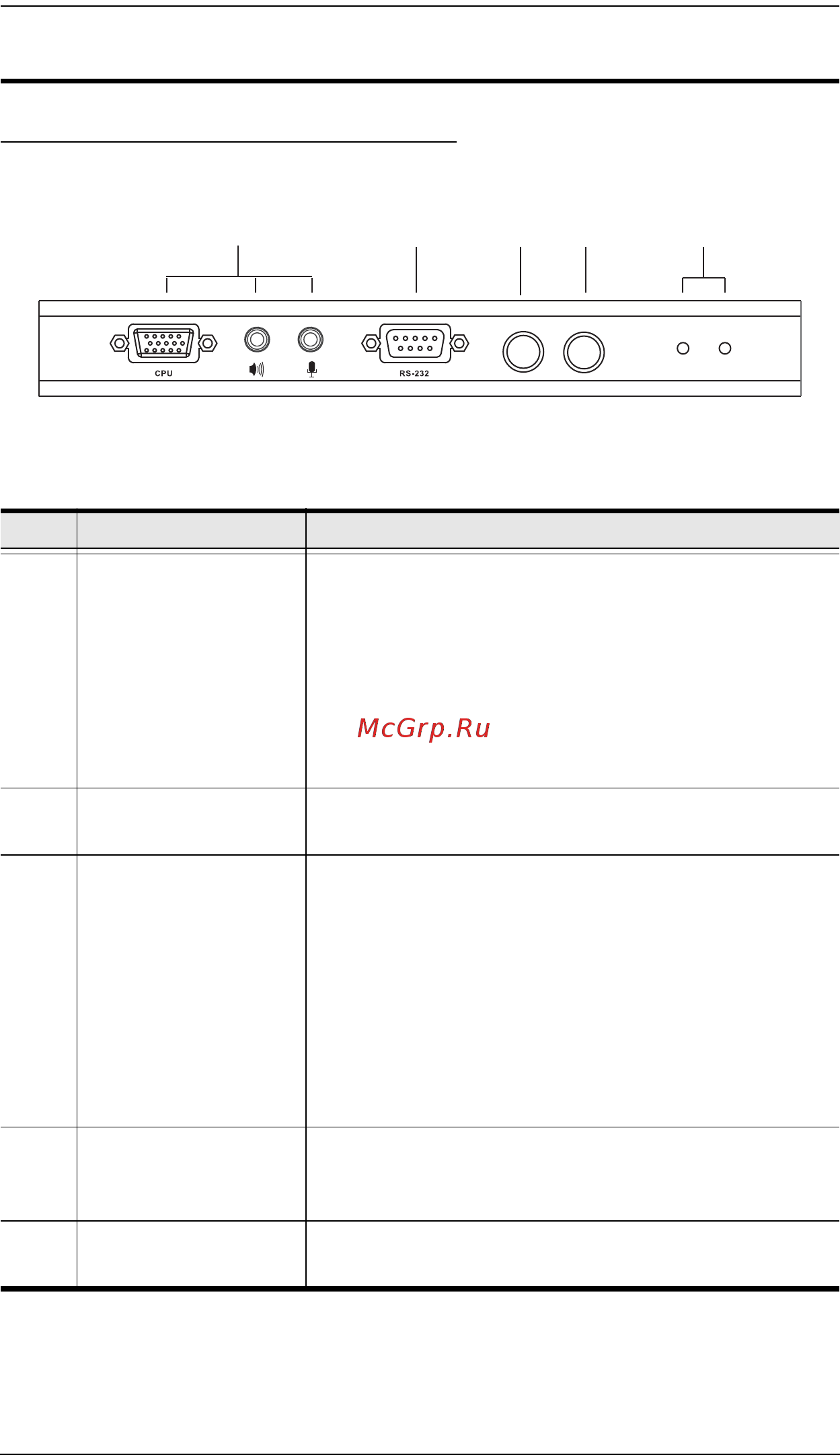

CE790T (Transmitter) Front View

No. Component Description

1 KVM Port Section The USB KVM cable supplied with the CE790T

package that links the CE790T to the computer plugs

into these ports. See Installation, page 11, for further

details.

If you are combining the CE790T with a KVM switch,

the USB KVM cable that links to the respective ports

on the Console section of the switch plugs into these

ports.

2 RS-232 Serial Port This RS-232 serial port is for connecting to a serial

terminal.

3 OSD Pushbutton Press this pushbutton to invoke the CE790T’s On

Screen Display (OSD). See OSD Functions, page 22

for details.

Once the OSD has been invoked, press this

pushbutton to cycle the OSD highlight bar through the

available options.

Press and hold this pushbutton and reset the power to

enter firmware upgrade mode. See The Firmware

Upgrade Utility, page 29, for details.

4 Select Pushbutton Press this pushbutton to select functions within the

OSD menu. See OSD Function Summary, page 27, for

details.

6 LEDs The CE790T has two LEDs to indicate Status and

Power. See LED Display, page 19, for details.

STATUS

POWER

OSD

SELECT
