CE790 User Manual
6

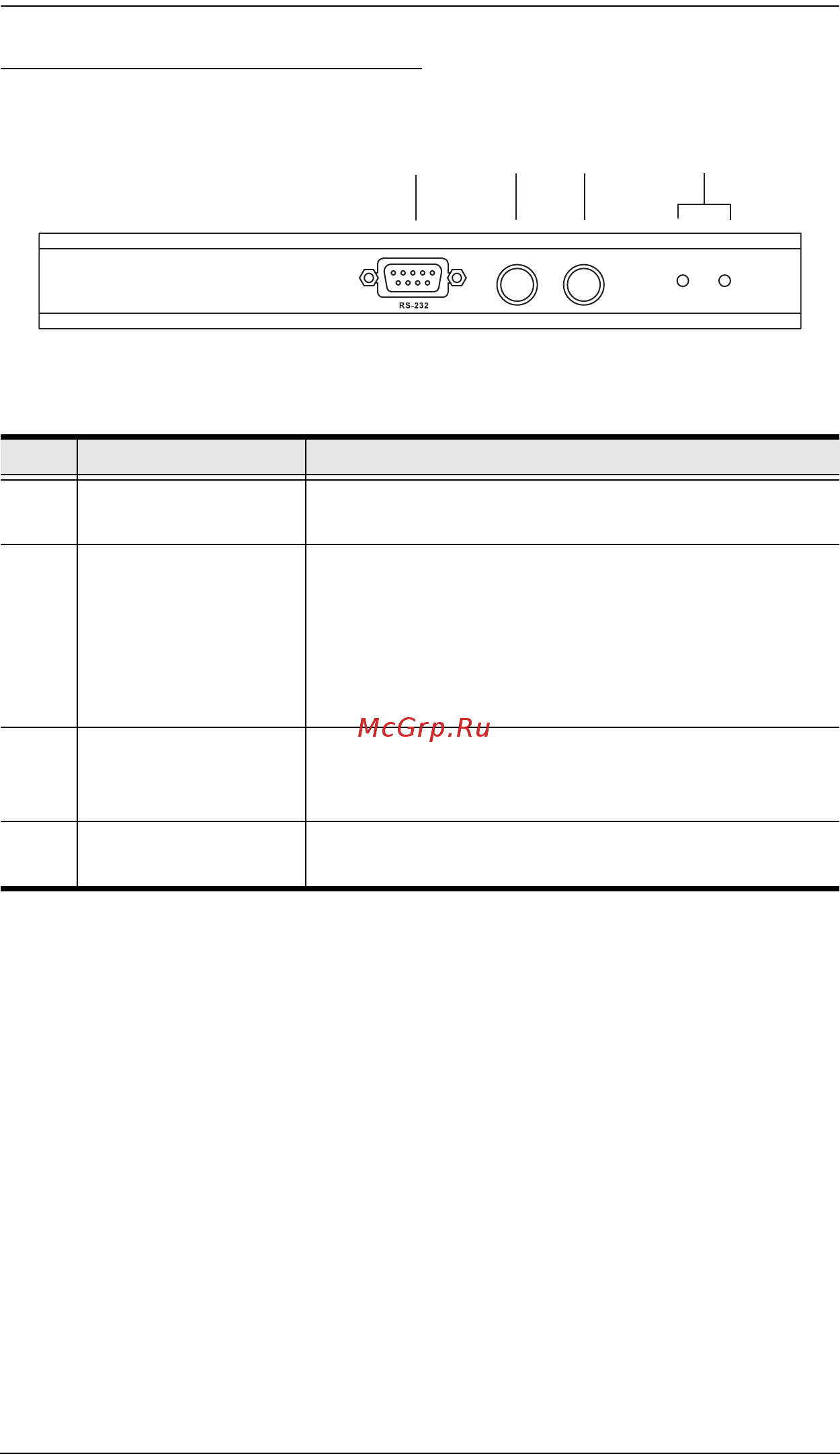

CE790R (Receiver) Front View
No. Component Description
1 RS-232 Serial Port RS-232 serial devices – such as touchscreens or
barcode scanners – plug into this port.
2 OSD Pushbutton Press this pushbutton to invoke the CE790R’s On
Screen Display (OSD). See OSD Function Summary,
page 27 for details.
Press and hold this pushbutton and reset the power to
enter firmware upgrade mode. See The Firmware
Upgrade Utility, page 29, for details.
3 Select Pushbutton Press this pushbutton to select functions within the
OSD menu. See OSD Function Summary, page 27, for
details.
4 LEDs The CE790R has two LEDs to indicate Status and
Power. See LED Display, page 19, for details.
1
43
OSD
SELECT
STAT U S
POWER
2
