9
Chapter 2
Hardware Setup
Rack Mounting
For convenience and flexibility, the CE790T and CE790R can be mounted on
system racks. To rack mount a unit do the following:

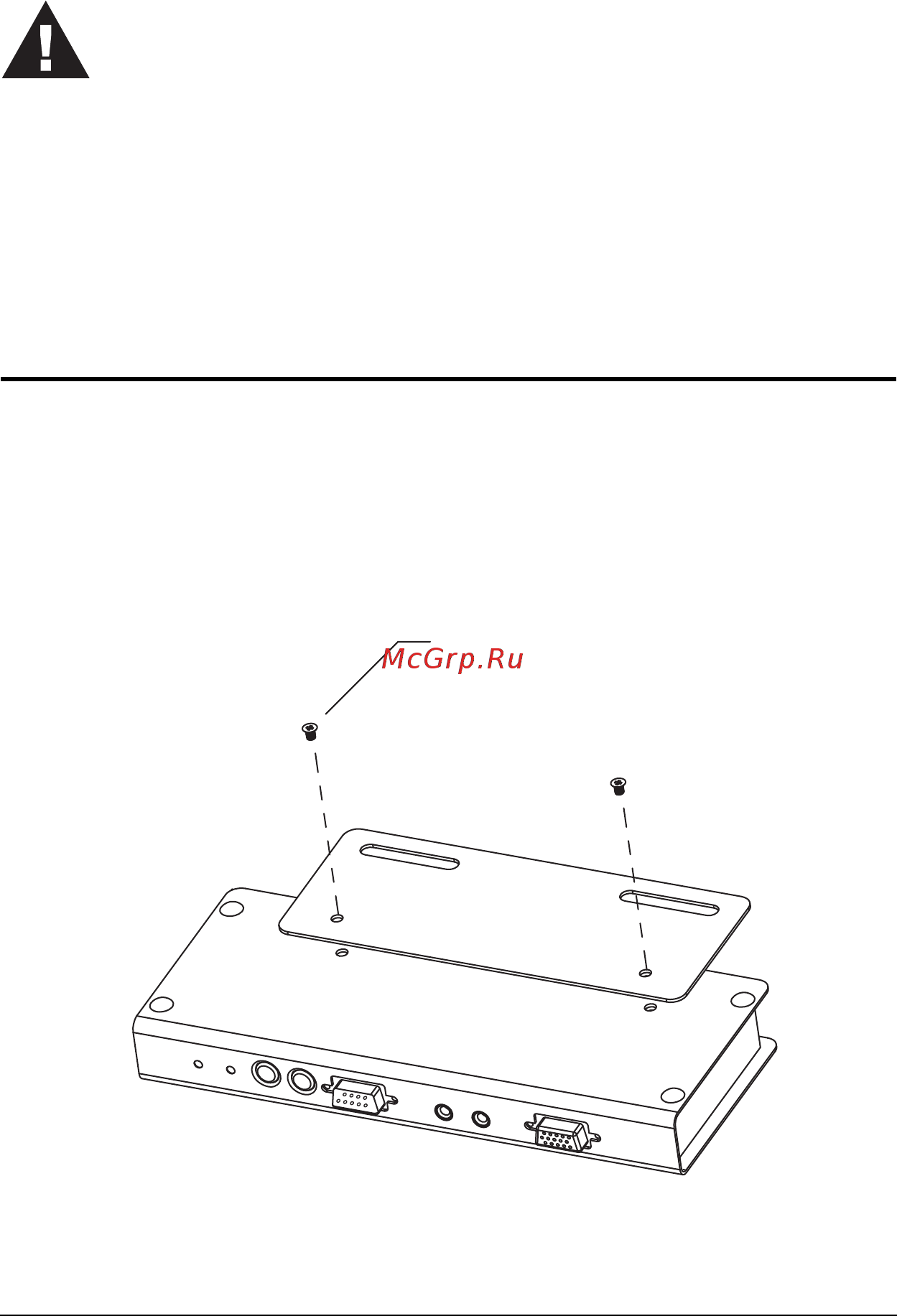

1. Using the screws provided in the Rack Mount Kit, screw the mounting
bracket into the top or bottom of the unit as show in the diagram below:
1. Important safety information regarding the placement of this
device is provided on . Please review it before proceeding.
2. Make sure that the power to all devices connected to the
installation are turned off. You must unplug the power cords of
any computers that have the Keyboard Power On function.
Phillips hex head
M3 x 8
