Pulsar Forward F135 [17/88] Страница 17

Point of impact does

not match the aiming

point.

Display calibration needs to

be done

Do display calibration as per

guidelines below.

The attachment is adjusted so that it does not need zeroing once the

attachment has been installed on a properly zeroed day sight. If the

attachment has been dropped or struck, you can check the aiming

point by yourself without going to a service centre.

Forward F display calibration

To enter the display calibration, press and hold down MENU

button, then RIGHT button.

Holding down the MENU and RIGHT button simultaneously, briefly

press LEFT button – display coordinates appear on the display.

Release the buttons.

Move the display horizontally (axis X) and vertically (axis Y) with

LEFT and RIGHT buttons to match the point of impact with the

centre of your day sight's reticle.

Briefly press the MENU button to switch between X and Y

coordinates.

Image movement pitch is 1 sensor pixel.

Image movement range is +/- 16 pixels horizontally (axis X), +/- 12

pixels vertically (axis Y).

To quit the menu and save the settings, press and hold down

MENU button for two seconds.

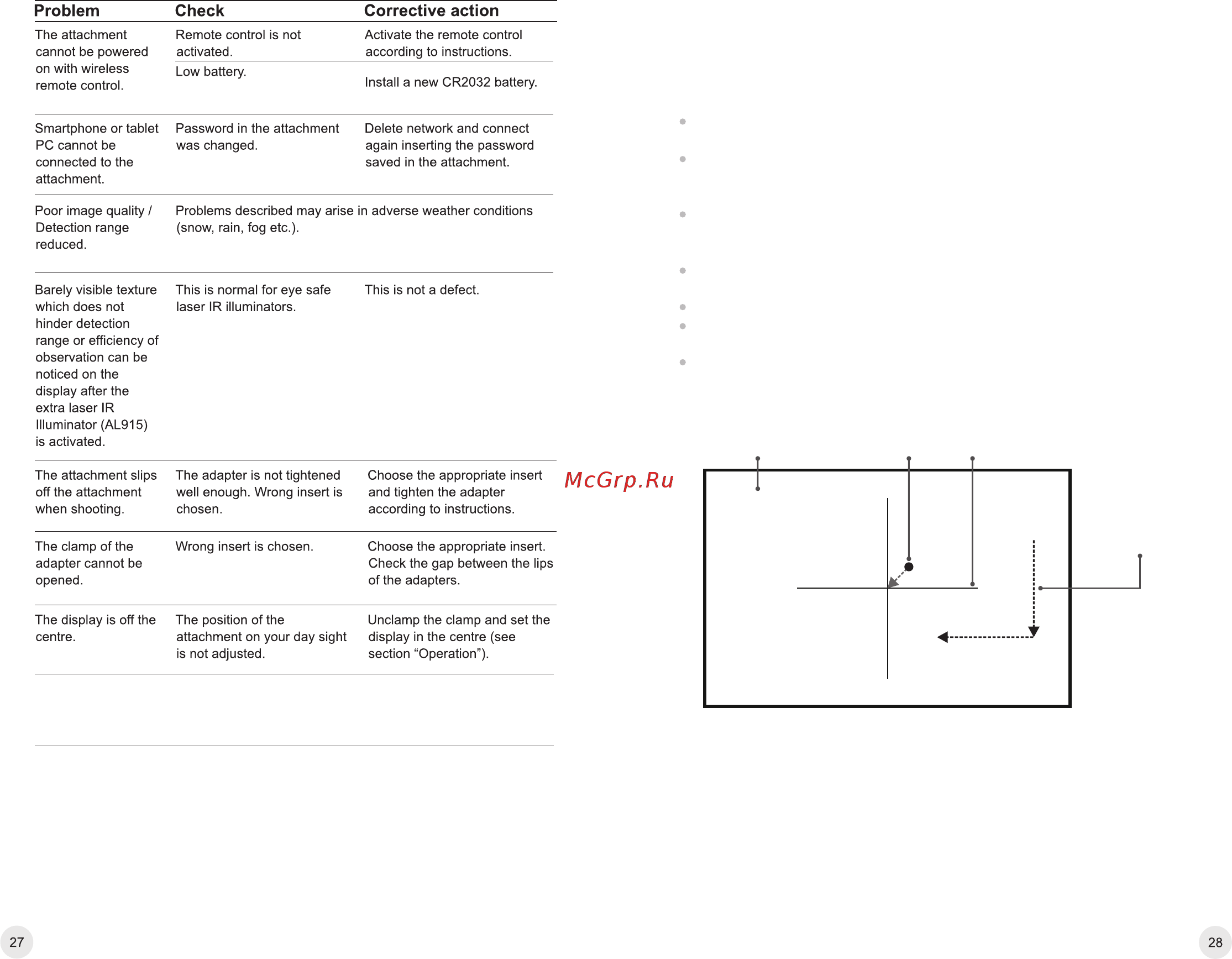

X=10

Y=12

Display

Movement

Day sight”s

Reticle

Point of

Impact

Display

Coordinates
