ASUS ROG STRIX Z370-E GAMING
1-13
Chapter 1

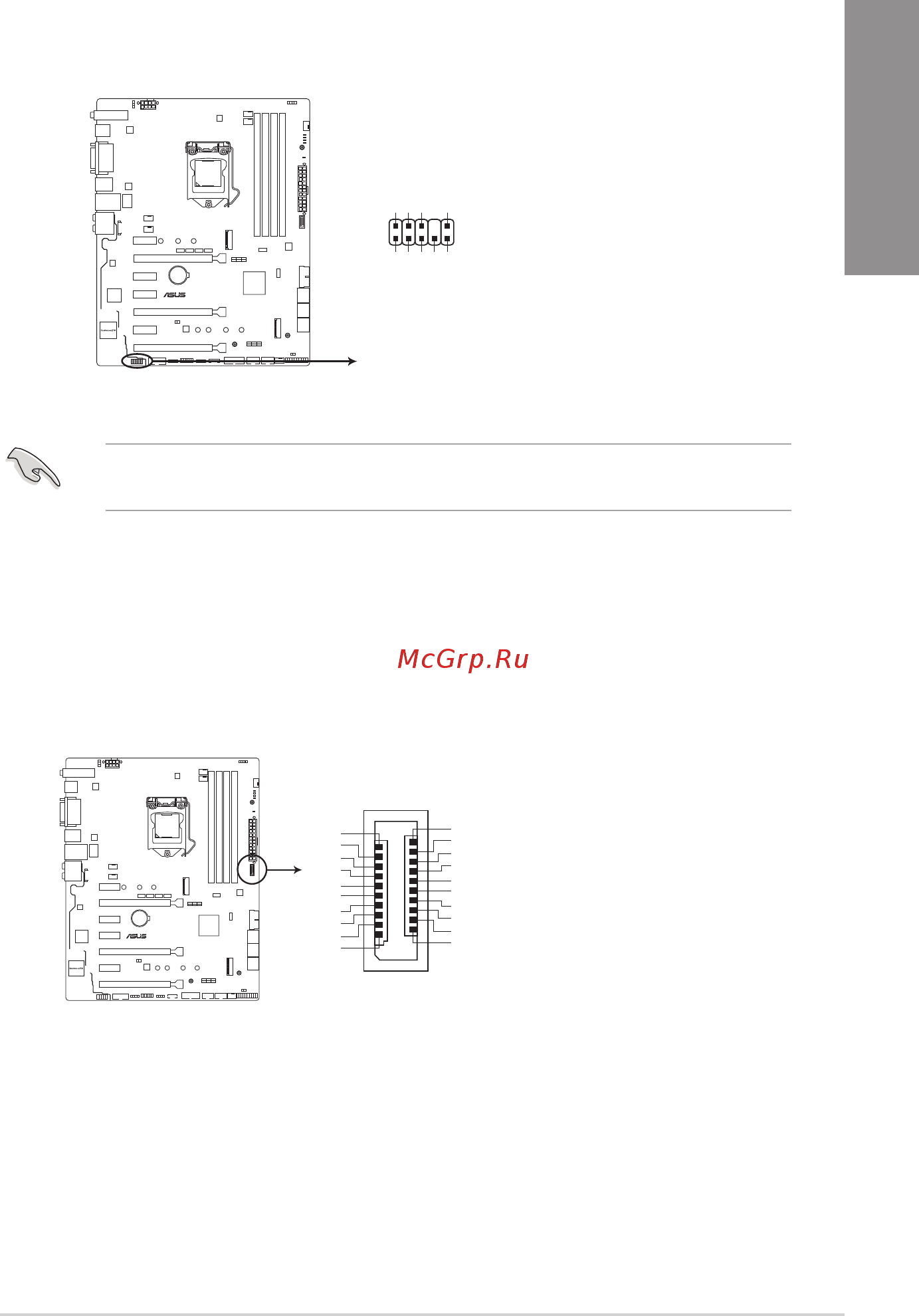

2. Front panel audio connector (10-1 pin AAFP)
Thisconnectorisforachassis-mountedfrontpanelaudioI/OmodulethatsupportsHD
Audio.ConnectoneendofthefrontpanelaudioI/Omodulecabletothisconnector.
Werecommendthatyouconnectahigh-denitionfrontpanelaudiomoduletothis
connectortoavailofthemotherboard’shigh-denitionaudiocapability.
3. USB 3.1 Gen2 front panel connector (U31G2_E3)
ThisconnectorallowsyoutoconnectaUSB3.1Gen2moduleforadditionalUSB3.1
Gen2ports.ThelatestUSB3.1Gen2connectivityprovidesdatatransferspeedsof
upto10Gbps.Thenext-generationstandardiscompletelybackward-compatiblewith
yourexistingUSBdevices.
®
STRIX Z370-E GAMING
ROG STRIX Z370-E GAMING Analog front panel connector
AAFP
AGND
NC
SENSE1_RETUR
SENSE2_RETUR
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
®
STRIX Z370-E GAMING
ROG STRIX Z370-E GAMING USB 3.1 Gen 2 front panel connector
U31G2_E3
VBUS
TX2+
TX2-
GND
RX2+
RX2-
GND
D-
D+
CC2
SBU2
SBU1
CC1
VBUS
RX1-
RX1+
GND
TX1-
TX1+
VBUS
