ASUS ROG STRIX Z370-E GAMING
2-17
Chapter 2
2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection

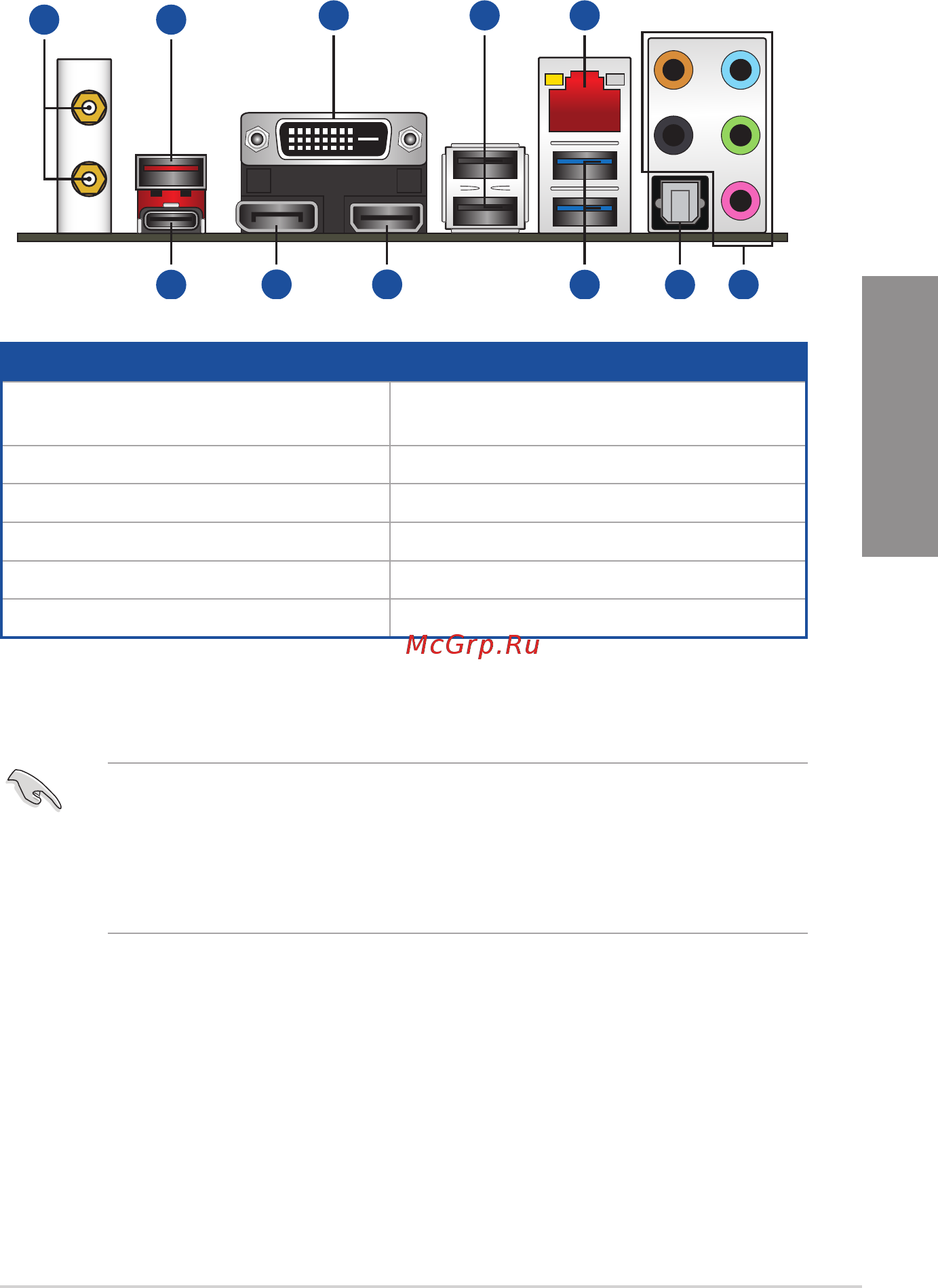

Rear panel connectors
1.
Wi-Fi802.11a/b/g/n/ac,Bluetooth
V4.2*
7. DisplayPort
2.
USB3.1Gen2Type-AportE2 8. HDMI 1.4b port
3.
DVI-D port 9. USB3.1Gen1ports
4.
USB2.0ports 10. OpticalS/PDIFOutport
5.
Intel
®
LAN port (LAN1)** 11. Audio I/O ports***
6.
USB3.1Gen2Type-CportEC1
* SupportfortheBluetoothspecicationdependsontheWindows
®
version.
**and***:RefertothetablesonthenextpageforLANportLEDsandaudioportdenitions.
• ThepluggedUSB3.1Gen1devicemayrunonxHCImodeorEHCImode,depending
on the operating system’s setting.
• USB3.1Gen1devicescanonlybeusedasdatastorageonly.
• WestronglyrecommendthatyouconnectUSB3.1Gen1devicestoUSB3.1Gen1
portsforfasterandbetterperformanceforyourUSB3.1Gen1devices.
5
9
21
6 1110
3
87
4
