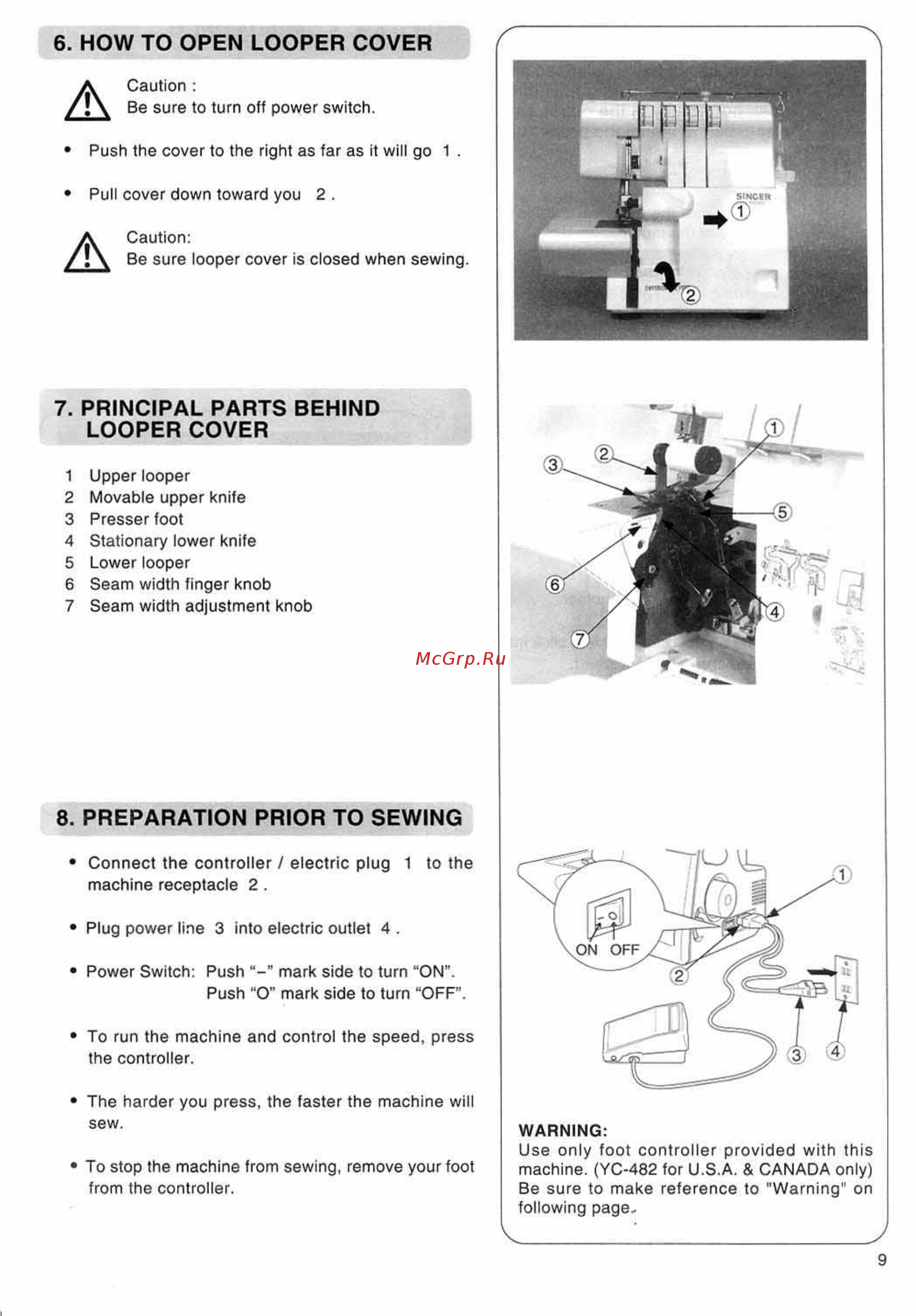

6 HOW TO OPEN LOOPER COVER A Caution Be sure to turn off power switch Push the cover to the right as far as it will go 1 Pull cover down toward you 2 Caution Be sure looper cover is closed when sewing 7 PRINCIPAL PARTS BEHIND LOOPER COVER 1 Upper looper 2 Movable upper knife 3 Presser foot 4 Stationary lower knife 5 Lower looper 6 Seam width finger knob 7 Seam width adjustment knob 8 PREPARATION PRIOR TO SEWING Connect the controller electric plug 1 to the machine receptacle 2 Plug power line 3 into electric outlet 4 Power Switch Push mark side to turn ON Push O mark side to turn OFF To run the machine and control the speed press the controller The harder you press the faster the machine will sew To stop the machine from sewing remove your foot from the controller WARNING Use only foot controller provided with this machine YC 482 for U S A CANADA only Be sure to make reference to Warning on following page 9
