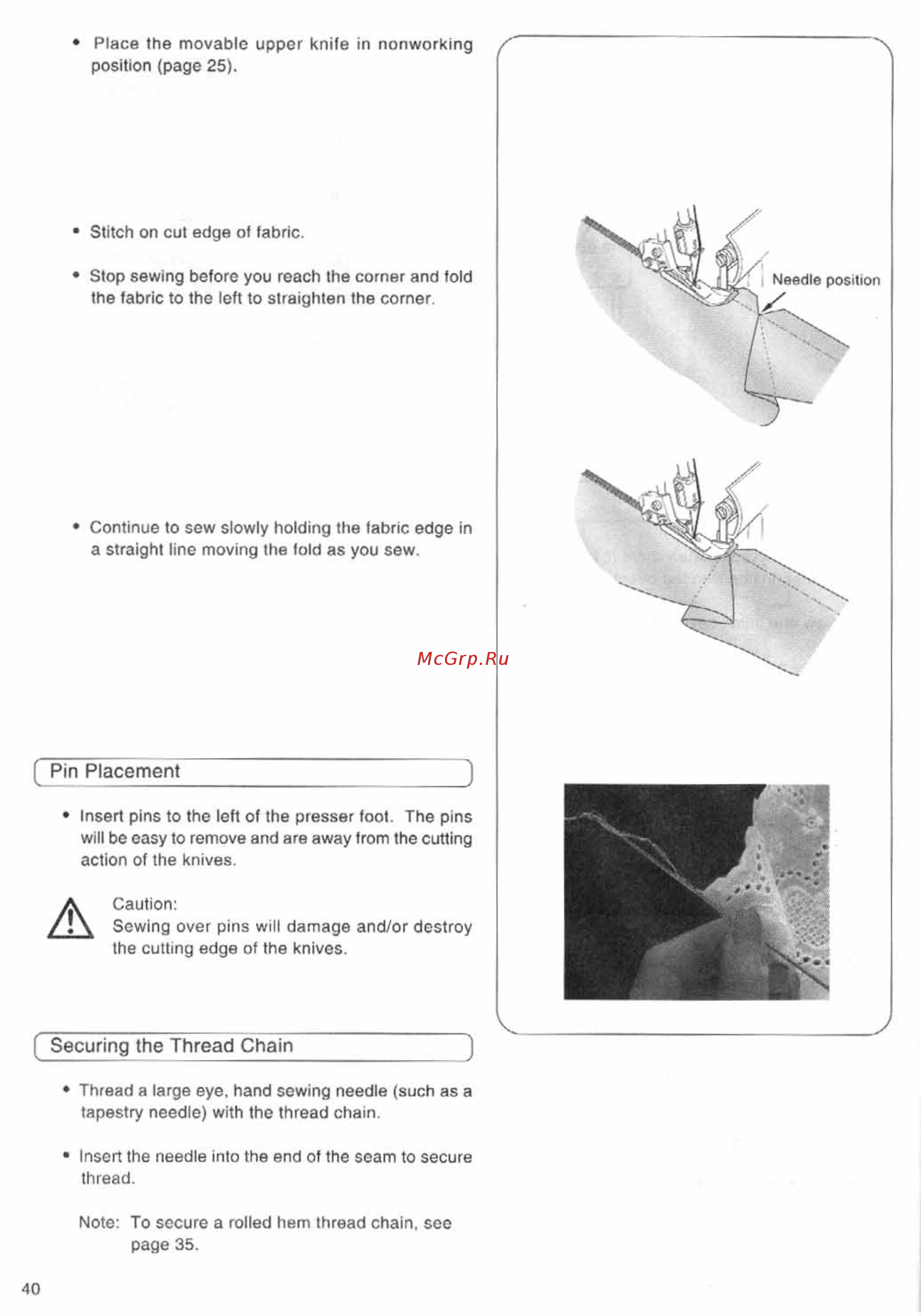

Place the movable upper knife in nonworking position page 25 Stitch on cut edge of fabric Stop sewing before you reach the corner and fold the fabric to the left to straighten the corner Continue to sew slowly holding the fabric edge in a straight line moving the told as you sew Pin Placement Insert pins to the left of the presser foot The pins will be easy to remove and are away from the cutting action of the knives A Caution Sewing over pins will damage and or destroy the cutting edge of the knives Securing the Thread Chain Thread a large eye hand sewing needle such as a tapestry needle with the thread chain Insert the needle into the end of the seam to secure thread Note To secure a rolled hem thread chain see page 35 40
