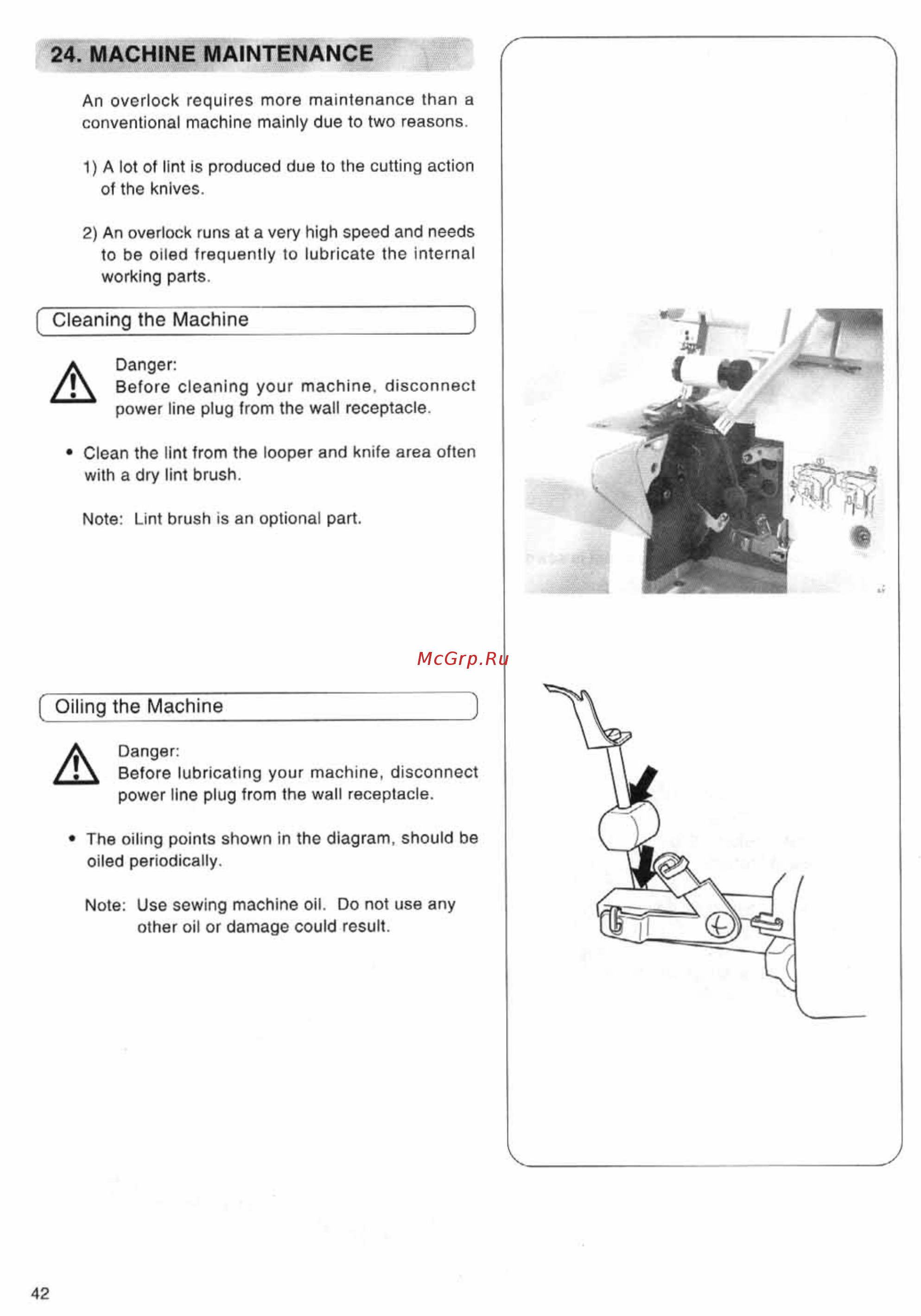

24 MACHINE MAINTENANCE An overlock requires more maintenance than a conventional machine mainly due to two reasons 1 A lot of lint is produced due to the cutting action of the knives 2 An overlock runs at a very high speed and needs to be oiled frequently to lubricate the internal working parts Cleaning the Machine J Danger Before cleaning your machine disconnect power line plug from the wall receptacle Clean the lint from the looper and knife area often with a dry lint brush Note Lint brush is an optional part i Oiling the Machine__________________________ Danger Before lubricating your machine disconnect power line plug from the wall receptacle The oiling points shown in the diagram should be oiled periodically Note Use sewing machine oil Do not use any other oil or damage could result 42
