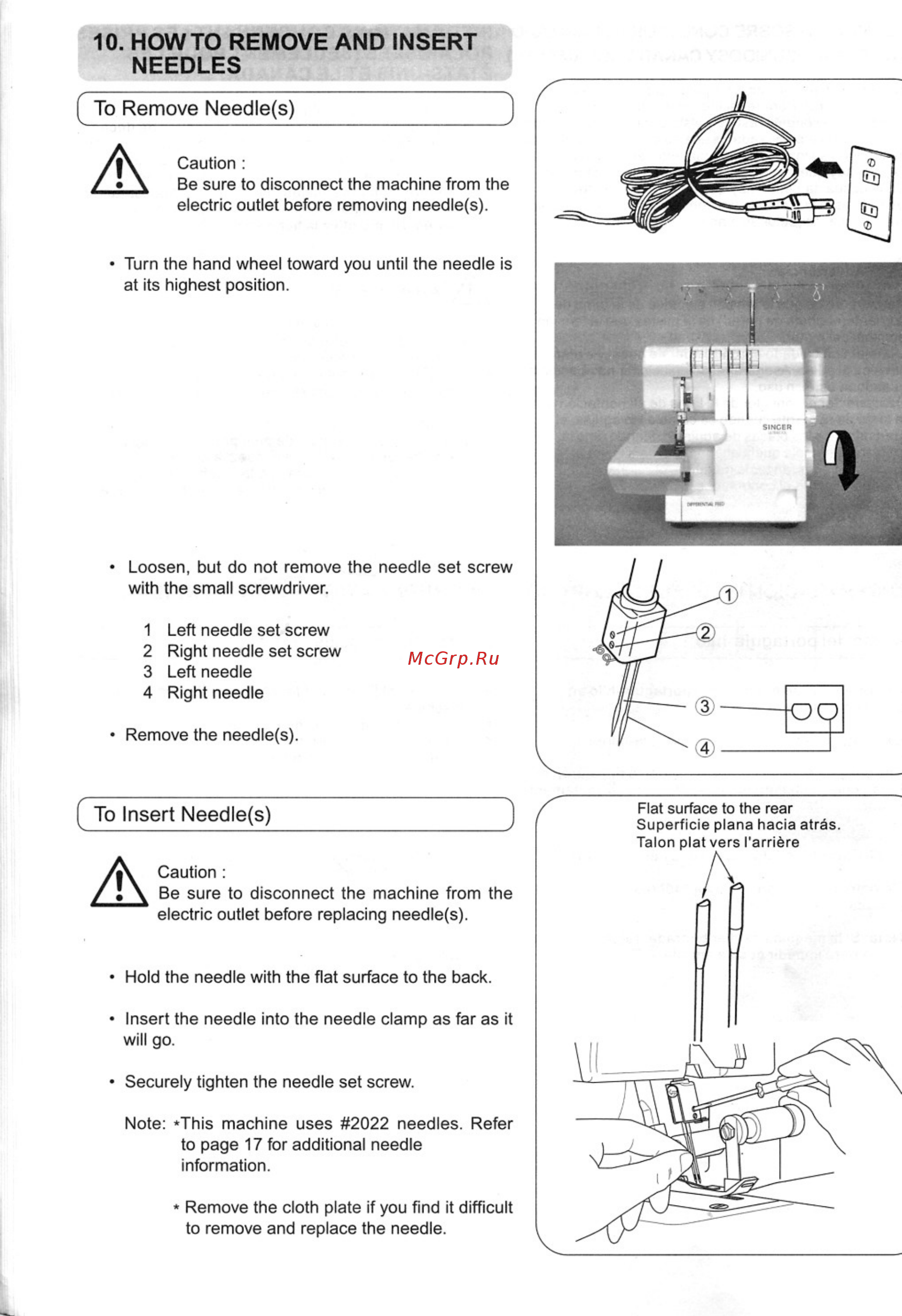

10 HOWTO REMOVE AND INSERT NEEDLES f To Remove Needle s Caution Be sure to disconnect the machine from the electric outlet before removing needle s Turn the hand wheel toward you until the needle is at its highest position Loosen but do not remove the needle set screw with the small screwdriver 1 Left needle set screw 2 Right needle set screw 3 Left needle 4 Right needle Remove the needle s f To Insert Needle s A Caution Be sure to disconnect the machine from the electric outlet before replacing needle s Hold the needle with the flat surface to the back Insert the needle into the needle clamp as far as it will go Securely tighten the needle set screw Note This machine uses 2022 needles Refer to page 17 for additional needle information Remove the cloth plate if you find it difficult to remove and replace the needle
