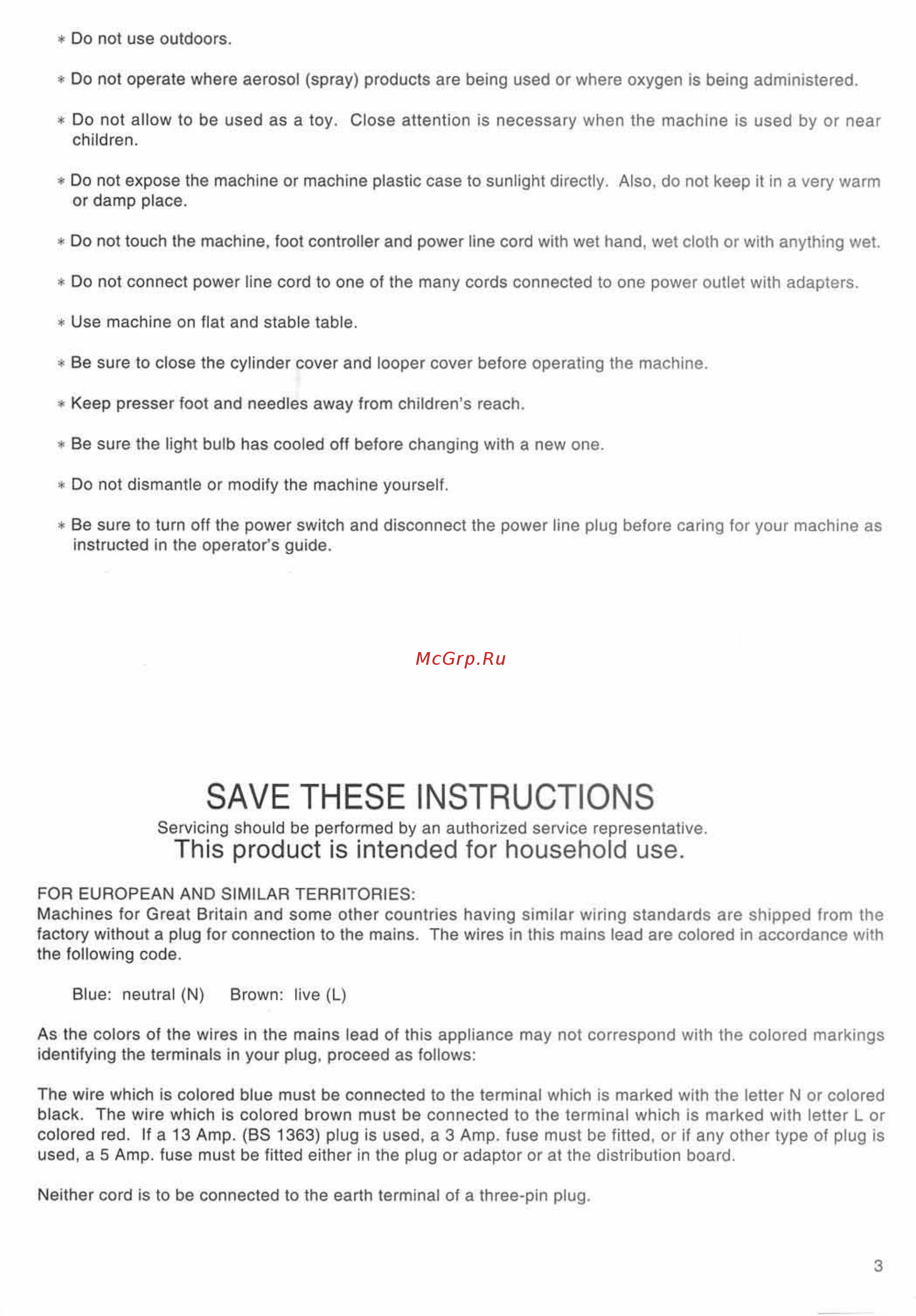

Do not use outdoors Do not operate where aerosol spray products are being used or where oxygen is being administered Do not allow to be used as a toy Close attention is necessary when the machine is used by or near children Do not expose the machine or machine plastic case to sunlight directly Also do not keep it in a very warm or damp place Do not touch the machine foot controller and power line cord with wet hand wet cloth or with anything wet Do not connect power line cord to one of the many cords connected to one power outlet with adapters Use machine on flat and stable table Be sure to close the cylinder cover and looper cover before operating the machine Keep presser foot and needles away from children s reach Be sure the light bulb has cooled off before changing with a new one Do not dismantle or modify the machine yourself Be sure to turn off the power switch and disconnect the power line plug before caring for your machine as instructed in the operator s guide SAVE THESE INSTRUCTIONS Servicing should be performed by an authorized service representative This product is intended for household use FOR EUROPEAN AND SIMILAR TERRITORIES Machines for Great Britain and some other countries having similar wiring standards are shipped from the factory without a plug for connection to the mains The wires in this mains lead are colored in accordance with the following code Blue neutral N Brown live L As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug proceed as follows The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black The wire which is colored brown must be connected to the terminal which is marked with letter L or colored red If a 13 Amp BS 1363 plug is used a 3 Amp fuse must be fitted or if any other type of plug is used a 5 Amp fuse must be fitted either in the plug or adaptor or at the distribution board Neither cord is to be connected to the earth terminal of a three pin plug 3
