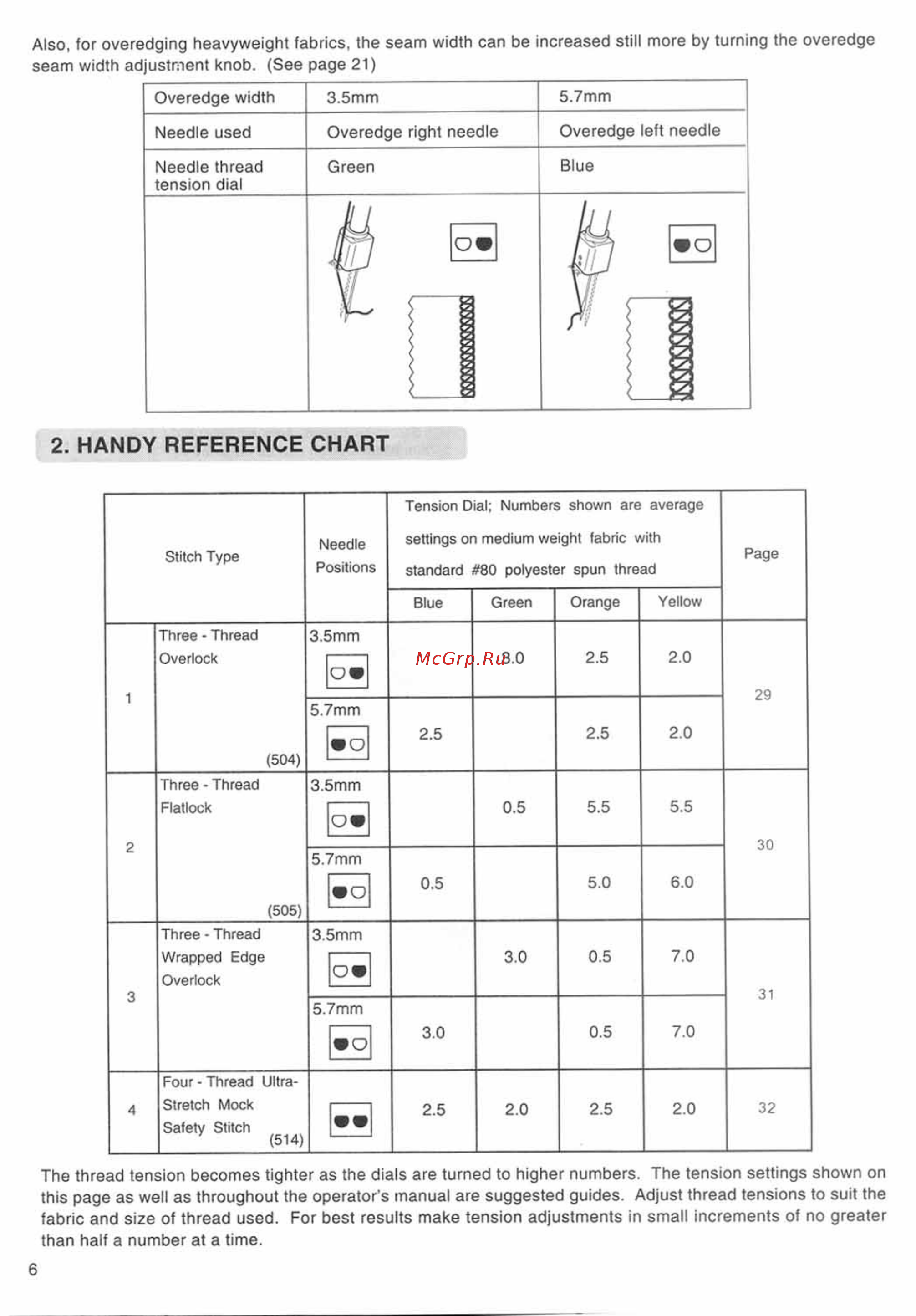

Also for overedging heavyweight fabrics the seam width can be increased still more by turning the overedge seam width adjustment knob See page 21 Overedge width 3 5mm Needle used Overedge right needle Needle thread tension dial Green 2 HANDY REFERENCE CHART Tension Dial Numbers shown are average Stitch Type Needle settings on medium weight fabric with Positions standard 80 polyester spun thread Page Blue Three Thread Green Orange Yellow 3 0 2 5 2 0 3 5mm Overlock OW 29 1 5 7mm 504 Three Thread Flatlock O 2 5 2 5 2 0 5 5 5 5 3 5mm 0 5 O 30 2 5 7mm O 0 5 5 0 6 0 0 5 7 0 505 Three Thread 3 5mm Wrapped Edge 3 0 O Overlock 31 3 5 7mm O 3 0 0 5 7 0 2 5 2 0 Four Thread Ultra 4 Stretch Mock Safety Stitch 2 5 2 0 32 514 The thread tension becomes tighter as the dials are turned to higher numbers The tension settings shown on this page as well as throughout the operator s manual are suggested guides Adjust thread tensions to suit the fabric and size of thread used For best results make tension adjustments in small increments of no greater than half a number at a time 6
