Singer 14SH654 FINISHING TOUCH [31/48] Correct balance

Содержание

• Operator s guide 1
• Singer 1
• Important safety instructions 2
• Sh644 654 2
• Danger 3
• Important safety instructions 3
• Warning 3
• Save these instructions 4
• This product is intended for household use 4
• Contents 5
• A 5 mm wide overedge seams 6
• Depending on the needle positions used this machine can sew 3 thread standard width 3 mm overedge and 6
• Flatlock 6
• Four thread 6
• Overlock 6
• Selection of stitches 6
• Stitch type reference 6
• Stretch mock safety stitch 6
• This machine is capable of producing various types of stitches according to the combination of needle positions threading methods tension adjustment 6
• Three thread 6
• Wrapped edge overlock 6
• Also for overedging heavyweight fabrics the seam width can be increased still more by turning the overedge seam width adjustment knob see page 21 7
• Handy reference chart 7
• Needle thread tension dial 7
• Needle used overedge right needle 7
• Overedge width 3 mm 7
• The thread tension becomes tighter as the dials are turned to higher numbers the tension settings shown on this page as well as throughout the operator s manual are suggested guides adjust thread tensions to suit the fabric and size of thread used for best results make tension adjustments in small increments of no greater than half a number at a time 7
• Accessories 8
• Needle information 8
• Principal parts 9
• How to open looper cover 10
• Preparation prior to sewing 10
• Principal parts behind looper cover 10
• Warning 10
• Polarized plug information for u s a canada only 11
• Preparation for threading 11
• This appliance has a polarized plug one blade wider than the other to reduce the risk of electric shock this plug is intended to fit in a polarized outlet only one way if the plug does not fit fully in the outlet reverse the plug if it still does not fit contact a qualified electrician to install the proper outlet do not modify the plug in any way 11
• Warning 11
• F to insert needle s 12
• F to remove needle s 12
• Howto remove and insert needles 12
• Threading diagram 13
• Threading the machine 13
• Ç understanding the color code 13
• Threading the lower looper yellow 15
• Threading the right needle green 17
• Threading the left needle blue 19
• Important threading information 20
• How to change threads 21
• Tie on method 21
• F width adjustment with adjustment knok 22
• How to adjust the seam width 22
• How to adjust the stitch length 22
• Width adjustment by changing needle position 22
• How to adjust the presser foot pressure 23
• Width adjustment knob__________________ 23
• Differential feed 24
• Gathered qveredge 24
• To set the differential feed adjusting lever 24
• Stretch overedge 25
• To set the differential feed adjusting lever 25
• How to disengage movable upper knife 26
• To place movable knife in nonworking position 26
• To place movable knife in working position 26
• Free arm sewing tubular work 27
• To remove the cloth plate 27
• To replace the cloth plate 27
• Standard overedge and rolled hem stitching 28
• To sew rolled hem 28
• To sew standard overedge 28
• Chaining off and test 29
• Sewing 29
• 3 thread overlock 30
• And test sew on a sample of your fabric 30
• Correct balance 30
• Fabric tension dial 30
• How to balance 30
• Needle tension dial blue or green to a higher number 30
• Note these are suggested tension settings only 30
• Of fabric turn the lower looper thread tension dial yellow 30
• Of the fabric turn the upper looper thread tension dial 30
• Or turn the lower looper thread tension dial 30
• Or turn the upper looper thread tension dial 30
• Orange to a higher number 30
• Orange to a lower number 30
• Set each tension dial to settings shown at right 30
• Suggested tension setting 30
• Tension settings are effected by 30
• Toward a higher number 30
• Type and thickness of fabric 2 needle size 3 size type and fiber content of thread 30
• When the lower looper thread appears on the top 30
• When the needle thread is too loose turn the 30
• When the upper looper thread lies on the underside 30
• Yellow to a lower number 30
• 3 thread flatlock 31
• And test sew on a sample of your fabric 31
• Correct balance 31
• Green toward a higher number 31
• Green toward a lower number 31
• How to balance 31
• Note these are suggested tension settings only 31
• Or turn the needle thread tension dial blue or 31
• Or turn the upper looper thread tension dial 31
• Orange toward a higher number 31
• Orange toward a lower number 31
• Set each tension dial to settings shown at right 31
• Tension settings are effected by 31
• Toward a higher number 31
• Turn the lower looper thread tension dial yellow 31
• Turn the needle thread tension dial blue or 31
• Turn the upper looper thread tension dial 31
• Type and thickness of fabric 2 needle size 3 size type and fiber content of thread 31
• When the lower looper thread tension is too loose 31
• When the needle thread tension is too loose 31
• When the upper looper thread tension is too loose 31
• 3 thread wrapped edge overlock j 32
• Correct balance______________________ 32
• To balance__________________________ 32
• 4 thread ultra stretch mock safety stitch 33
• And test sew on a sample of your fabric 33
• Correct balance__________________________ 33
• How to balance__________________________ 33
• Note these are suggested tension settings only 33
• Of the fabric turn lower looper thread tension dial yellow 33
• Of the fabric turn the upper looper thread tension dial 33
• Or turn lower looper thread tension dial yellow 33
• Or turn the upper looper thread tension dial 33
• Orange to a higher number 33
• Orange toward a lower number 33
• Set each tension dial to settings shown at right 33
• Tension settings are effected by 33
• To a lower number 33
• Toward a higher number 33
• Turn the left needle thread tension dial blue 33
• Turn the right needle thread tension dial green 33
• Type and thickness of fabric 2 needle size 3 size type and fiber content of thread 33
• When the left needle thread tension is too loose 33
• When the lower looper thread appears on the top 33
• When the right needle thread tension is too loose 33
• When the upper looper thread lies on the underside 33
• How to sew a rolled hem 34
• Machine set up 34
• 3 thread upper looper thread wrapped 35
• And test sew on a sample of your fabric 35
• Correct balance 35
• I 1 3 thread standard rolled hem stitching 35
• Looper with wooly nylon and the needle and lower looper with lightweight regular thread 35
• Note for a beautiful rolled hem thread the upper 35
• Rolled hem stitching 35
• Set each tension dial to settings shown at right 35
• Additional information about rolled hemming 36
• To secure the rolled hem thread chain 36
• 1 machine set up 37
• 2 flatlockinq a seam 37
• F how to sew a matlock decorative seam 37
• Stitch variations and sewing techniques 37
• 3 decorative flatlockinq____________________ 38
• 4 additional information about flailocking_________ 38
• How to sew an overlock blind hem 39
• How to sew pin tucks 39
• 1 outside corner 40
• 2 inside corner 40
• Turning square corners 40
• Pin placement 41
• Securing the thread chain 41
• Braiding by chaining off j 42
• How to reinforce a seam j 42
• Cleaning the machine j 43
• I oiling the machine__________________________ 43
• Machine maintenance 43
• How to replace the stationary knife 44
• How to exchange light bulb 45
• Troubleshooting chart 46
• Relationship between cloth thread and needle 47
• Specification 48

Похожие устройства

• Singer 14HD854 HEAVY DUTY Инструкция по эксплуатации
• X-PROFF 14U557 Инструкция по эксплуатации
• Acme GK 357 B N Инструкция по эксплуатации
• Acme GK 357 B Инструкция по эксплуатации
• Brother COVER STITCH CV 3550 Инструкция по эксплуатации
• Brother M 2340 CV Инструкция по эксплуатации
• Brother M 2340 CV Буклет
• Brother COVER STITCH CV 3440 Инструкция по эксплуатации
• Elna 444 Инструкция по эксплуатации
• Elna EASYCOVER Инструкция по эксплуатации
• Janome COVERPRO 7 Инструкция по эксплуатации
• Janome COVERPRO II (COVER PRO 2 CP) Инструкция по эксплуатации
• Janome COVERPRO D MAX Инструкция по эксплуатации
• Janome COVERPRO 7 PLUS Инструкция по эксплуатации
• Eurometalnova DUETTO PLUS ASSE Инструкция по эксплуатации
• Krausen CLASSIC Инструкция по эксплуатации
• Krausen PERFETTO PLUS Инструкция по эксплуатации
• Krausen PERFETTO Инструкция по эксплуатации
• Krausen EVOLUTION Инструкция по эксплуатации
• Krausen PERFETTO LUXE Инструкция по эксплуатации

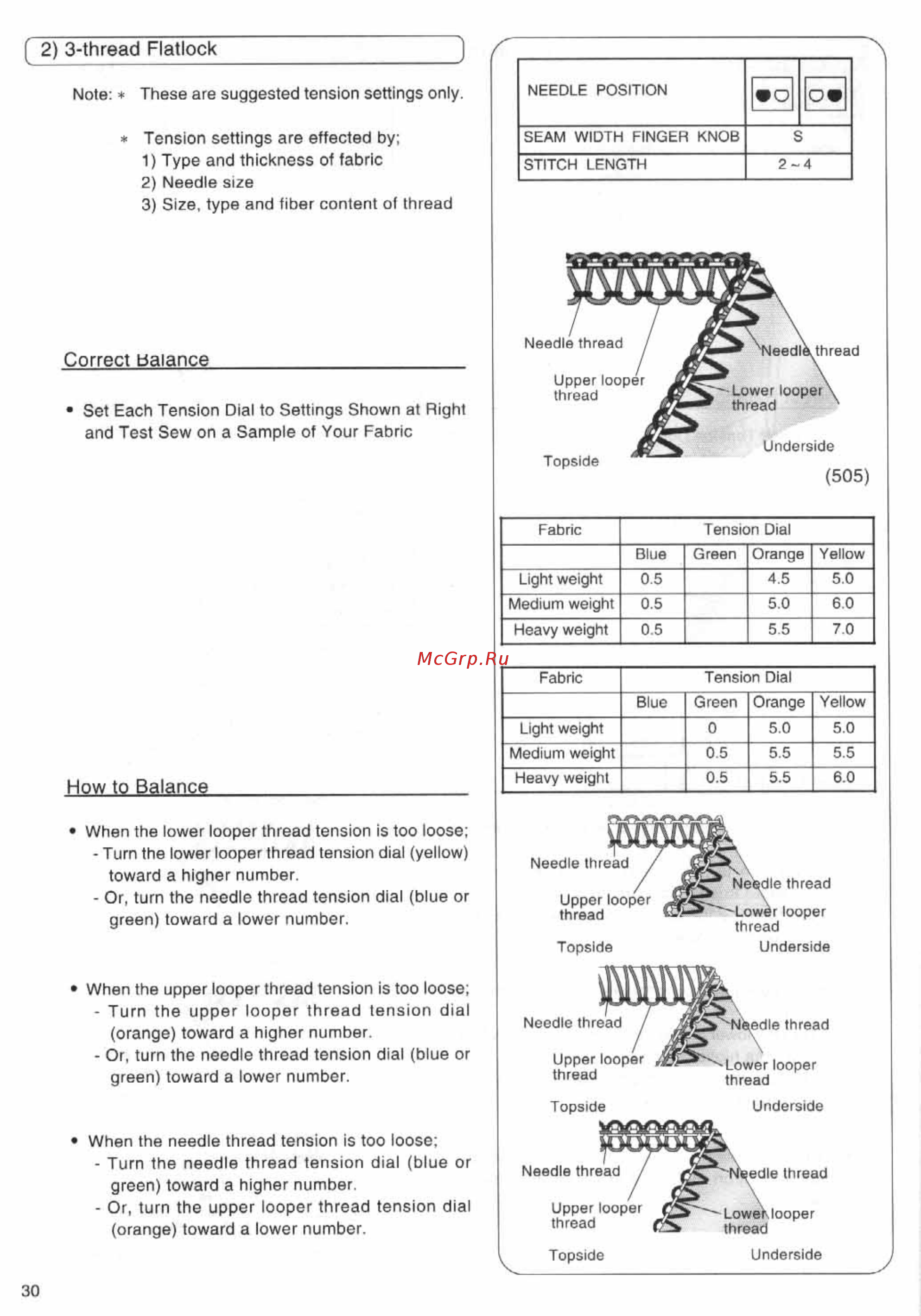

2 3 thread Flatlock Note These are suggested tension settings only Tension settings are effected by 1 Type and thickness of fabric 2 Needle size 3 Size type and fiber content of thread Needle thread thread Correct balance Upper looper thread thread Set Each Tension Dial to Settings Shown at Right and Test Sew on a Sample of Your Fabric Underside Topside 505 Tension Dial Fabric Blue 0 5 4 5 5 0 0 5 5 0 6 0 Heavy weight 0 5 5 5 7 0 Tension Dial Yellow 0 5 0 5 0 5 5 5 5 Heavy weight 0 5 5 5 6 0 Needle thread Needle thread Upper looper thread Lower looper thread Underside i Needle thread Upper looper thread Topside Needle thread Upper looper thread Topside 30 Orange 0 5 Topside When the needle thread tension is too loose Turn the needle thread tension dial blue or green toward a higher number Or turn the upper looper thread tension dial orange toward a lower number Green Medium weight Light weight When the upper looper thread tension is too loose Turn the upper looper thread tension dial orange toward a higher number Or turn the needle thread tension dial blue or green toward a lower number Yellow Light weight Blue When the lower looper thread tension is too loose Turn the lower looper thread tension dial yellow toward a higher number Or turn the needle thread tension dial blue or green toward a lower number Orange Medium weight Fabric How to Balance Green edle thread Lower looper thread Underside edle thread Lowek looper thread Underside
