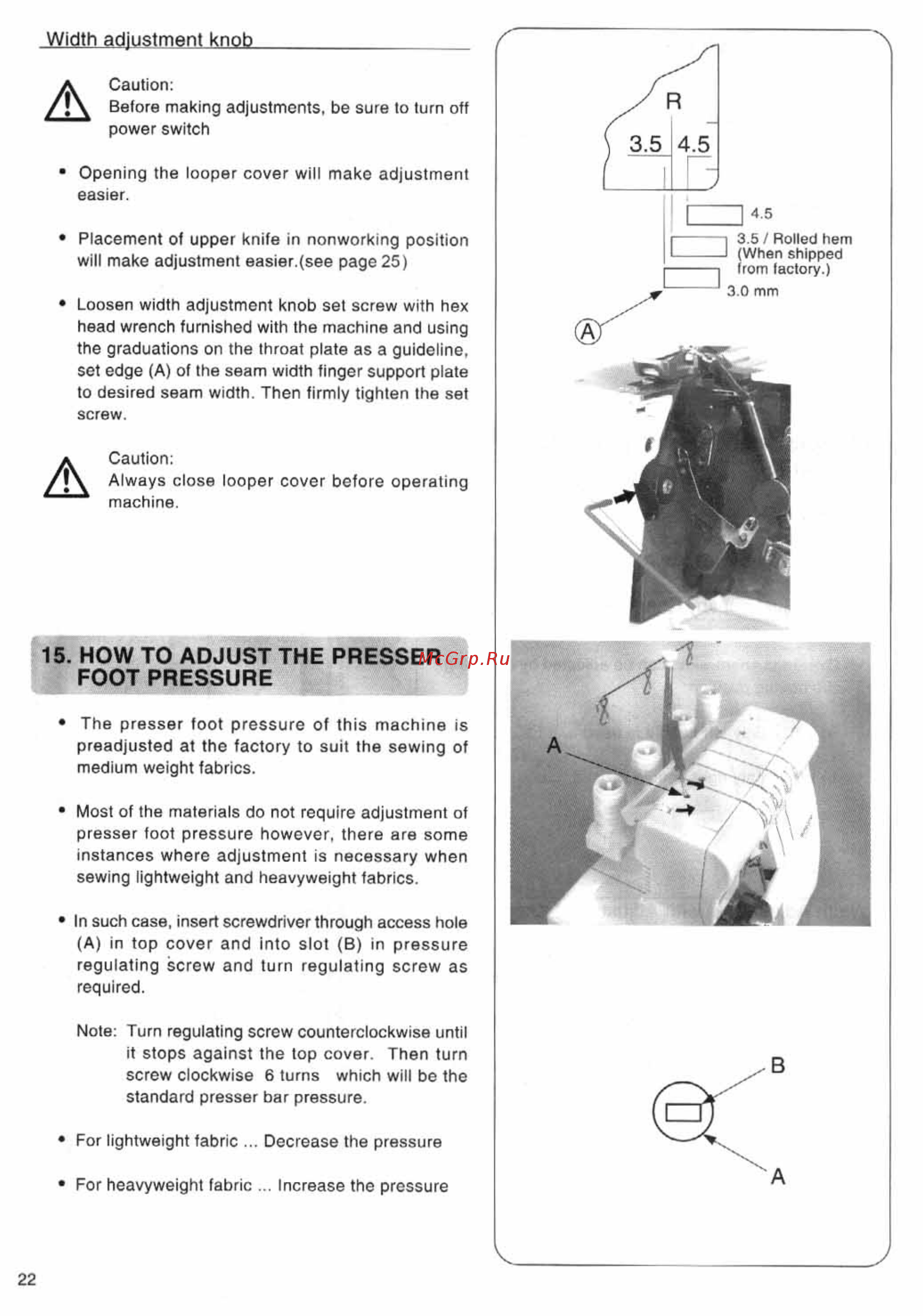

Width adjustment knob__________________ A Caution Before making adjustments be sure to turn off power switch Opening the looper cover will make adjustment easier 2 4 5 Placement of upper knife in nonworking position will make adjustment easier see page 25 Loosen width adjustment knob set screw with hex head wrench furnished with the machine and using the graduations on the throat plate as a guideline set edge A of the seam width finger support plate to desired seam width Then firmly tighten the set screw A Caution Always close looper cover before operating machine 15 HOW TO ADJUST THE PRESSER FOOT PRESSURE The presser foot pressure of this machine is preadjusted at the factory to suit the sewing of medium weight fabrics Most of the materials do not require adjustment of presser foot pressure however there are some instances where adjustment is necessary when sewing lightweight and heavyweight fabrics In such case insert screwdriver through access hole A in top cover and into slot B in pressure regulating screw and turn regulating screw as required Note Turn regulating screw counterclockwise until it stops against the top cover Then turn screw clockwise 6 turns which will be the standard presser bar pressure For lightweight fabric Decrease the pressure For heavyweight fabric Increase the pressure 22 3 5 Rolled hem When shipped from factory 3 0 mm
