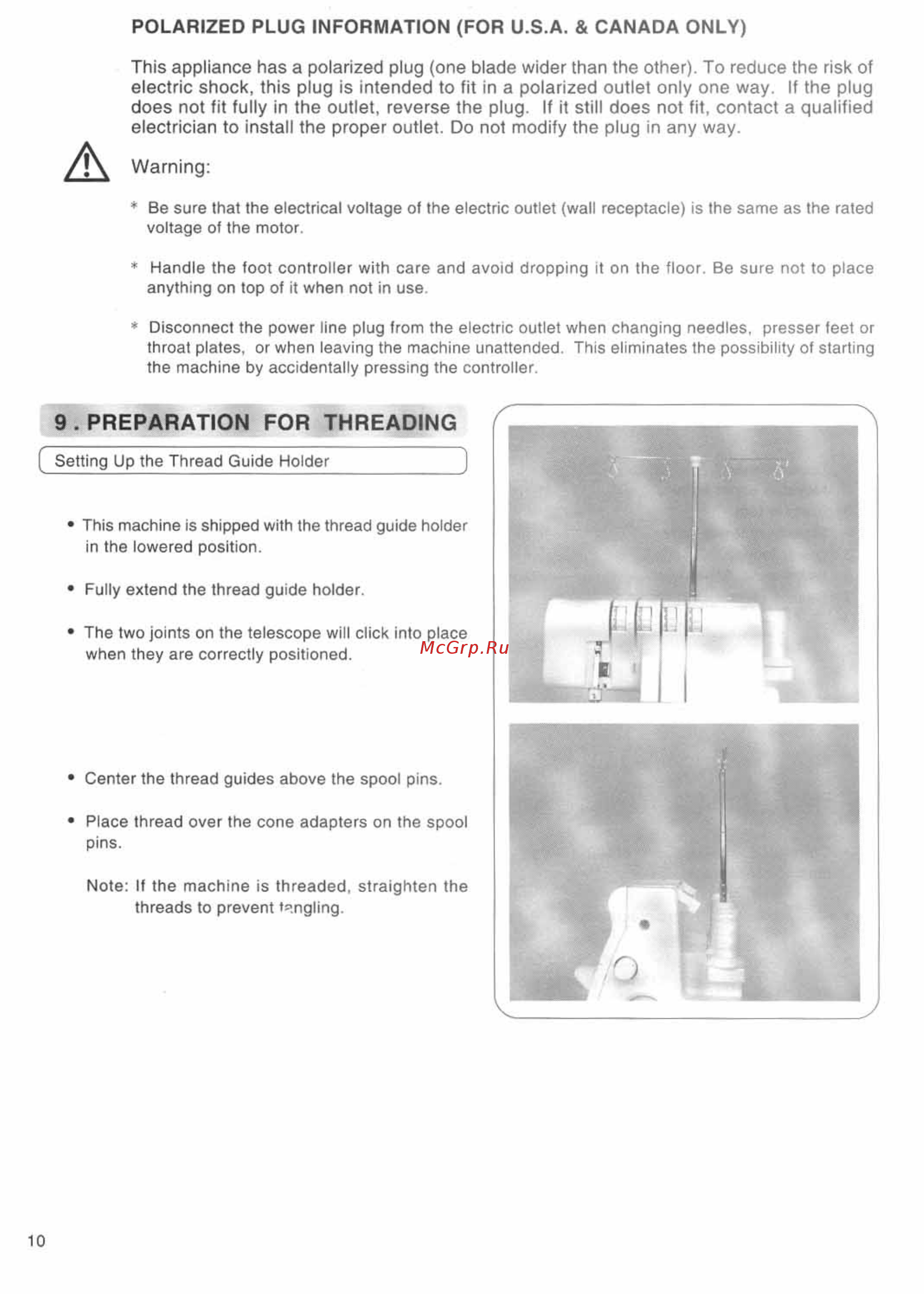

POLARIZED PLUG INFORMATION FOR U S A CANADA ONLY This appliance has a polarized plug one blade wider than the other To reduce the risk of electric shock this plug is intended to fit in a polarized outlet only one way If the plug does not fit fully in the outlet reverse the plug If it still does not fit contact a qualified electrician to install the proper outlet Do not modify the plug in any way Warning Be sure that the electrical voltage of the electric outlet wall receptacle is the same as the rated voltage of the motor Handle the foot controller with care and avoid dropping it on the floor Be sure not to place anything on top of it when not in use Disconnect the power line plug from the electric outlet when changing needles presser feet or throat plates or when leaving the machine unattended This eliminates the possibility of starting the machine by accidentally pressing the controller 9 PREPARATION FOR THREADING Setting Up the Thread Guide Holder This machine is shipped with the thread guide holder in the lowered position Fully extend the thread guide holder The two joints on the telescope will click into place when they are correctly positioned Center the thread guides above the spool pins Place thread over the cone adapters on the spool pins Note If the machine is threaded straighten the threads to prevent tangling 10
