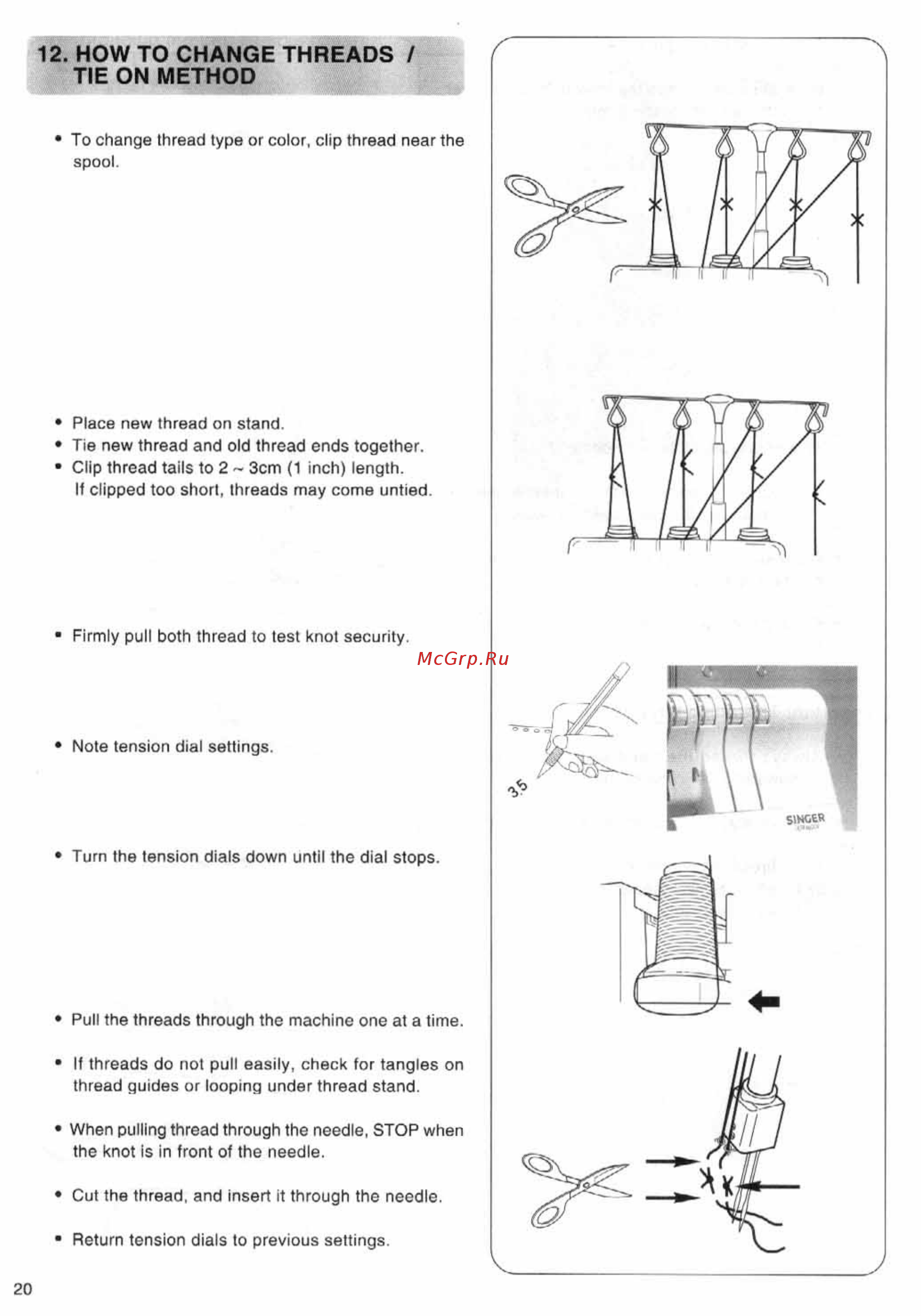

12 HOW TO CHANGE THREADS TIE ON METHOD To change thread type or color clip thread near the spool Place new thread on stand Tie new thread and old thread ends together Clip thread tails to 2 3cm 1 inch length If clipped too short threads may come untied Firmly pull both thread to test knot security Note tension dial settings Turn the tension dials down until the dial stops Pull the threads through the machine one at a time If threads do not pull easily check for tangles on thread guides or looping under thread stand When pulling thread through the needle STOP when the knot is in front of the needle Cut the thread and insert it through the needle Return tension dials to previous settings 20
