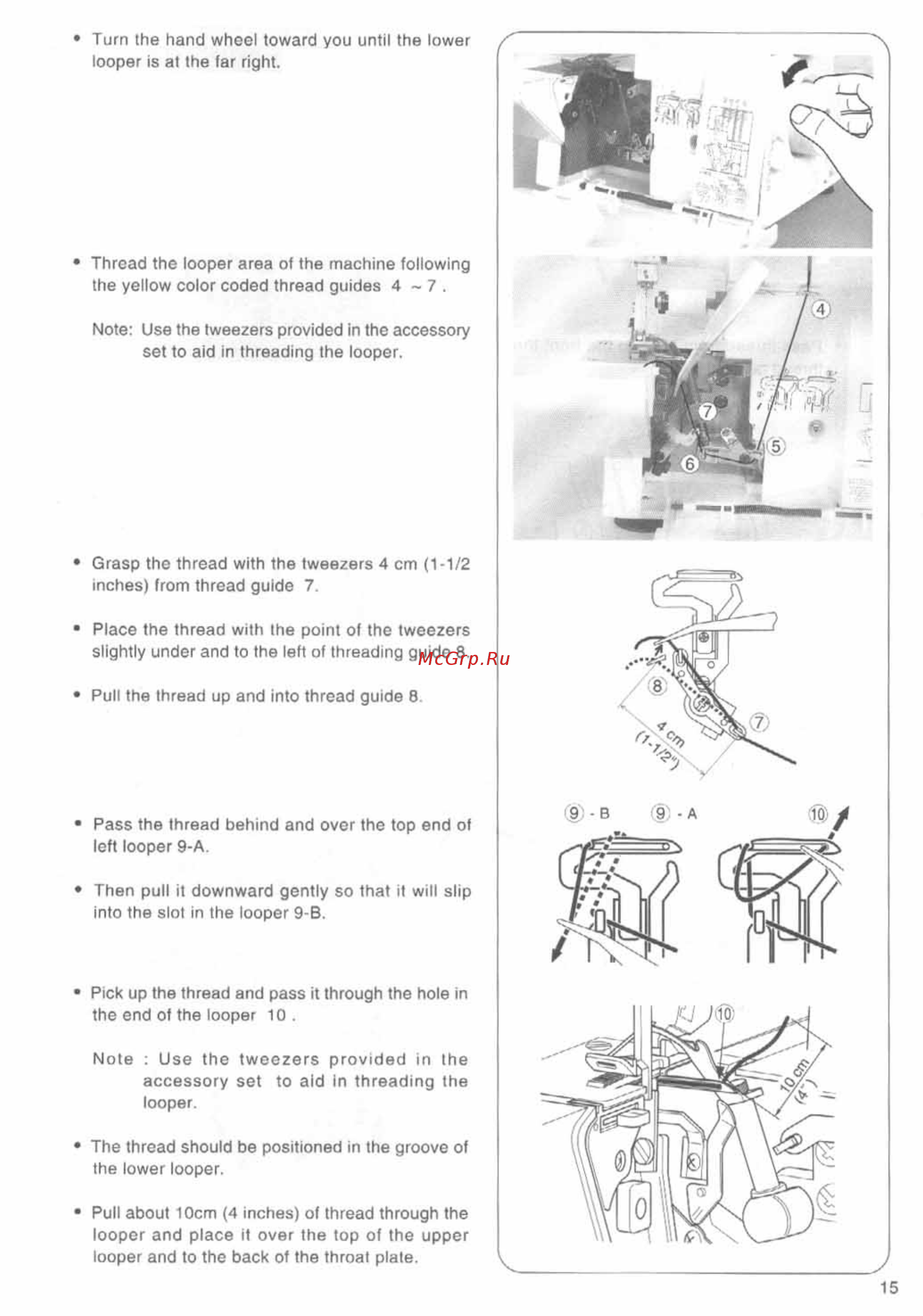

Turn the hand wheel toward you until the lower looper is at the far right Thread the looper area of the machine following the yellow color coded thread guides 4 7 Note Use the tweezers provided in the accessory set to aid in threading the looper Grasp the thread with the tweezers 4 cm 1 1 2 inches from thread guide 7 Place the thread with the point of the tweezers slightly under and to the left of threading guide 8 Pull the thread up and into thread guide 8 Pass the thread behind and over the top end of left looper 9 A Then pull it downward gently so that it will slip into the slot in the looper 9 B Pick up the thread and pass it through the hole in the end of the looper 10 Note Use the tweezers provided in the accessory set to aid in threading the looper The thread should be positioned in the groove of the lower looper Pull about 10cm 4 inches of thread through the looper and place it over the top of the upper looper and to the back of the throat plate 15
