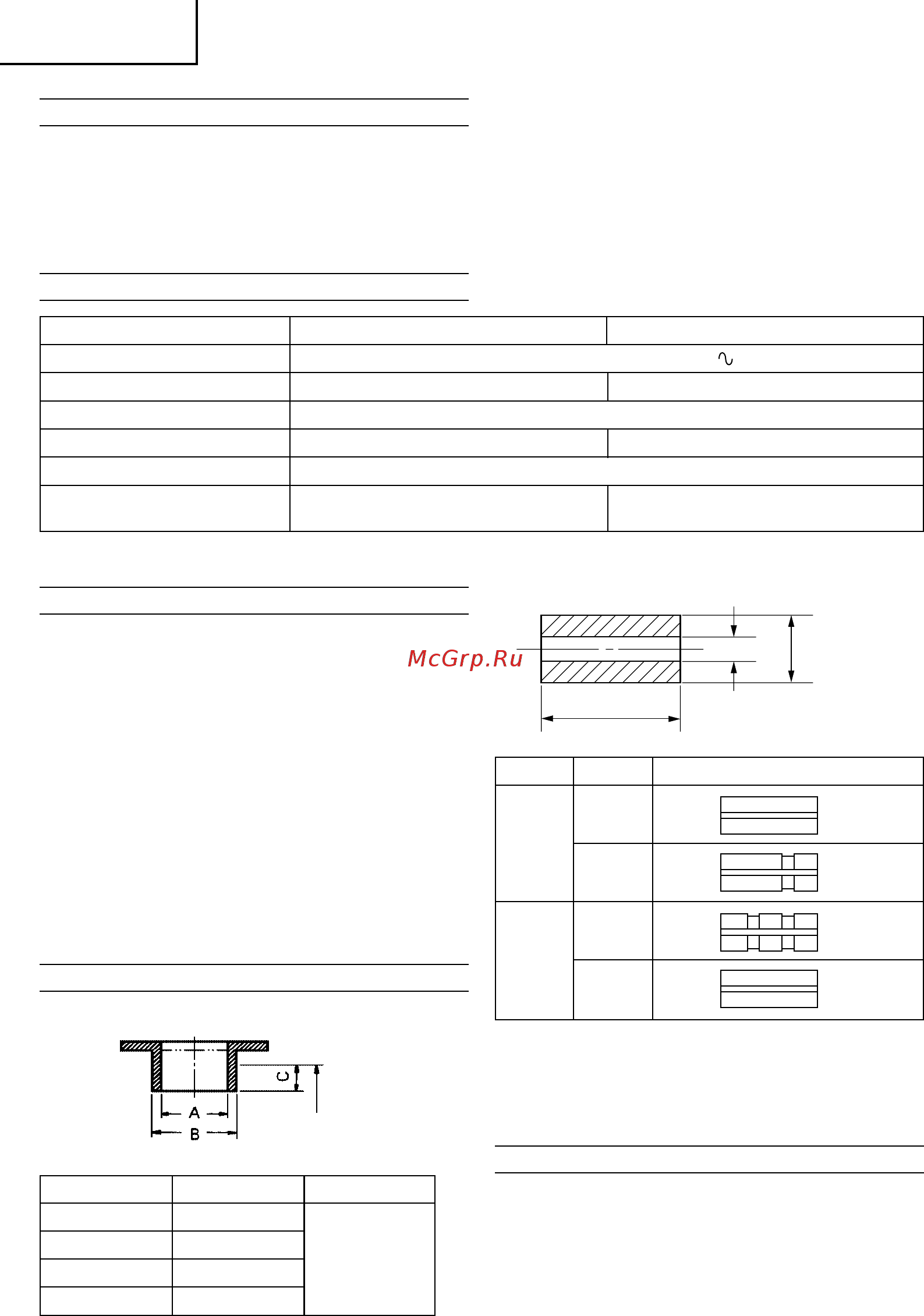

7
English
SPECIFICATIONS
*Be sure to check the nameplate on product as it is subject to change by areas.
STANDARD ACCESSORIES
(1) Straight Guide ....................................................... 1
(2) Bar Holder .............................................................. 1
Guide Bar ............................................................... 2
Feed Screw ............................................................ 1
Wing Bolt ............................................................... 1
(3) Dust Guide ............................................................. 1
(4) Dust Guide Adapter.............................................. 1
(5) Template Guide ..................................................... 1
(6) Template Guide Adapter ..................................... 1
(7) Centering Gauge ................................................... 1
(8) Knob ........................................................................ 1
(9) Wrench .................................................................... 1
(10) 8mm or 1/4” Collet Chuck.................................. 1
(11) Wing Bolt (A) ........................................................ 4
(12) Lock Spring ............................................................ 2
Standard accessories are subject to change without
notice.
OPTIONAL ACCESORIES - sold separately
(1) Template Guide
Model M12V2 M12SA2
Voltage (by areas)* (110V, 120V, 220V, 230V, 240V)
Power Input* 2000 W 1700 W
Collet Chuck Capacity 12 mm or 1/2”
No-load speed 8000 – 22000 min
–1
22000 min
–1
Main Body Stroke 65 mm
Weight (without cord and
standard accessories)
6.3 kg 6.2 kg
PRECAUTIONS ON USING ROUTER
1. Single-hand operation is unstable and dangerous.
Ensure that both handles are gripped firmly during
operation.
2. The bit is very hot immediately after operation.
Avoid bare hand contact with the bit for any
reason.
Bottom of Sub
base
(2) Chuck sleeve
(3) Trimmer Guide (Fig. 20)
(4) Template Guide Adapter (B)
For the product of Trend.
Optional accessories are subject to change without notice.
APPLICATIONS
䡬 Woodworking jobs centered on grooving and
chamfering.
d
D
20 mm
D d Shape of chuck sleeve
12 mm
6 mm
No groove
3 / 8”
1 groove
1 / 2”
3 / 8”
2 grooves
10 mm
No groove
ABC
16.5 mm 18 mm
18.5 mm 20 mm
4.5 mm
25.5 mm 27 mm
28.5 mm 30 mm
