4
HOOD
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
600
Min. mm.
420
Min. mm.
V
1
2
3
N
A
B
1 2
3
4
5
12345
1
2
3
4
5
R
S
T
N
R
S
N
R
N
400 3N
H05RR-F 5x2.5 CEI-UNEL 35363
400V 2N
H05RR-F 4x2.5 CEI-UNEL 35363
230V 1N
H07RN-F 3x4 CEI-UNEL 35364

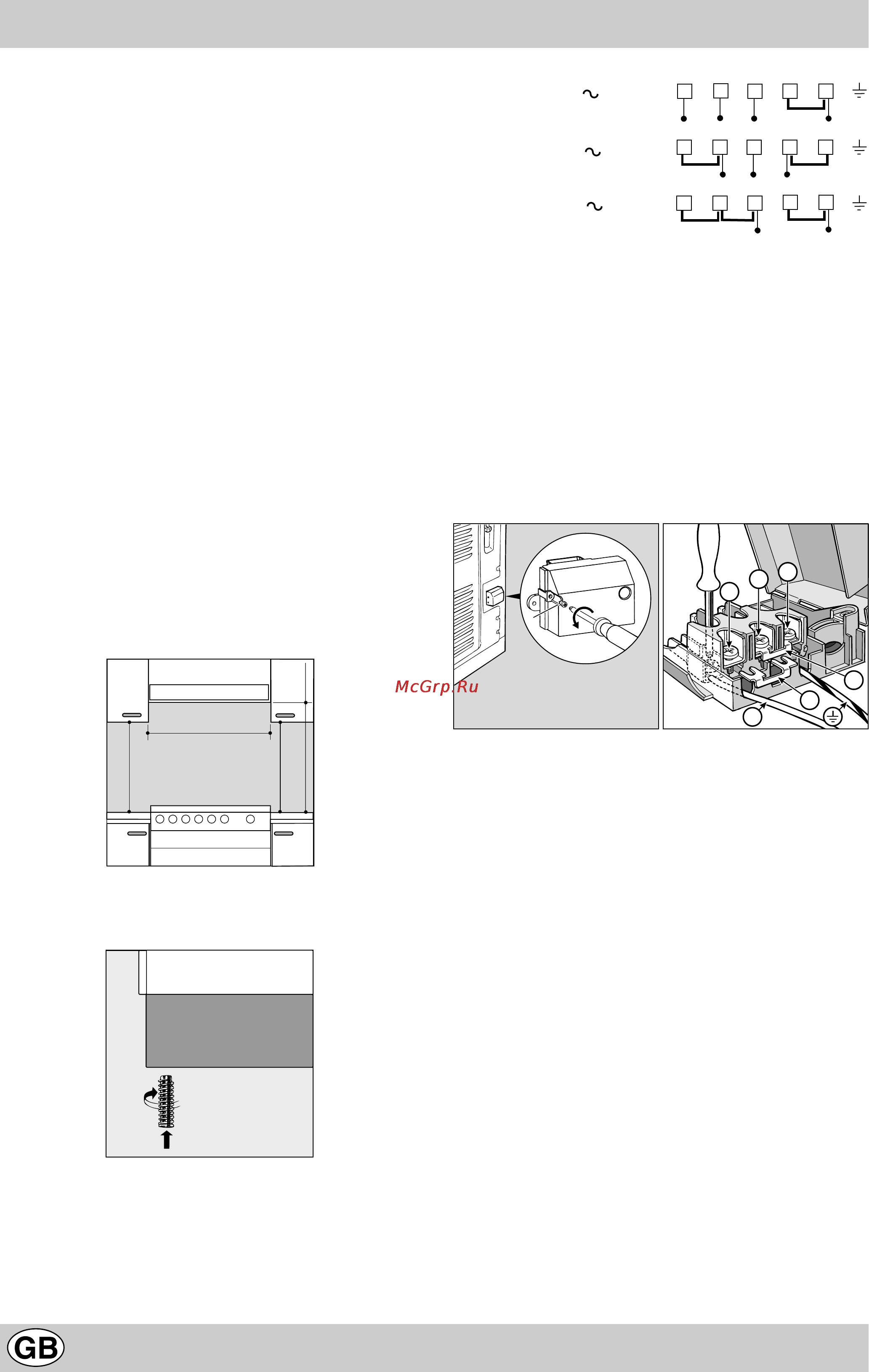

Installation
The following instructions should be carried out by a qualified
technician to ensure that the appliance is installed, adjusted
and technically serviced correctly in compliance with current
regulations.
Important: always disconnect the cooker from the power
supply cable before carrying out any maintenance operations
or adjustments, etc.
Positioning
The appliance may be installed next to cabinets that are not
taller than the worktop. The following precautions must be
taken when installing the cooker:
a) Kitchen cabinets adjacent to the appliance and taller than
the worktop must be at least 200 mm from the edge of
the top.
b) Hoods must be installed according to their relative
installation instruction manuals and at a minimum distance
of 650 mm from the worktop.
c) Position the wall cabinets adjacent to the hood at a
minimum height of 420 mm from the worktop (see figure).
d) If the hob is installed beneath a wall cabinet, the latter
must be situated at a minimum of 700 mm (millimetres)
above the worktop as shown in the figure.
e) The installation cavity should have the dimensions
indicated in the figure.
Levelling
Adjustable feet (see fig. 1) are supplied with the cooker in
order to ensure it is perfectly level. These may be screwed
into the holes provided on each corner of the base of the
cooker.
Electrical connection
The cable should be suited to the type of electrical connection
used (see connection diagram below).
Installing the power supply cable
To open the terminal board:
• Loosen the screw “V”.
• Remove the junction block cover by pulling it.
To install the power supply cable, follow the instructions below:
• position the small A-B connection according to the type
of connection you wish to carry out, following the diagram
in figure 3.
Note: the Factory prepares small connections for 230V single-
phase connection (contacts 1-2-3 are connected to each
other). The 4-5 jumper is located on the lower area of the
terminal board.
• Position the cables (N and
6) as demonstrated in the
figure and tighten the corresponding screws.
• Fasten the remaining cables to terminals 1-2-3.
• Secure the power supply cable by fastening the cable
clamp screw then replace the cover using the screw “V”.
Connecting the supply cable to the mains
Install a standardised plug corresponding to the load indicated
on the data plate. If the appliance is directly connected to the
mains supply, an omnipolar circuit-breaker (switch) should
be fitted, with a minimum contact opening of 3 mm. This
switch must be able to withstand the maximum load of the
appliance and must conform to all current safety regulations
(the earth wire should not be interrupted by the switch). The
power supply cable should be positioned in such a way that
it does not reach temperatures of more than 50°C over the
temperature of the room, along its whole length. Before
connecting the appliance to the power supply, make sure
that:
• The modulating valve and the electricity supply can
withstand the maximum power of the appliance (see data
plate for details).
• The power supply has an efficient earthing system that
conforms to current regulations.
• the socket or the switch is easily accessible once the
cooker has been installed.
