Page 11

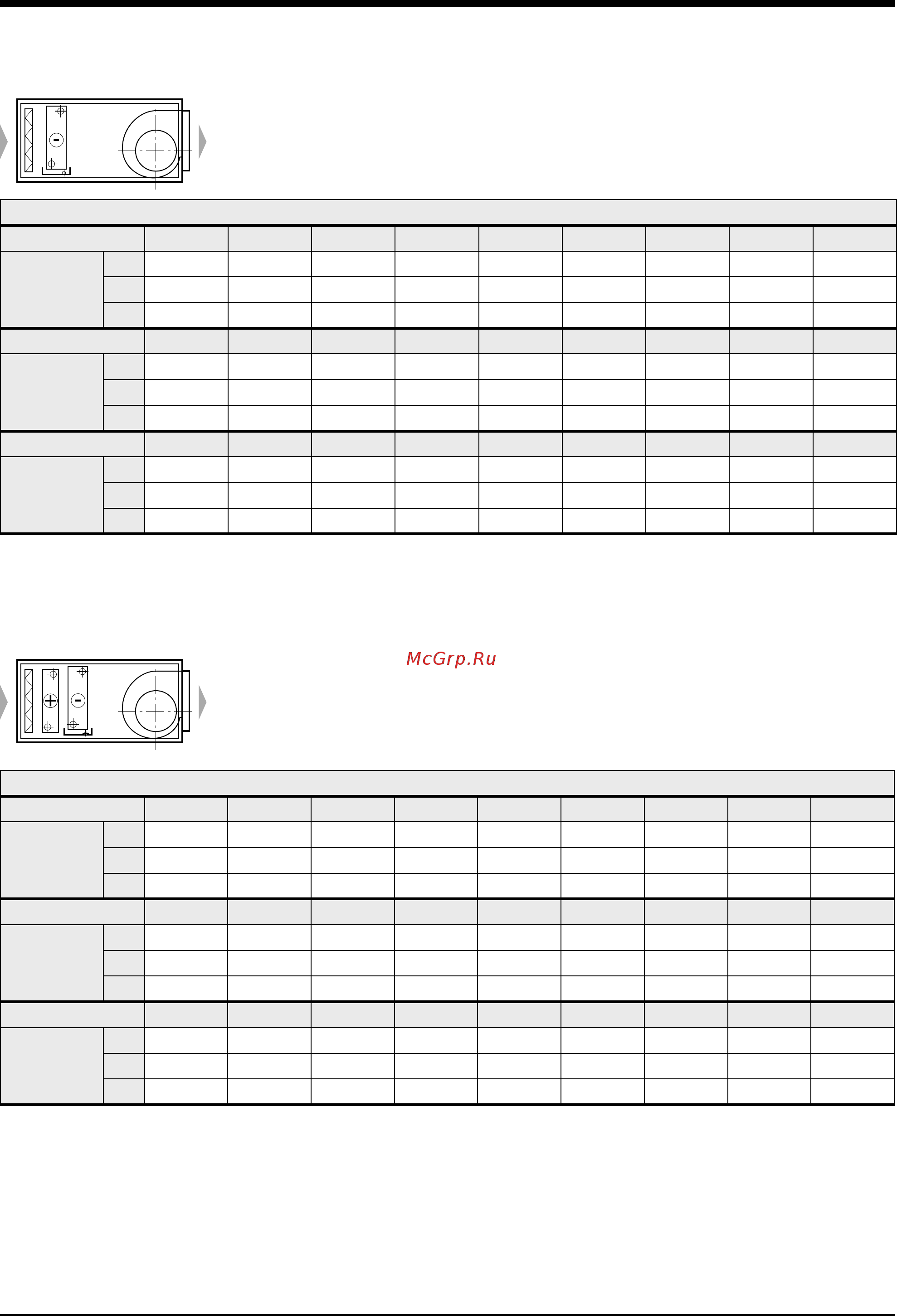

Quick Selection - Air flow/External Static Pressure (continued)

External static pressure (Pa)

Air flow (m

/h) 500 600 700 900 1100 1300 1500 1700

1.39

LS 224 153 40 - - - - - -

MS - - - 257 201 120 - - -

HS - - - - - 218 174 120 -

Air flow (m

/h) 700 1000 1300 1600 1900 2200 2500 2800 3100

2.69

LS - 190 148 84 - - - - -

MS - - 240 204 154 87 - - -

HS - - - - - 189 137 78 -

Air flow (m

/h) 1600 2000 2400 2800 3200 3600 4000 4400 4800

3.99

LS - 250 203 137 46 - - - -

MS - - 239 185 124 44 - - -

HS - - - 219 176 126 26 - -

External static pressure (Pa)

Air flow (m

/h) 500 600 700 900 1100 1300 1500 1700

1.39

LS 216 144 30 - - - - - -

MS - - - 245 185 98 - - -

HS - - - - - 196 147 86 -

Air flow (m

/h) 700 1000 1300 1600 1900 2200 2500 2800 3100

2.69

LS - 182 138 70 - - - - -

MS - - 230 190 136 64 - - -

HS - - - - - 166 109 42 -

Air flow (m

/h) 1600 2000 2400 2800 3200 3600 4000 4400 4800

3.99

LS - 238 187 119 20 - - - -

MS - - 223 167 98 12 - - -

HS - - - 201 150 94 - - -

Fan section incl. G2 filter and cooling coil

Fan section incl. G2 filter, heating coil and cooling coil

For other arrangements determine the fan speed and the characteristics from charts of component air pressure drops and fan curves (pages

12 and 13).
