Page 25

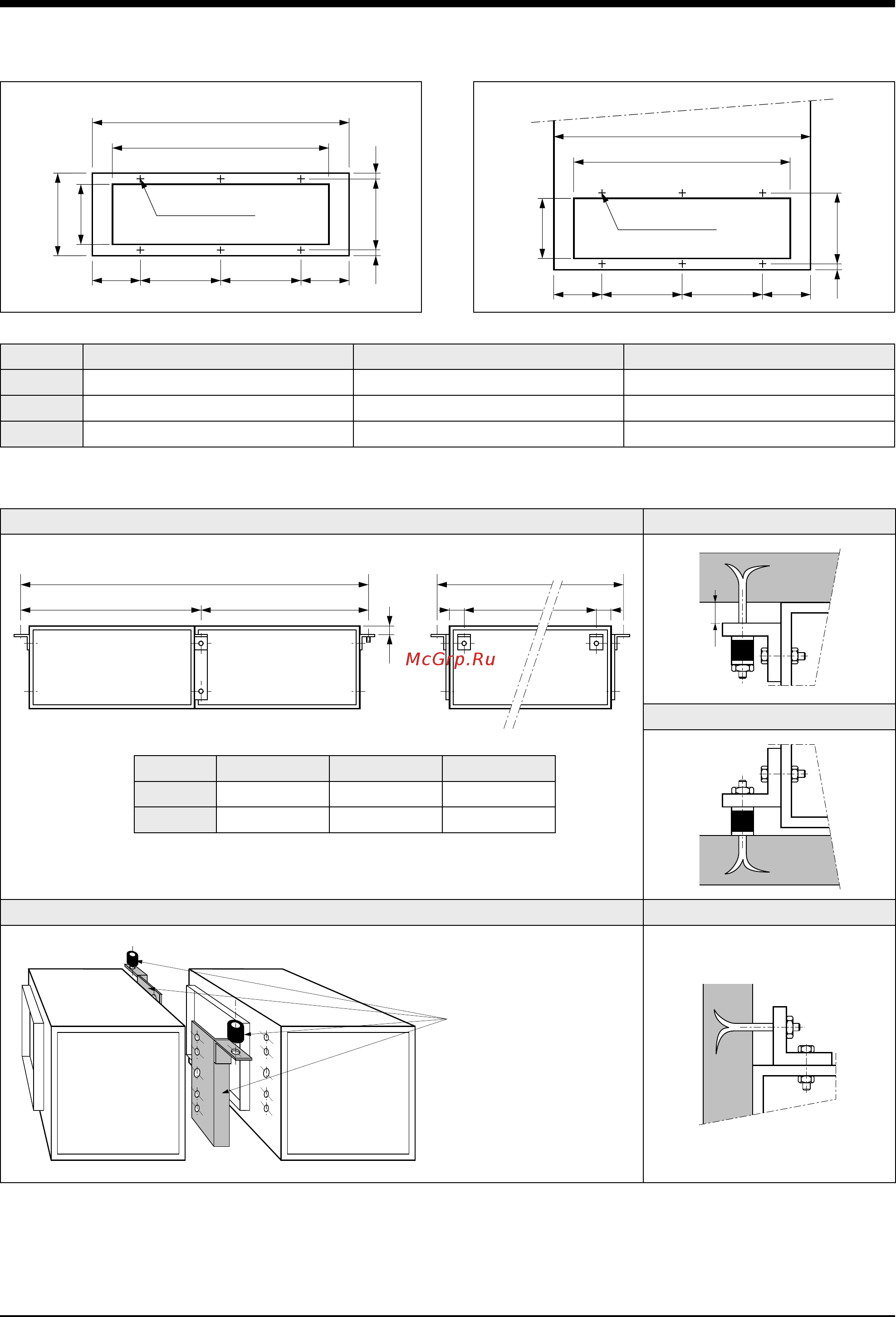

BRACKETS ARRANGEMENTS CEILING MOUNTING
20
800 740
1540
B51 51
A
20
FLOOR MOUNTING
ASSEMBLING SUPPORTS FOR DOUBLE SECTION UNITS WALL MOUNTING
Sizes 1.39 2.69 3.99
A 992 1310 1660
B 660 1048 1398
Supplied by manufacturer
A
B
241 C C 241
340 1515
370
323
Hole Ø 3.2 mm
A
B
241 C C 241
34015
323
Hole Ø 3.2 mm
Sizes 1.39 2.69 3.99
A 585 973 1323
B 762 1150 1500
C 140 334 509
Sealing brackets are not supplied by manufacturer.
Inlet and Bracket Arrangements
