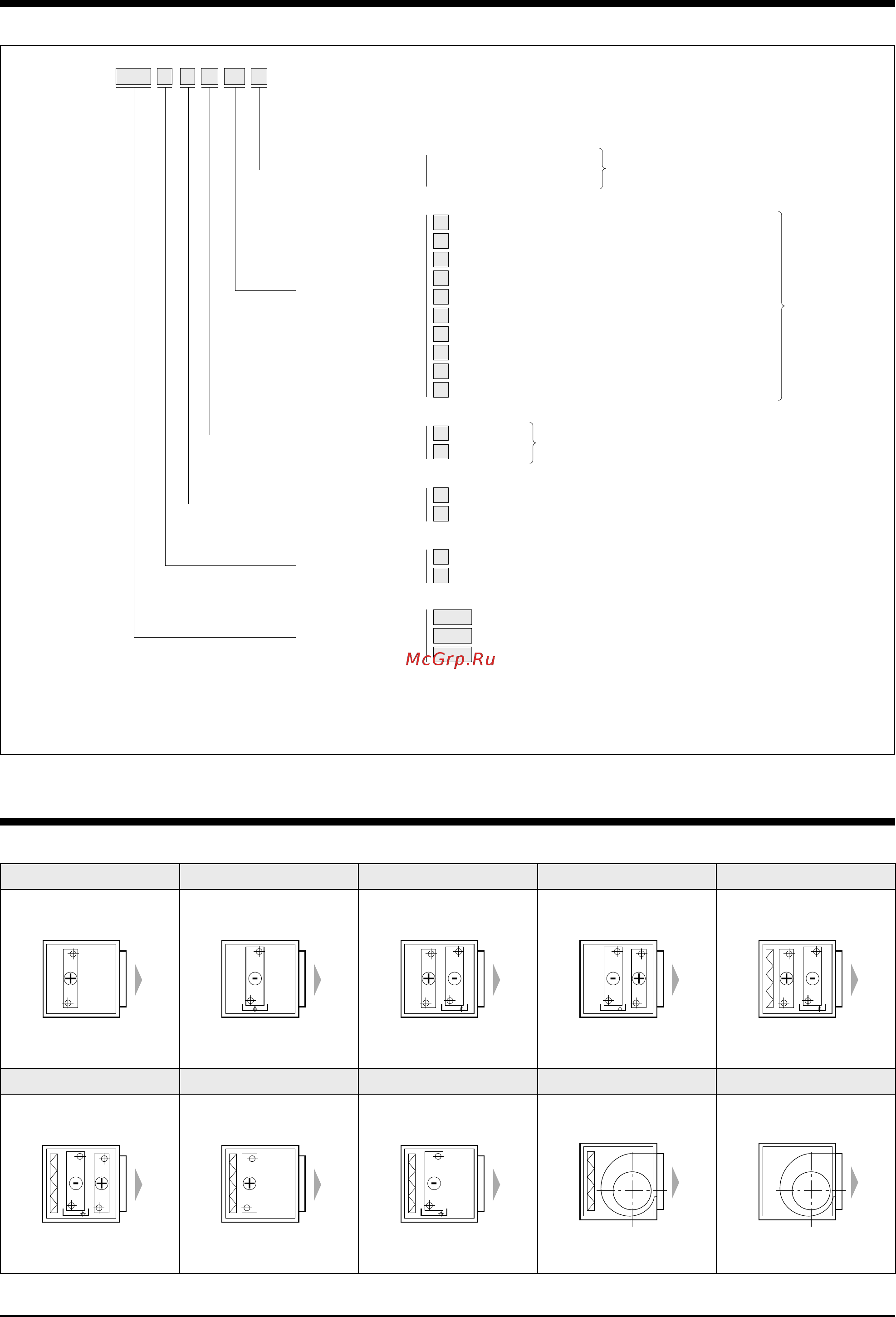

Unit Coding
WESPAK 2.69 H G 49 A
Position
Air outlet A - B - C
Air inlet D - E
Unit size
1.39
2.69
3.99
For two-section
air handling units
only
Identification
of basic sections
* see notes
0
1
2
3
4
5
6
7
8
9
Heating coil
Cooling coil
Heating coil + cooling coil
Cooling coil + heating coil
Filter + heating coil + cooling coil
Filter + cooling coil + heating coil
Filter + heating coil
Filter+ cooling coil
Filter + fan
Fan
:
:
:
:
:
:
:
:
:
:
Arrangements
from inlet to
outlet
Connection
side
G
D
Left
Right
:
:
When viewing the unit from above,
in the direction of air flow
Structure
M
P
Muti-section unit
Single section unit
:
:
:
:
:
1 impeller
2 impellers
2 impellers
Arrangement
H
V
Horizontal
Vertical
:
:
M
Section 0 Section 1 Section 2 Section 3 Section 4
Section 5 Section 6 Section 7 Section 8 Section 9
Coding of Basic Sections
* Notes :
- Double-digit references are given for two-section units only.
- Cooling coils : chilled water or direct expansion.
- Heating coils : hot water or electric.
