Page 7
Mounting Possibilities (continued)

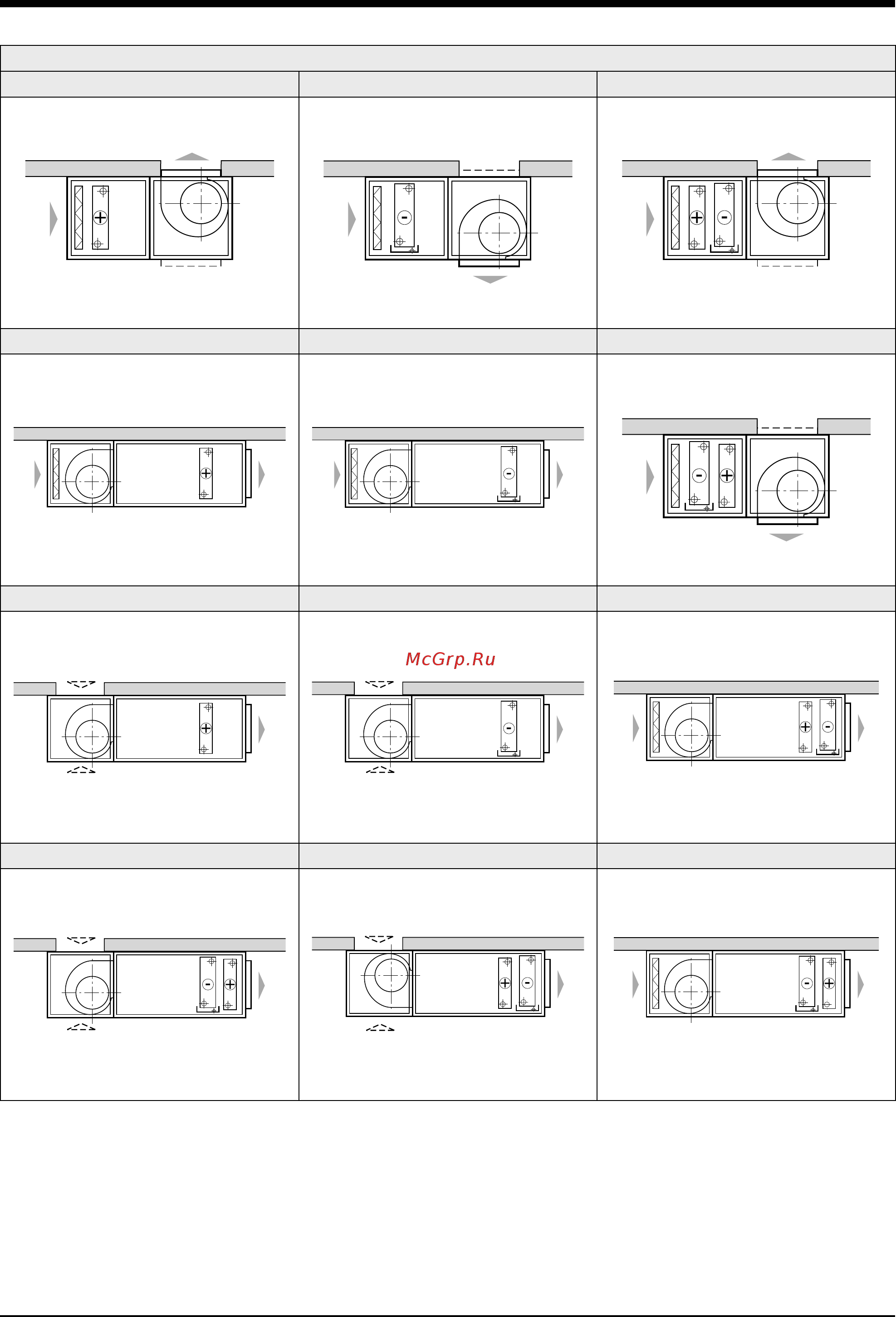

DOUBLE SECTION UNITS (HORIZONTAL)
Arrangement HM69A Arrangement HM79B Arrangement HM49A
B
A
A
B
B
A
Arrangement HM80 Arrangement HM81 Arrangement HM59B
B
A
Arrangement HM90D Arrangement HM91D Arrangement HM82
D
E
E
D
Arrangement HM93D Arrangement HM92E Arrangement HM83
D
E
E
D
See page 20 for overall dimensions and page 26 for weights.
