PROTECTION AGAINST FREEZING
On all appliances, anti-freezing protection is provided by a temperature probe connected to the regulator. This
shuts down the PAC if the water outlet temperature is below 8°C for 5 seconds.
A fault code 111110000 (5 flashes) is then generated.
If the temperature rises to above 15°C for 1 minute, the fault is automatically cancelled and the PAC is authorised
to restart.
Note:
If 3 default codes 111110000 (5 flashes) are generated in less than one hour, then the regulator switches the PAC
to total safety shutdown mode.
Am additional protection is assured by a differential pressostat. This safety device is fitted on the plate exchanger
water side in order to guarantee that water circulates in the installation on one hand, and that there is an adequate
minimum water flow on the other hand.
Note:
The "differential pressostat" provides "total safety shutdown" the first time it is activated.
It can be reset manually by switching off the mains supply to the appliance.
The alarm fault code generated is code 100000000 (1 flash).

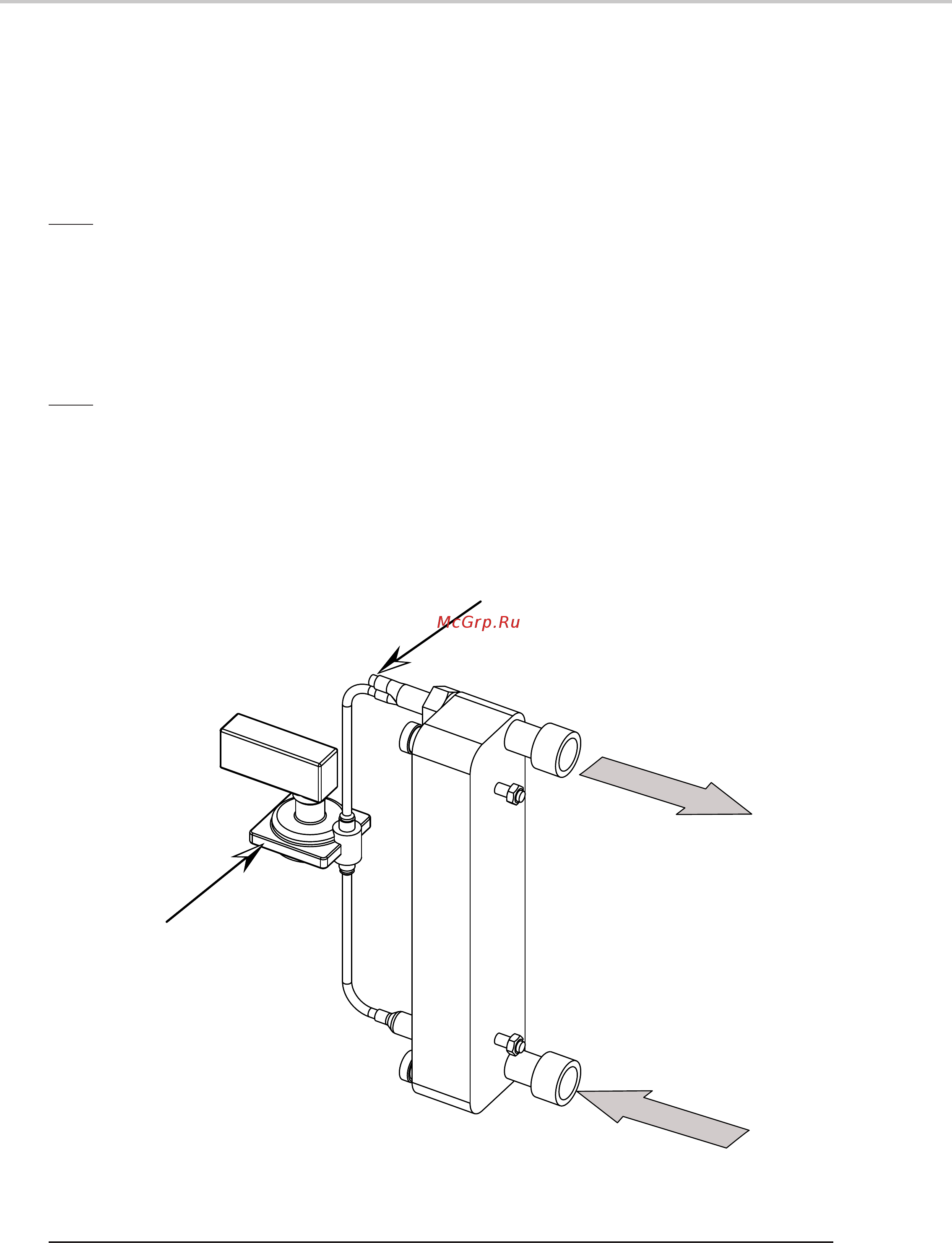

OUTLET WATER
TEMPERATURE SENSOR
WATER CIRCUIT INLET / OUTLET
DIFFERENTIAL PRESSOSTAT
WATER OUTLET
WATER INLET
