23
1 2 43
RS 48512VGND
HRW 1 HRW 2
4321
RS 485
12VGND
1 2 3
12V
4
GND
RS 485
HRW 3
4321
30m MAXI
100m MAXI
CARTE
ADAPTATEUR
RCL
CARTE
STORM
CARTE
ADAPTATEUR
CARTE
STORM
CARTE
ADAPTATEUR
CARTE
STORM
RCL ONLY

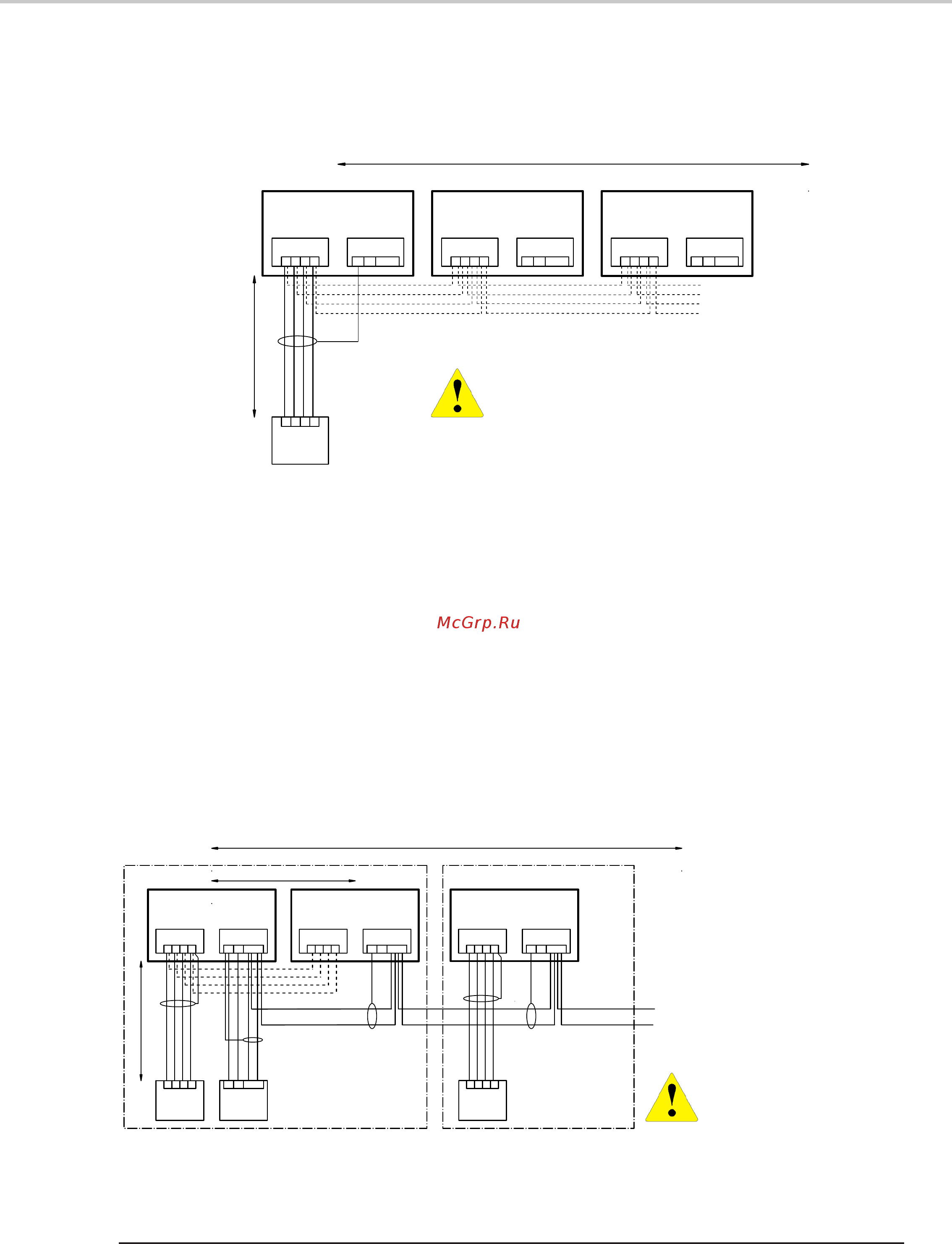

10 appliances can be connected to a single RCL remote control module.
The maximum distance between the RCL and the first unit is 30 metres.
The maximum distance between the RCL and the furthest unit is 100 metres.
Use screened twisted pair telephone
wire with a section of between 0.4
and 0.65 mm² for wiring.
100 m maximum between the
first and last appliances.
30 m maximum
between the
RCL and the first
appliance.
10 HRW
MAXIMUM
µBMS SUPERVISION MODULE
The µBMS supervision module / micro supervisor can be connected to a maximum of 32 appliances and enables
independent control of up to 15 independent zones. Each zone has its own ON/OFF programming as well as
customised set temperature settings.
The programming (ON/OFF, set temperature, Mode, etc.) of the zone 0, enables the µBMS supervision module
to send the command to all the units at the same time.
The maximum distance between the RCL and the first unit is 30 metres.
The maximum distance between the RCL and the furthest unit is 100 metres.
The maximum distance between the µBMS supervision module and the first unit is 30 metres.
The maximum distance maximum between the µBMS supervision module and the furthest unit is
1,000 metres.
CARTE
ADAPTATEUR
1 2 43
CARTE
STORM
RS 48512V
GND
HRW 1 HRW 2
4321
1 2 3
4
HRW 3
RCL
4321
30m MAXI
1000m MAXI
CENTRALE DE
RCL
1 2
3 4
SUPERVISION
µBMS
100m MAXI
ZONE N°1
ZONE N°2
CARTE
ADAPTATEUR
CARTE
ADAPTATEUR
CARTE
STORM
CARTE
STORM
RS 48512V
GND
RS 48512V
GND
RS 48512V
GND
32 HRW
MAXIMUM
1000 m maximum between
the first and last appliances.
Note: When the µBMS supervision is used, all the units must have an address (Refer to "Addressing Procedure").
Use screened twisted pair
telephone wire with a section
of between 0.4 and 0.65
mm² for wiring.
