20
µBMS
MIU

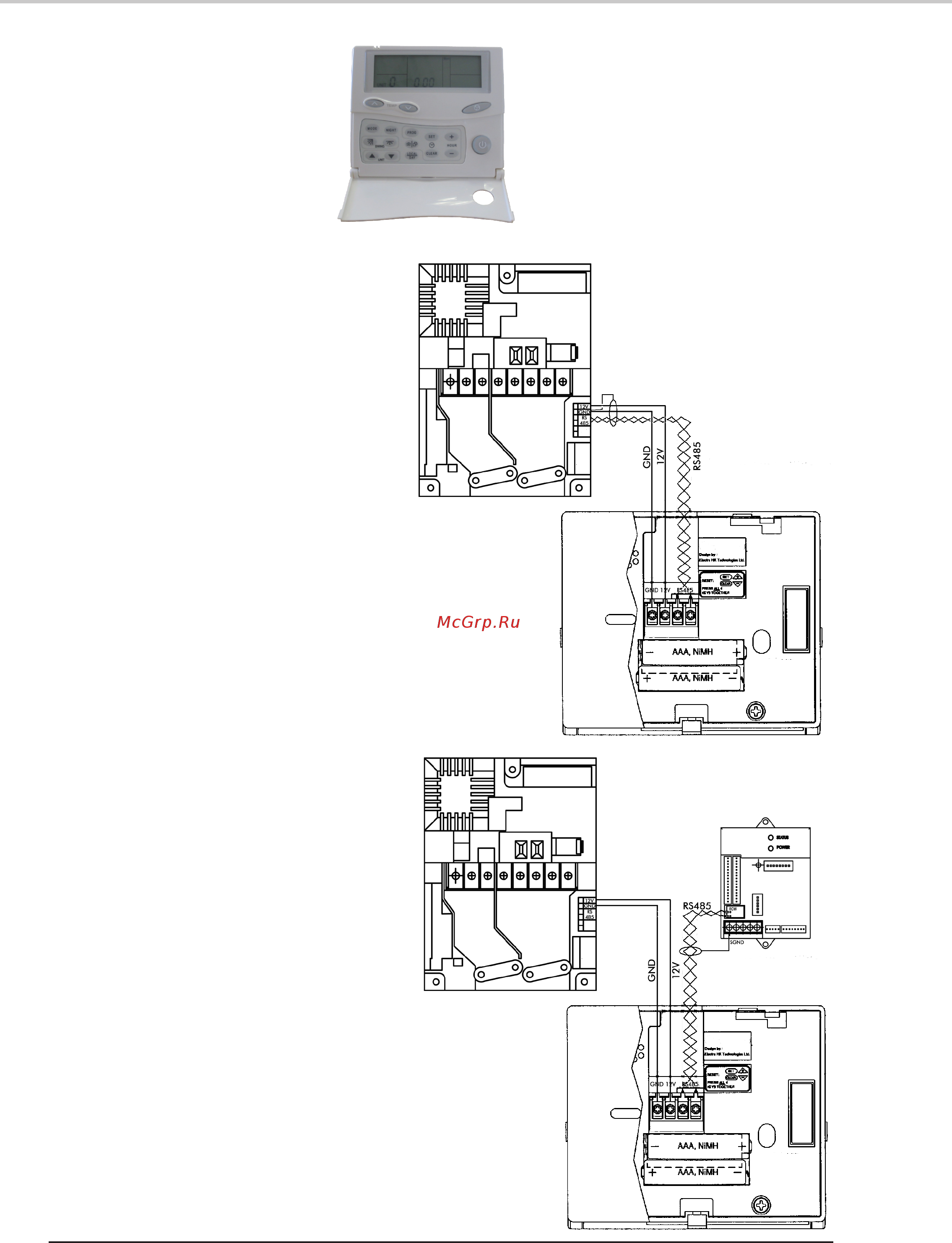

If the appliance is not equipped with an MIU board,
the µBMS control module must be connected in
accordance with the diagram below.
Use screened twisted pair telephone wire with a
section of between 0.4 and 0.65 mm² for wiring
the control modules.
Refer to the following chapter for detail of the
appliances’ addressing
µBMS, STORM AND MIU
µBMS AND STORM
If the appliance is equipped with an MIU board,
the µBMS control module must be connected in
accordance with the diagram below.
Use screened twisted pair telephone wire with a
section of between 0.4 and 0.65 mm² for wiring
the control modules.
Refer to the following chapter for detail of the
appliances’ addressing
