19

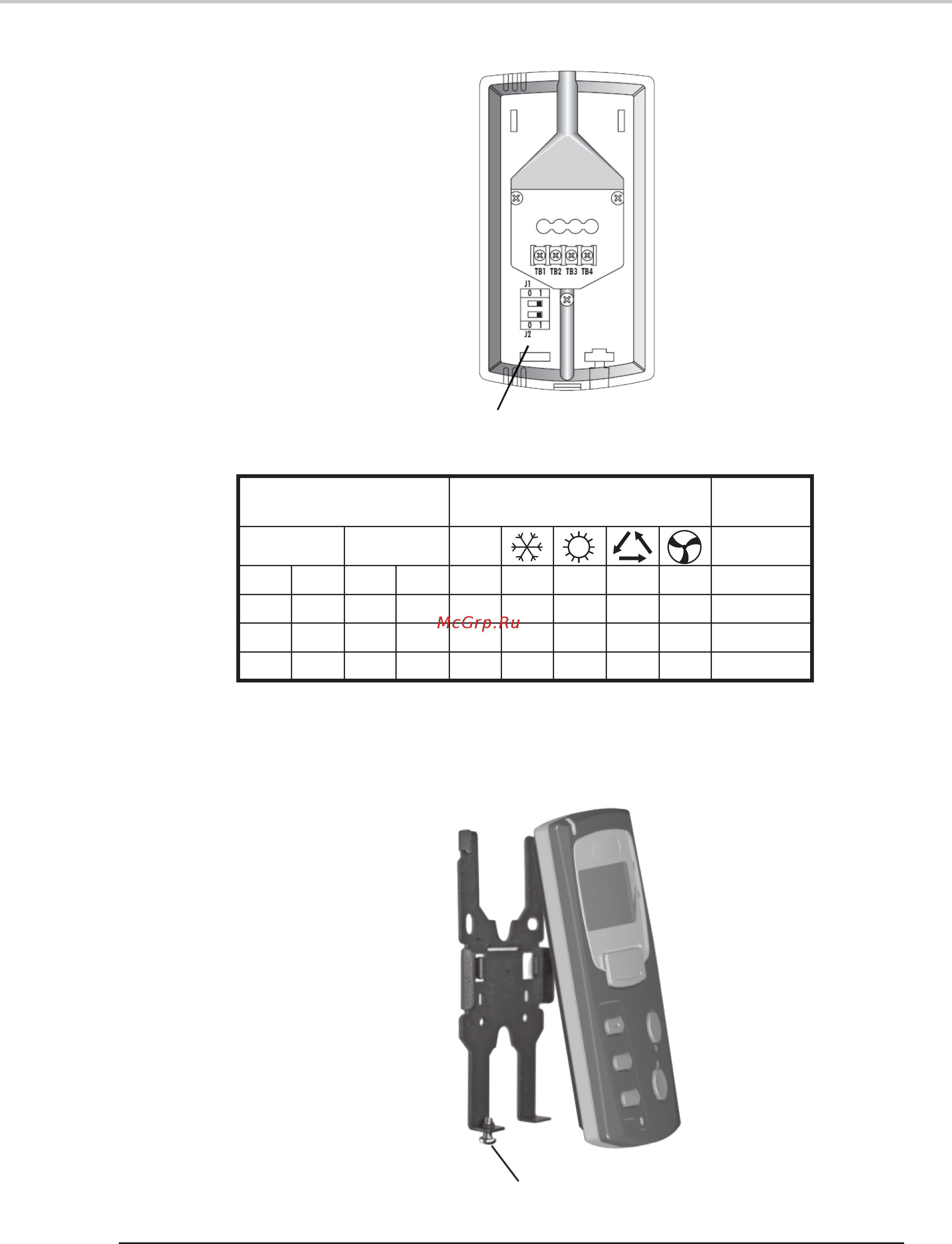

Set the DIP switches marked J1 and J2 in accordance with your configuration nd the modes that are accessible.
Dips switches J1 and J2 for
parameterisation
Clip the RCL control onto the support bracket.
Replace the lower screw in such a way that the RCL control is held firmly in place on the support bracket
RCL control recommended
setting
Accessible modes PLUG
Dip J1 Dip J2
0 1 0 1 Off Cool Heat Auto Fan
X X X X X ST
X X X X X RC - RH - SH
X X X X X X X RC - RH - SH
Lower screw
