21

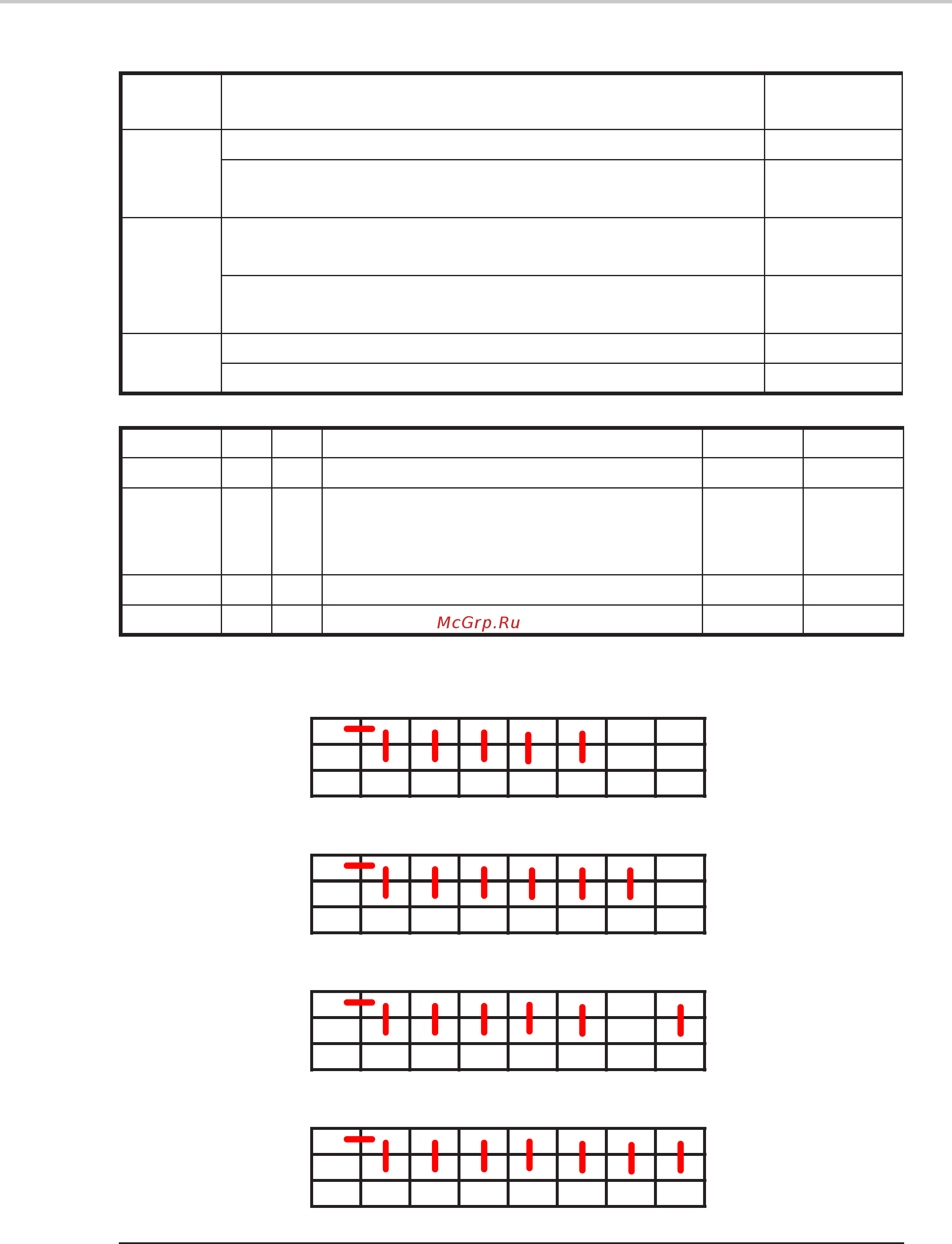

APPLIANCE CONFIGURATION
CLIENT SETTINGS
FACTORY CONFIGURATION
PLUG IDENTIFICATION
Jumper Configuration FACTORY
setting
J5
Closed = ambient temperature is measured at the RCL.
Closed
Open = ambient temperature is measured with the
Return sensor (RT) located on the appliance.
J8
Closed = the fan is controlled via the compressor and the
ICT sensor in Heating mode.
Closed
Open = the fan operates continuously in Heating mode,
except in OFF mode.
J3
Closed = ON / OFF with restarting via the RCL possible Closed
Open = Remote ON/OFF closed = mode Off
Type J2 J6 Description Name Colour
RC 0 0 Cooling and thermodynamic Heating PAC-RC Black
SH 0 1
Thermodynamic Cooling +
thermodynamic Heating or electric
heating depending on appliance return
PAC-SH White
ST 1 0 Cooling only PAC-ST Red
RH 1 1 Cool + heat by electric heat PAC-RH Blue
PLUG MODEL HRW-RC
J1 J7 J5 J4 J3 J8 J6 J2
PLUG MODEL HRW-SH
J1 J7 J5 J4 J3 J8 J6 J2
PLUG MODEL HRW-ST
J1 J7 J5 J4 J3 J8 J6 J2
PLUG MODEL HRW-RH
J1 J7 J5 J4 J3 J8 J6 J2
