Airwell HRW 096 [26/42] Addressing procedure
![Airwell HRW 096 [26/42] Addressing procedure](/views2/1409405/page26/bg1a.png)
24

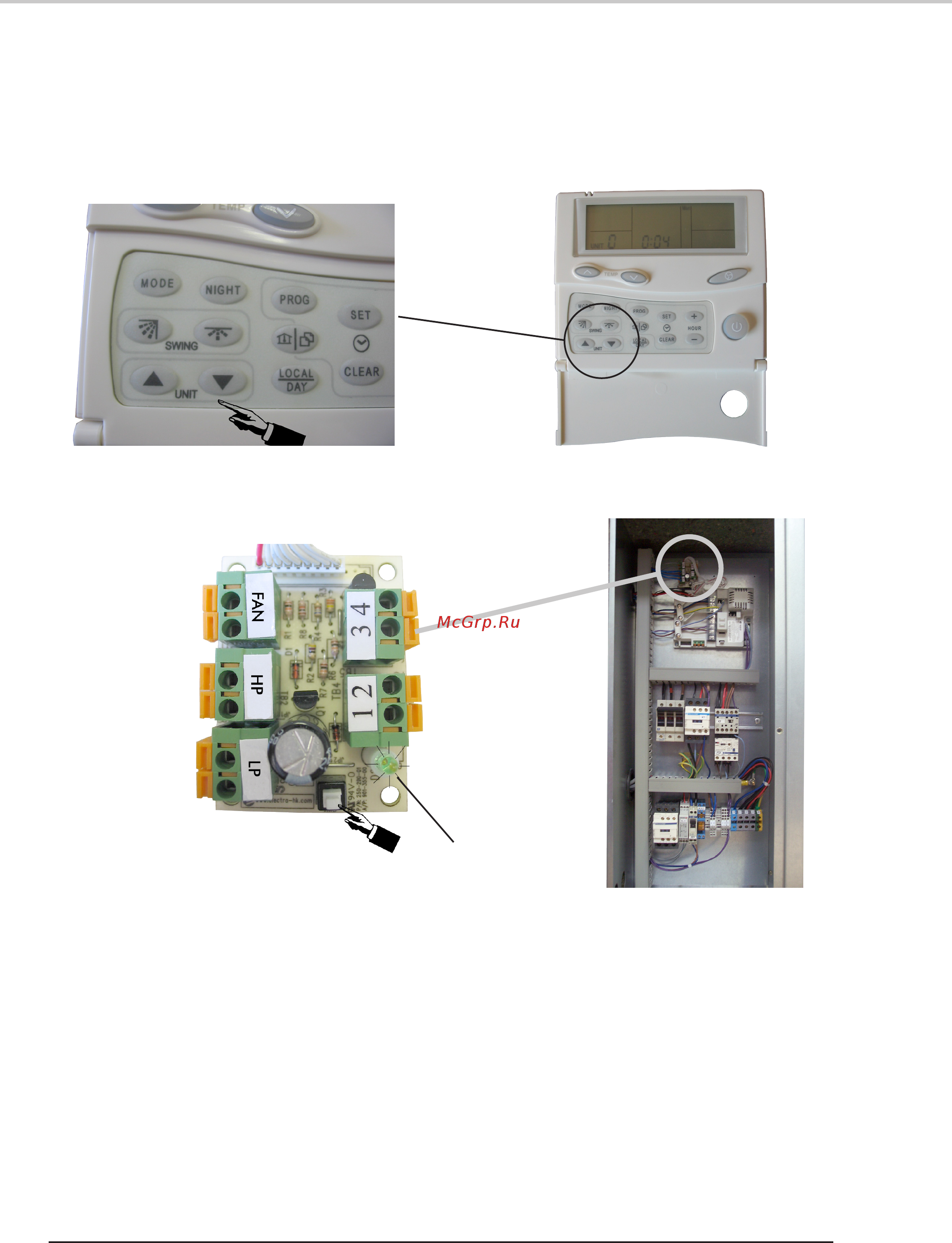

ADDRESSING PROCEDURE
When the µBMS supervision module is connected, each appliance must be allocated an address in accordance
with the procedure described below.
Connect the supervision module.
1. Switch on the mains power supply to all the appliances.
2. Select unit 1 with the UP and DOWN arrows on the µBMS.
3. When unit N°1 is selected, press the key on the adapter board until the LED flashes.
4. Press the ON/OFF key.
5. Address N°1 has now been memorised in the first appliance.
6. For the second appliance, press the ON/OFF key then select unit N°2 with the UP and DOWN arrows
on the µBMS , then restart the procedure described above.
7. When the addressing of all the units is complete, switch off the mains power supply and then switch
it back on.
Note: It is possible to programme several appliances with the same address.
3N400V ~ 50Hz
LED
