7
INSTALLATION
UNIT LOCATION
1 - Install the unit in a location allowing easy removal of the filter and the access panels
to the electrical box/compressor and fan by leaving sufficient free space for servicing
personnel to perform maintenance and repairs. Leave sufficient space for the water,
electricity and duct connections.
2 - The installer must ensure that access under the suspended ceiling is provided, and that sufficient
space is provided for the suspension angle brackets, the duct attachment collars and the water and
electrical connections.
3 - Provide space under the unit for a siphon on the condensates drainage pipe. Do not install the unit
on top of pipe work.
4 - Each unit is suspended from the ceiling on four threaded rods.
Warning! Do not use rods of a diameter smaller than M10. The rods must be solidly anchored to
the ceiling and to the ceiling joists.

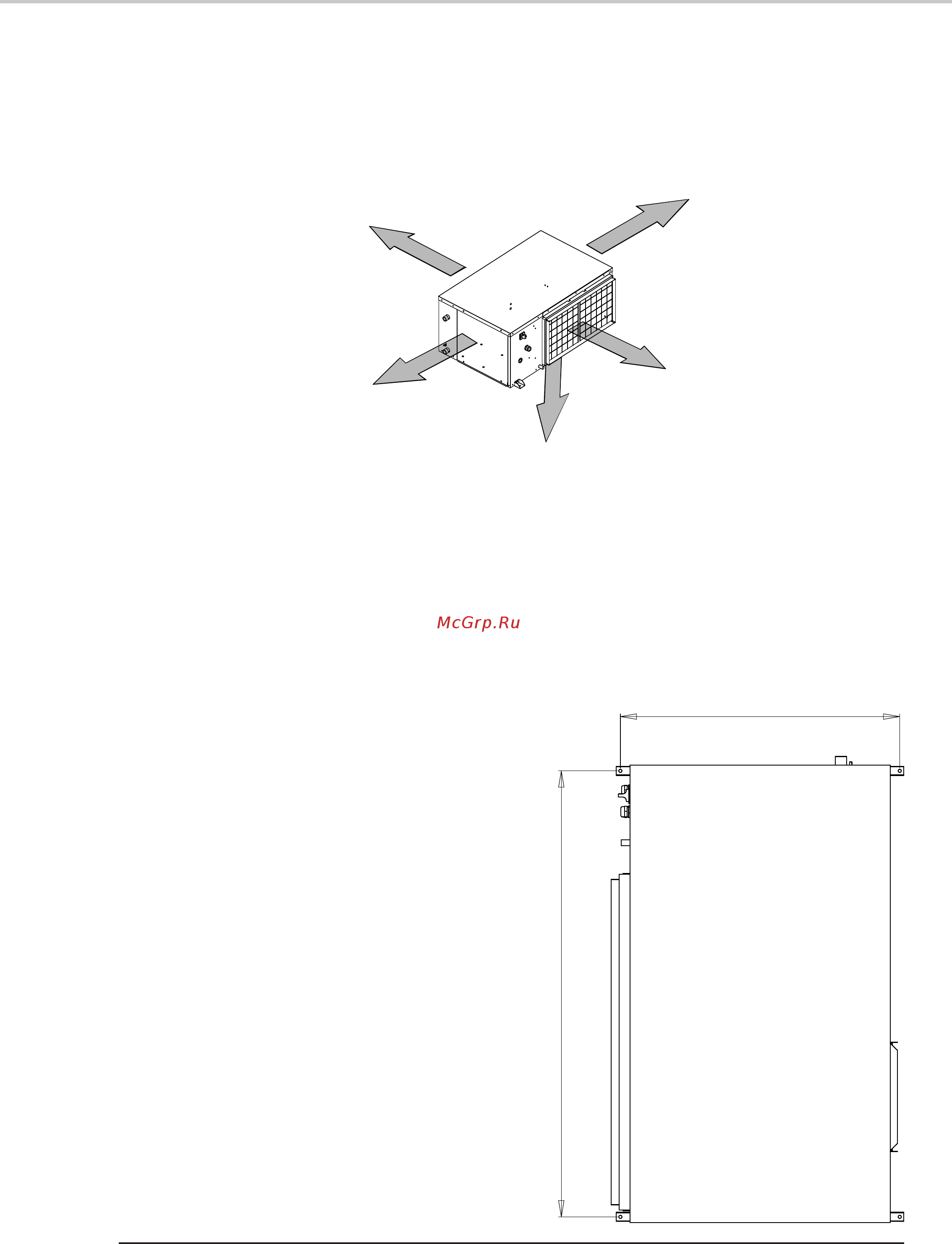

5 - Arrange the threaded rods in accordance
with the dimensions stated below. The use
of nuts and locknuts is recommended for
attaching the suspension rods to the unit
as the unit’s vibrations may loosen a single
nut. The installer is liable for any damage in
the event of this recommendation not being
followed.
6 - To facilitate drainage, the unit must
be angled in both planes towards the
condensates drainage pipe.
600 mm
600 mm
600 mm
600 mm
200 mm
