105D-Link DIR-826L User Manual

Section 3 - Conguration

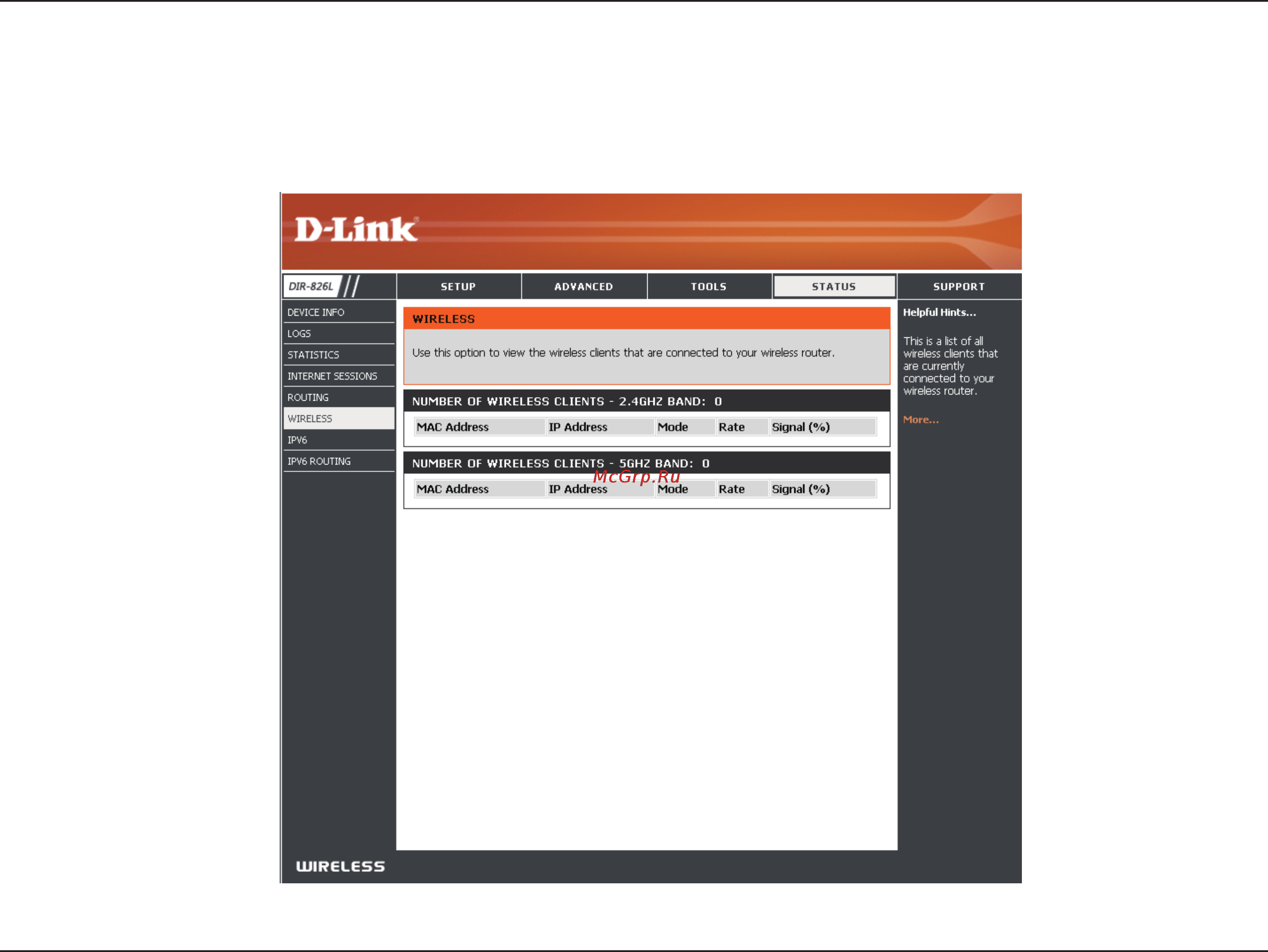

The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and

MAC address of the connected wireless clients.
