D-Link DIR-826L [42/142] Wireless settings

38D-Link DIR-826L User Manual

Section 3 - Conguration

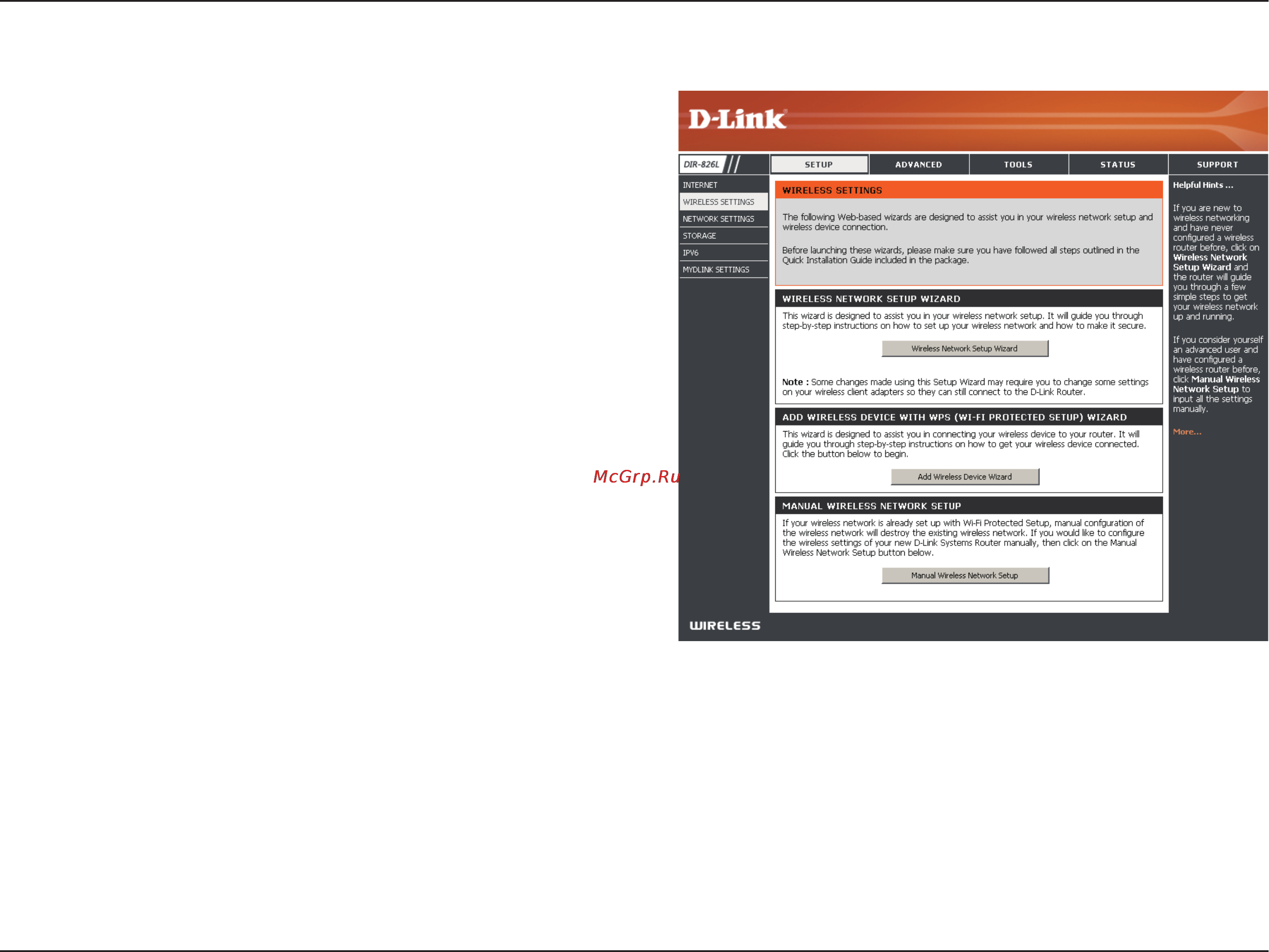

Wireless Settings

If you want to congure the wireless settings on your router using

the wizard, click Wireless.Security.Setup.Wizard.and refer to

page 42.

Click Add.Wireless.Device.with.WPS if you want to add a wireless

device using Wi-Fi Protected Setup (WPS) and refer to page 44.

If you want to manually congure the wireless settings on your

router click Manual Wireless.Network.Setup.and refer to the

next page.
