78D-Link DIR-826L User Manual
Section 3 - Conguration

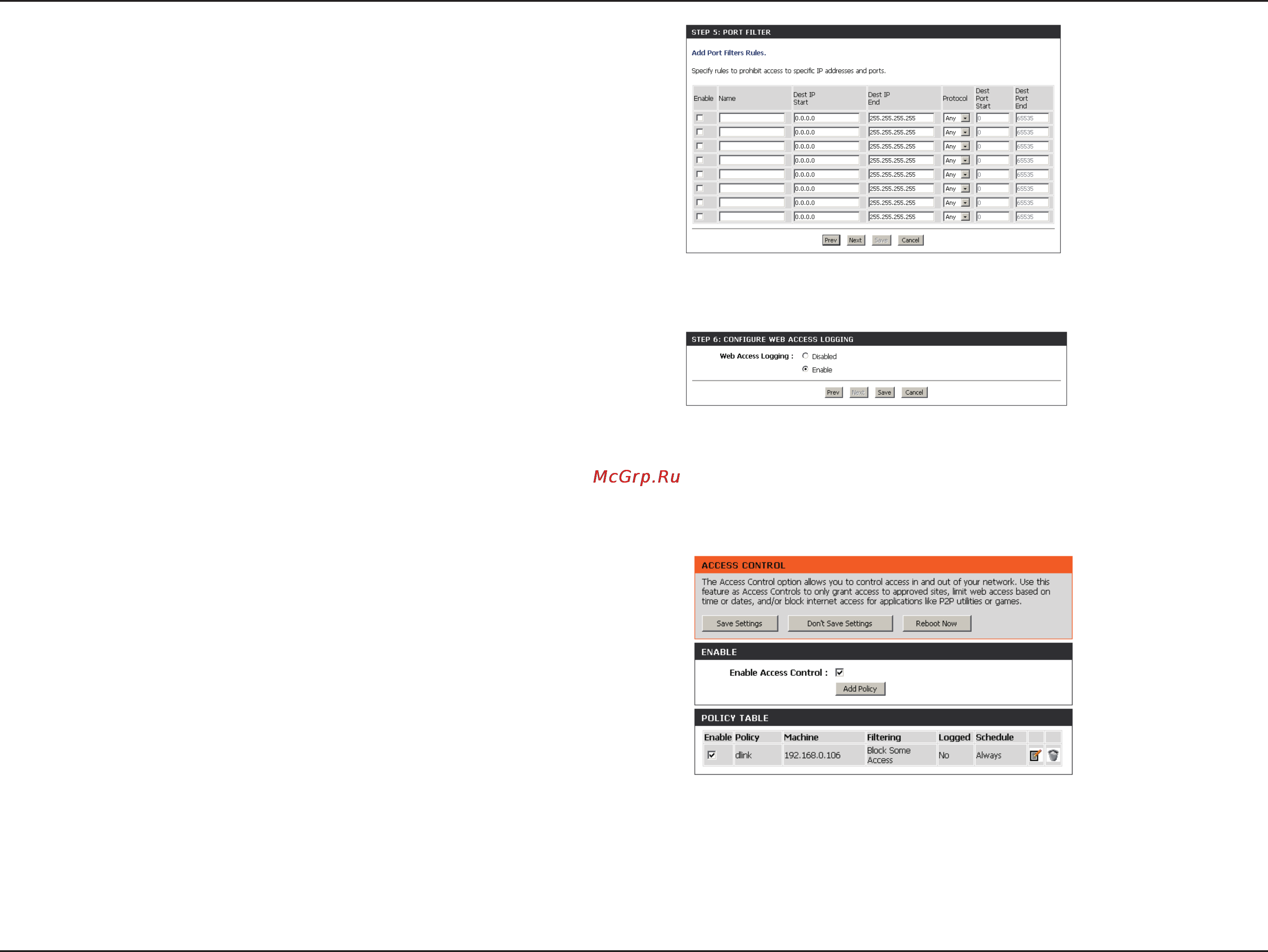

Enter the rule:
Enable - Check to enable the rule.
Name - Enter a name for your rule.
Dest.IP.Start - Enter the starting IP address.
Dest.IP.End - Enter the ending IP address.
Protocol - Select the protocol.
Dest.Port.Start - Enter the starting port number.
Dest.Port.End - Enter the ending port number.
To enable web logging, click Enable.
Click Save to save the access control rule.
Your newly created policy will now show up under Policy.Table.
