D-Link DIR-826L [83/142] Website filters
![D-Link DIR-826L [83/142] Website filters](/views2/1044705/page83/bg53.png)
79D-Link DIR-826L User Manual
Section 3 - Conguration
Add Website
Filtering Rule:
Website URL/
Domain:

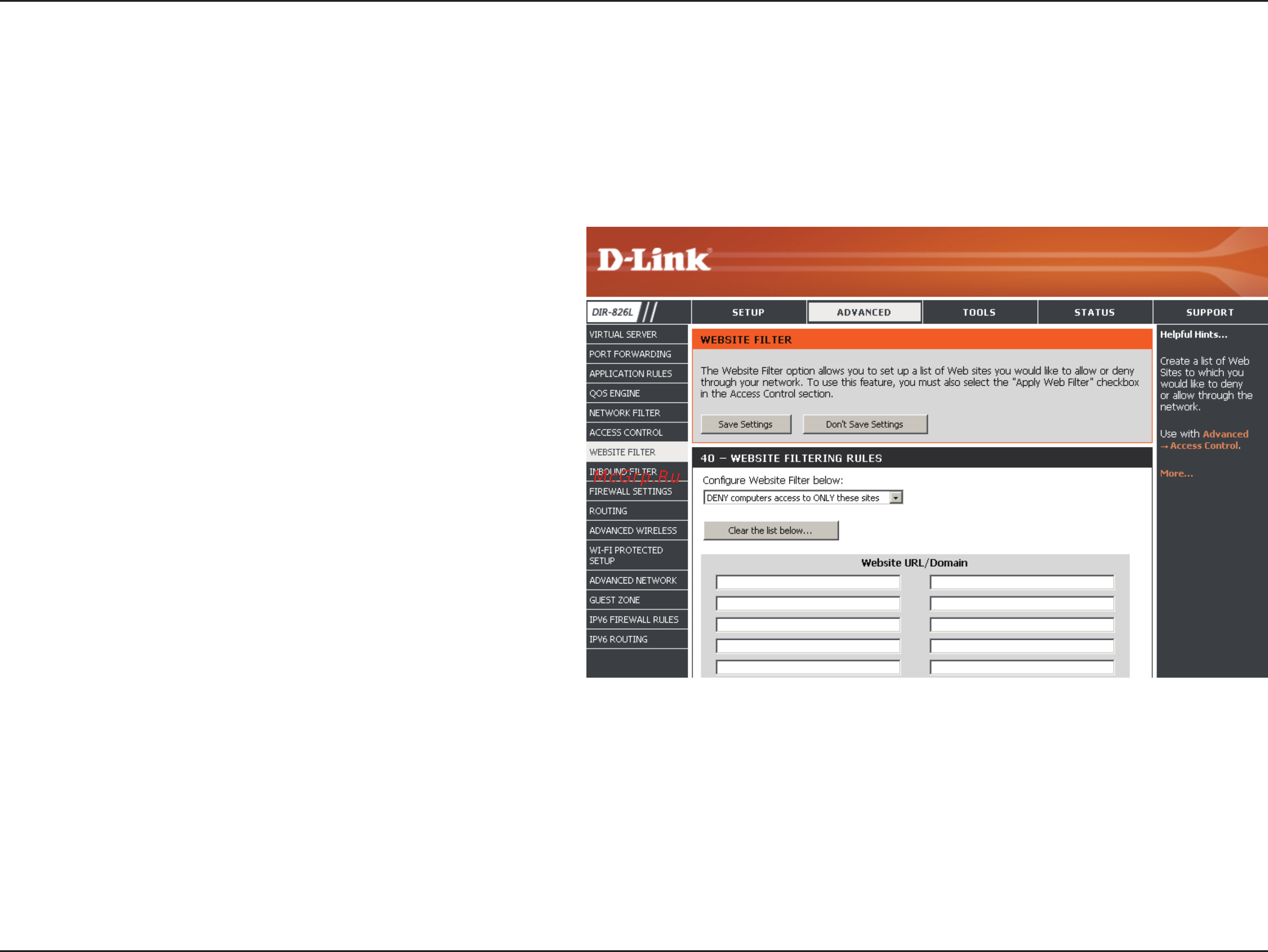

Website Filters
Select either DENY.computers.access.to.ONLY.
these.sites or ALLOW.computers.access.to.ONLY.
these.sites.
Enter the keywords or URLs that you want to allow
or block. Click Save.Settings.
Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network.
To use this feature select to Allow or Deny, enter the domain or website and click Save.Settings. You must also select Apply.
Web.Filter under the Access Control section.
