D-Link DIR-826L [48/142] Add wireless device with wps wizard

44D-Link DIR-826L User Manual

Section 4 - Security

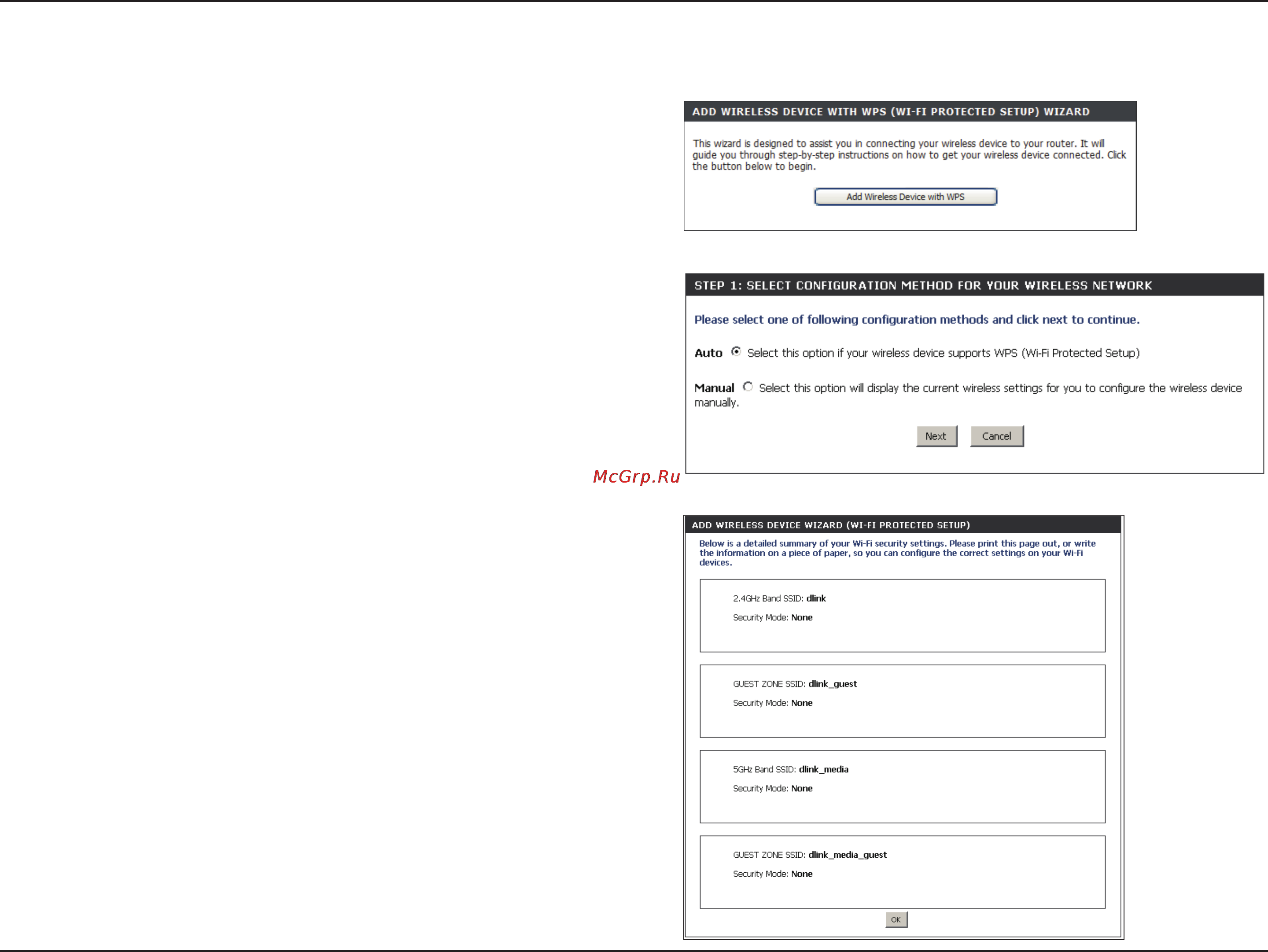

From the Setup > Wireless.Settings screen, click Add.Wireless.

Device.with.WPS.

Add Wireless Device with WPS Wizard

If you select Manual, a settings summary screen will appear. Write

down the security key and enter this on your wireless clients. Click

OK to nish.

Select Auto to add a wireless client using WPS (Wi-Fi Protected

Setup) and then click Next. Skip to the next page.
